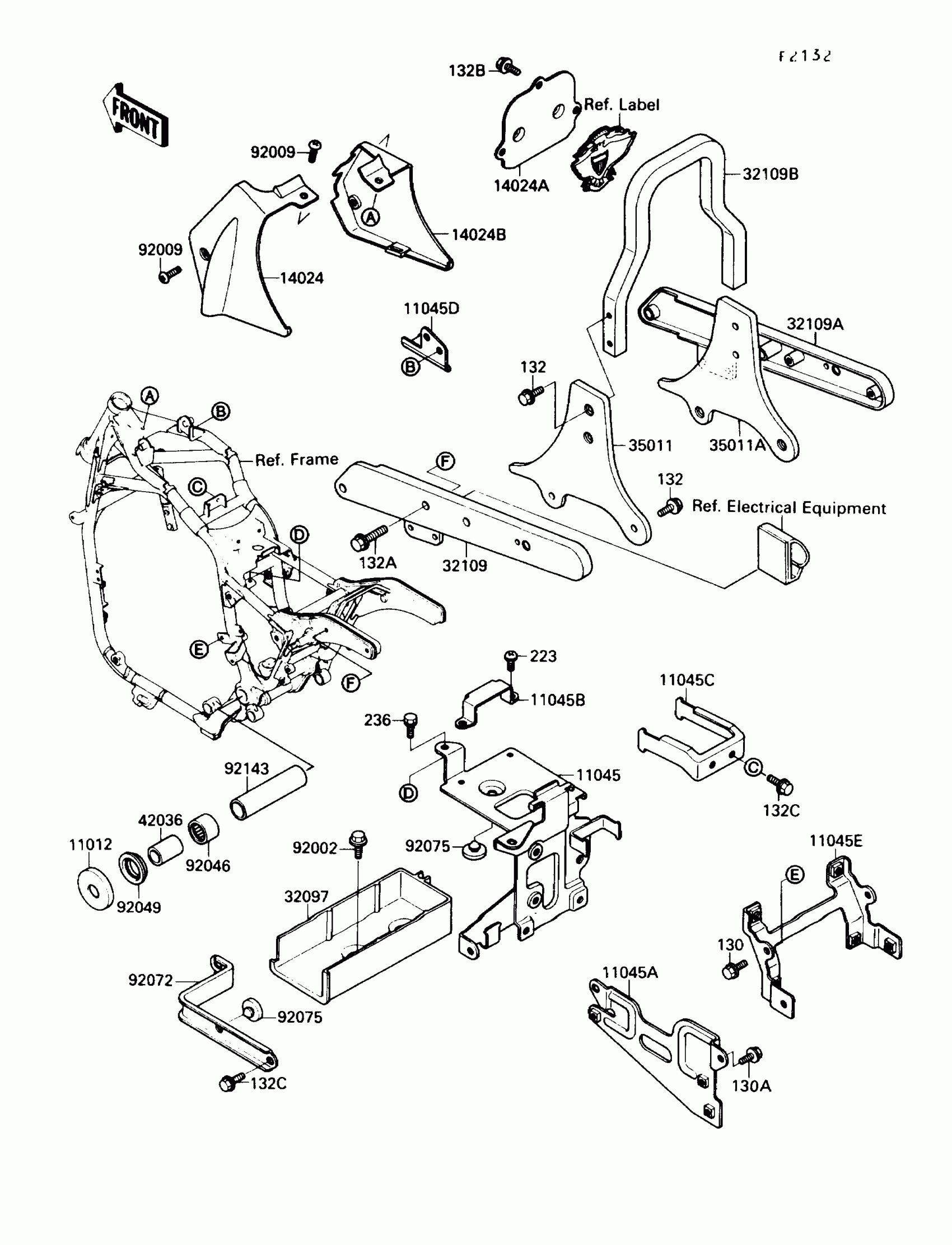

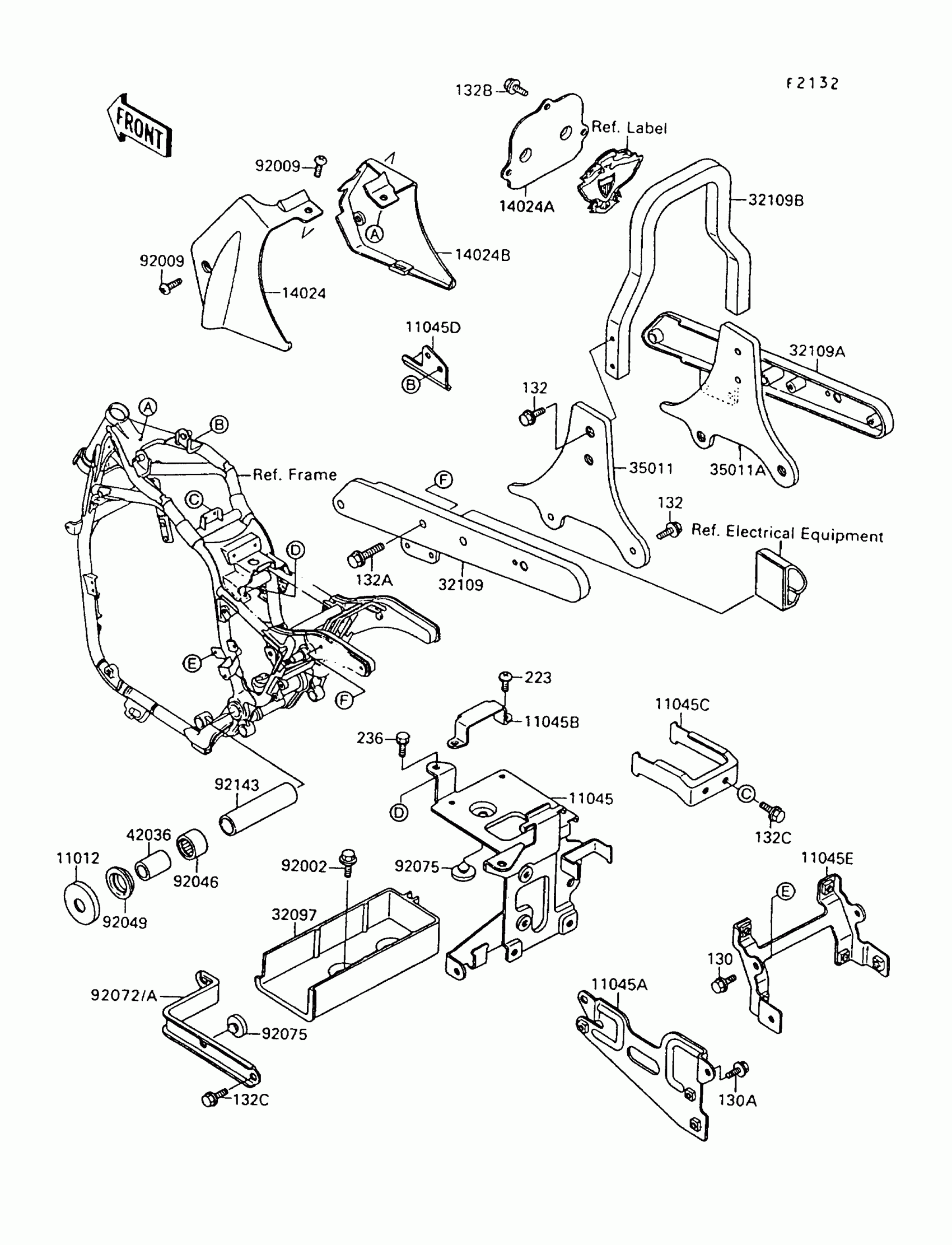

Find the part on the Battery Case diagram for your 1991 Kawasaki Vulcan 88, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1991 Kawasaki Vulcan 88 Battery Case Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,SWING ARM

11012-1575

1

$8.24

In stock

11045

BRACKET,ELECTRIC BASE

11045-1451

1
Out of stock

11045A

BRACKET,IGNITER

11045-1452

1
Out of stock

11045B

BRACKET,JUNCTION BOX

11045-1453

1
Out of stock

11045C

BRACKET,FUEL PUMP

11045-1454

1
Out of stock

11045D

BRACKET,FUEL FILTER

11045-1455

1
Out of stock

11045E

BRACKET,IGNITION COIL

11045-1622

1
Out of stock

14024

COVER,HEAD GUSSET,LH

14024-1457

1
Out of stock

14024A

COVER,SEAT

14024-1459

1
Out of stock

14024B

COVER,HEAD GUSSET,RH

14024-1682

1
Out of stock

32097

CASE-BATTERY

32097-1130

1
Out of stock

32109

GRIP-FRAME,LWR,LH

32109-1157

1
Out of stock

32109A

GRIP-FRAME,LWR,RH

32109-1158

1
Out of stock

32109B

GRIP-FRAME,UPP

32109-1159

1
Out of stock

35011

STAY,FRAME GRIP,LH

35011-1336

1
Out of stock

35011A

STAY,FRAME GRIP,RH

35011-1337

1
Out of stock

42036

SLEEVE,17.1X25X40

42036-1213

1
Out of stock

92002

BOLT,6X12

92002-1721

1
Out of stock

92009

SCREW,5X10

92009-1335

1
Out of stock

92046

1

$23.73

In stock

92049

SEAL-OIL,MHA25X33X5.7F

92049-1166

1
Out of stock

92072

BAND,BATTERY

92072-1218

1
Out of stock

92075

DAMPER,RUBBER

92075-078

1

$3.49

In stock

92143

1

$10.83

In stock

130

BOLT-FLANGED,6X14

130C0614

1
Out of stock

130A

BOLT-FLANGED

130D0610

1
Out of stock

132

1

$3.75

In stock

132A

1

$3.72

In stock

132B

BOLT-FLANGED-SMALL

132G0612

1
Out of stock

132C

BOLT-FLANGED-SMALL,6X10

132H0610

1
Out of stock

223

SCREW-PAN-WS-CROS

223B0510

1
Out of stock

236

SCREW-PAN-WSP-CROS

236D0612

1
Out of stock
