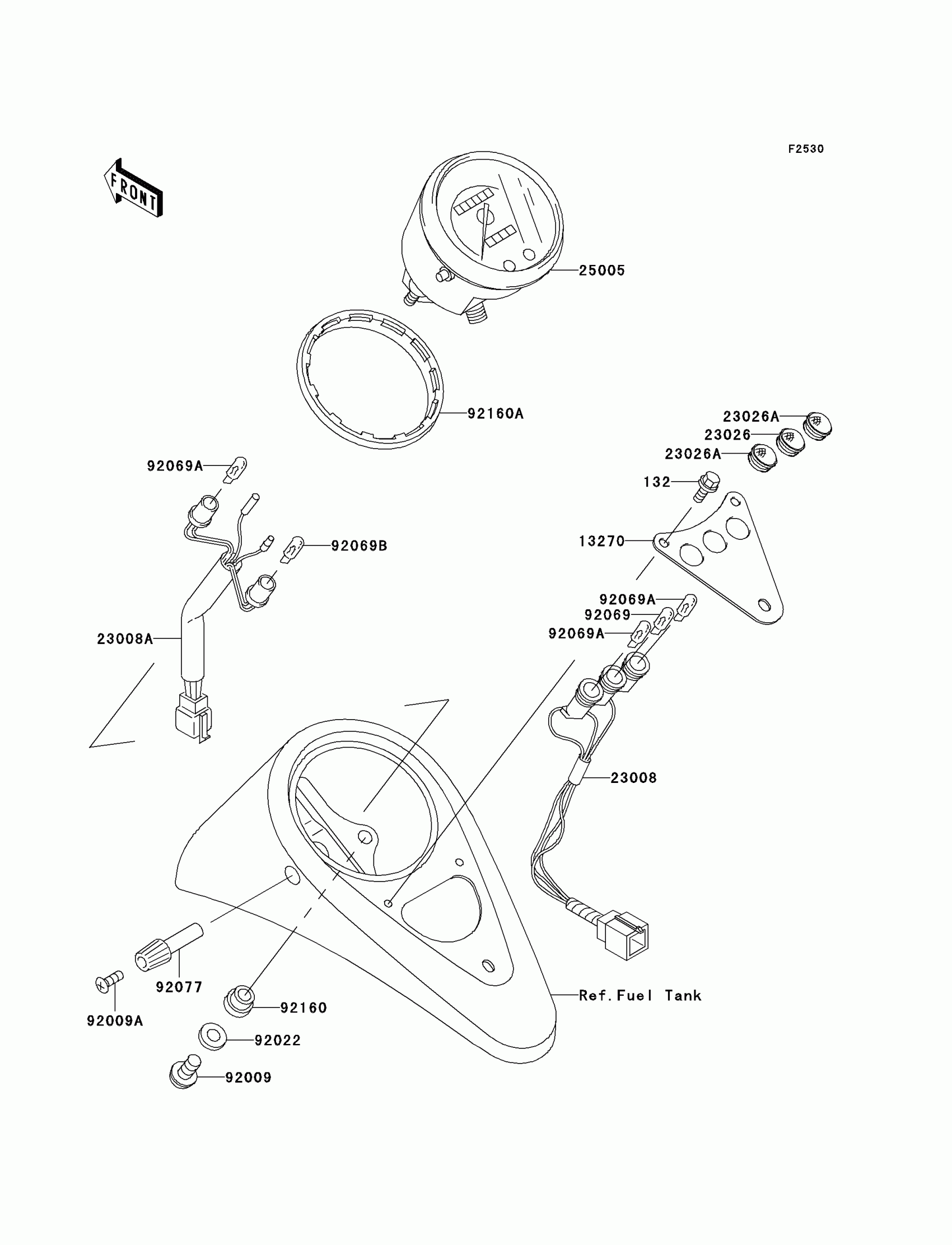

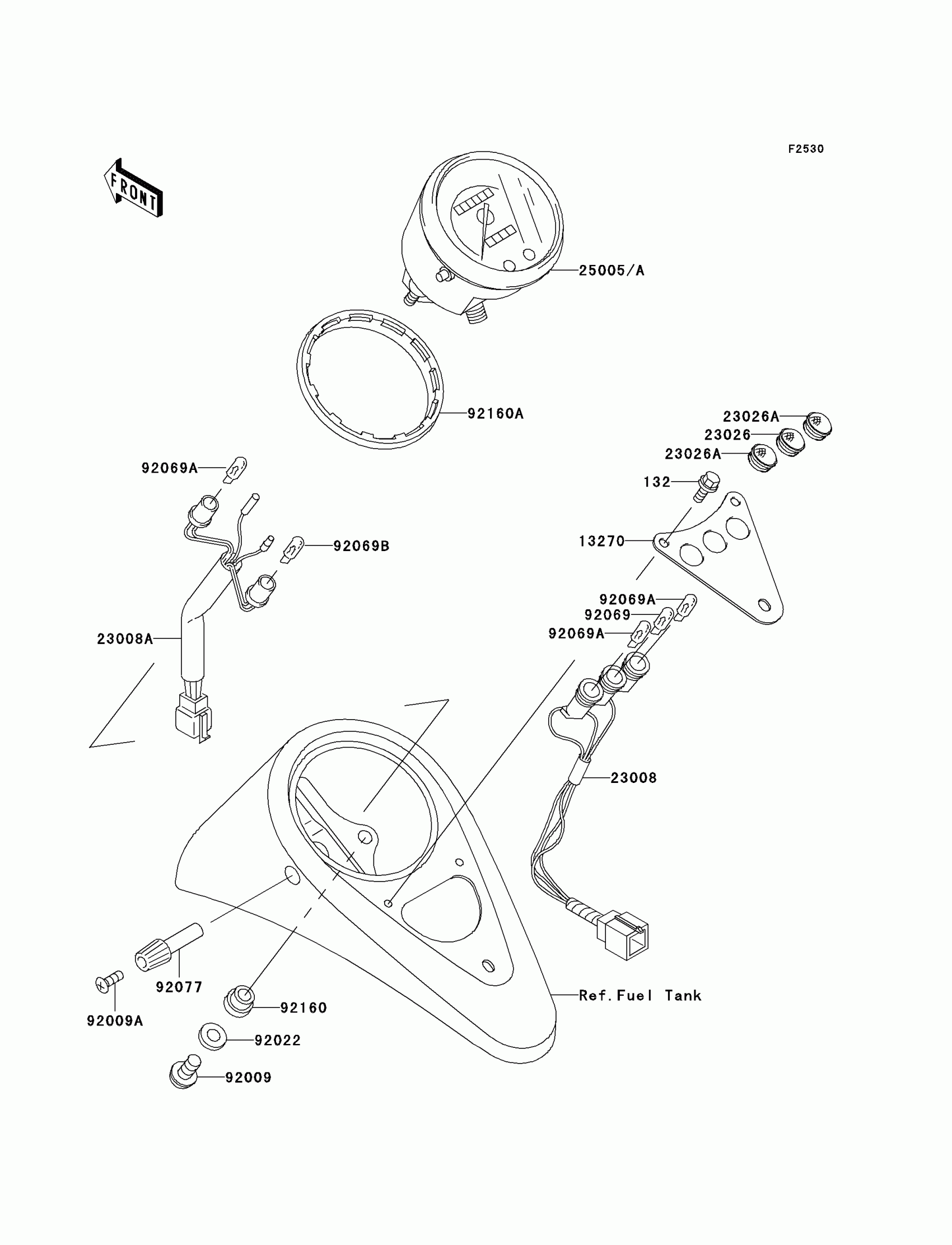

Kawasaki Vulcan 800 Meter(s) Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X12

132E0612

Unavailable

13270

PLATE,PILOT LAMP

13270-1637

$36.15

23008

SOCKET-ASSY,PILOT LAMP

23008-1546

$39.62

23008A

SOCKET-ASSY,SPEEDOMETER

23008-1575

$74.19

23026

LENS,GREEN

23026-1171

$4.84

23026A

LENS,RED

23026-1173

$5.88

25005A

SPEEDOMETER,MPH

25005-1725

$520.24

92009

SCREW,4X6

92009-1690

$2.98

92009A

SCREW,3X8

92009-1799

$3.53

92022

WASHER,4.3X12.5X1

92022-1949

$3.17

92069

BULB,12V 3.4W,T10

92069-1007

$3.81

92069A

BULB,12V 1.7W,T10

92069-1059

$3.78

92069B

BULB,14V 3W,T6.5

92069-1068

$3.81

92077

KNOB,TRIP

92077-1117

$33.79

92160

DAMPER

92160-1068

$7.44

92160A

DAMPER,SHOCK,METER

92160-1380

$6.25
