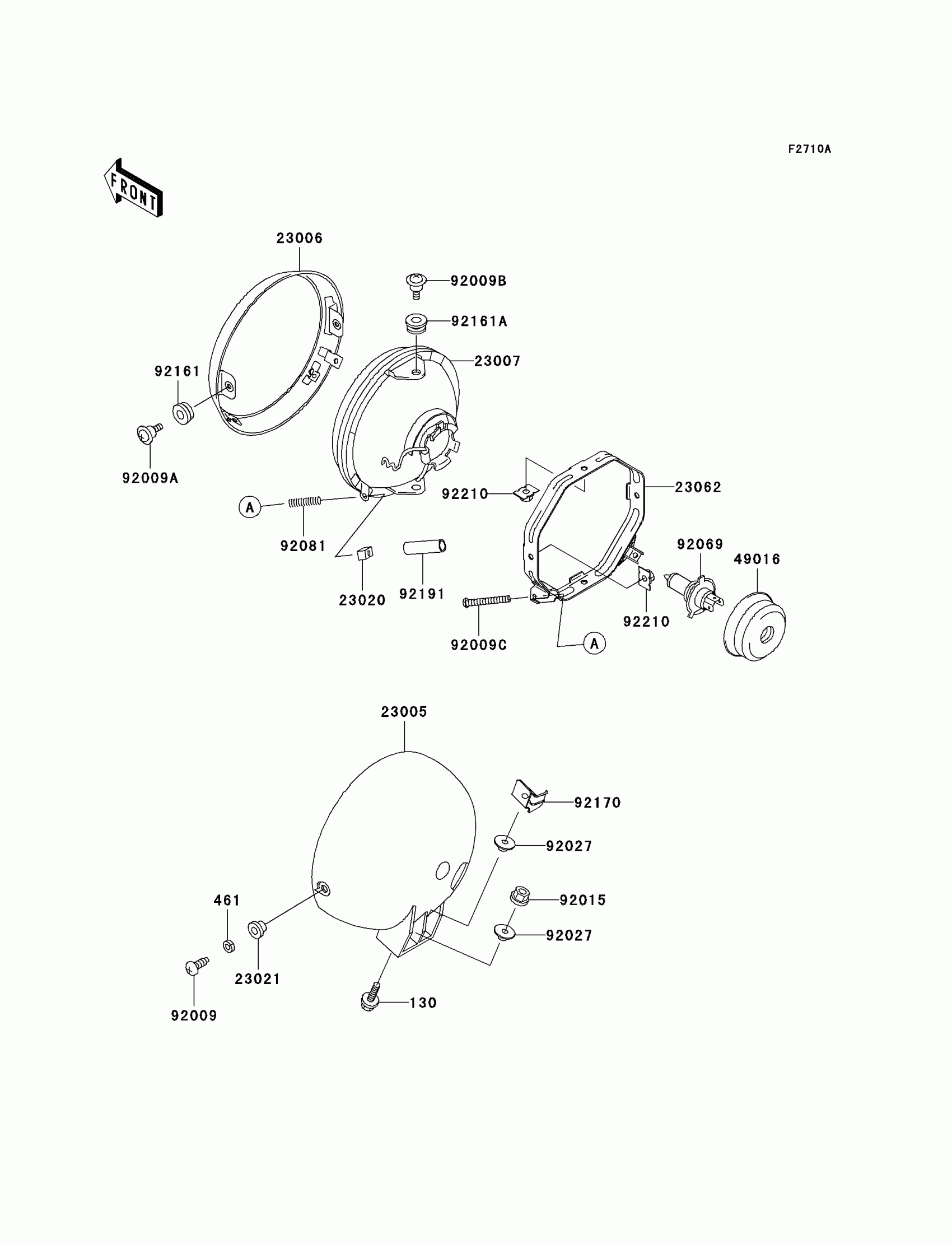

Kawasaki Vulcan 800 Headlight(s)(VN800-A7-A9) Diagram

Description

Price

130

BOLT-FLANGED,6X20

130V0620

Unavailable

461

WASHER SPRING 5MM

461F0500

Unavailable

23005

BODY-COMP-HEAD LAMP

23005-1149

$146.96

23006

RIM-LAMP

23006-1084

$92.82

23007

LENS-COMP,HEAD LAMP

23007-1401

$168.28

23020

NUT,4MM,FOCUS ADJUST

23020-018

$3.69

23021

WASHER

23021-010

$3.43

23062

BRACKET-COMP

23062-1134

$46.91

49016

COVER-SEAL,HEAD LAMP SOCKET

49016-1210

$11.80

92009

SCREW,5MM

92009-1947

$2.12

92009A

SCREW,5MM

92009-1955

$2.49

92009B

SCREW,5MM

92009-1956

$2.25

92009C

SCREW,4X50

92009-1957

$4.10

92015

NUT,FLANGED,6MM

92015-1367

$2.93

92027

COLLAR,L=6.5

92027-252

$4.61

92069

BULB,12V 60/55W,H4

92069-1002

Unavailable

92081

SPRING,FOCUS ADJUSTING

92081-1701

$4.10

92161

DAMPER

92161-1187

$2.25

92161A

DAMPER

92161-1188

$2.25

92170

CLAMP,HARNESS

92170-1624

$5.07

92191

TUBE,3.5X5.5X19

92191-1217

$2.02

92210

NUT,SPECIAL,5MM

92210-1060

$2.03
