1999 Kawasaki Vulcan 800 Chassis Electrical Equipment Diagram

← All diagrams

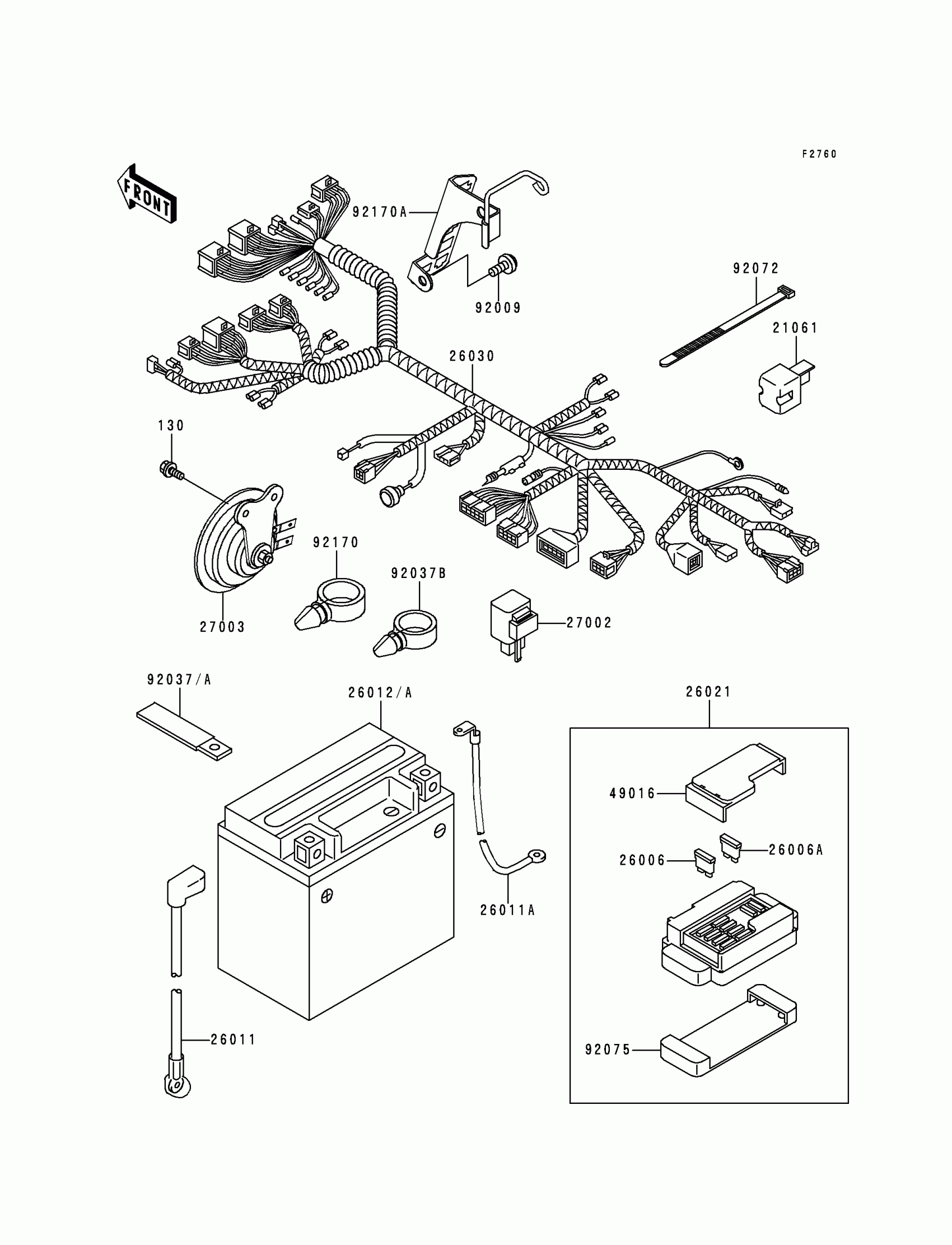

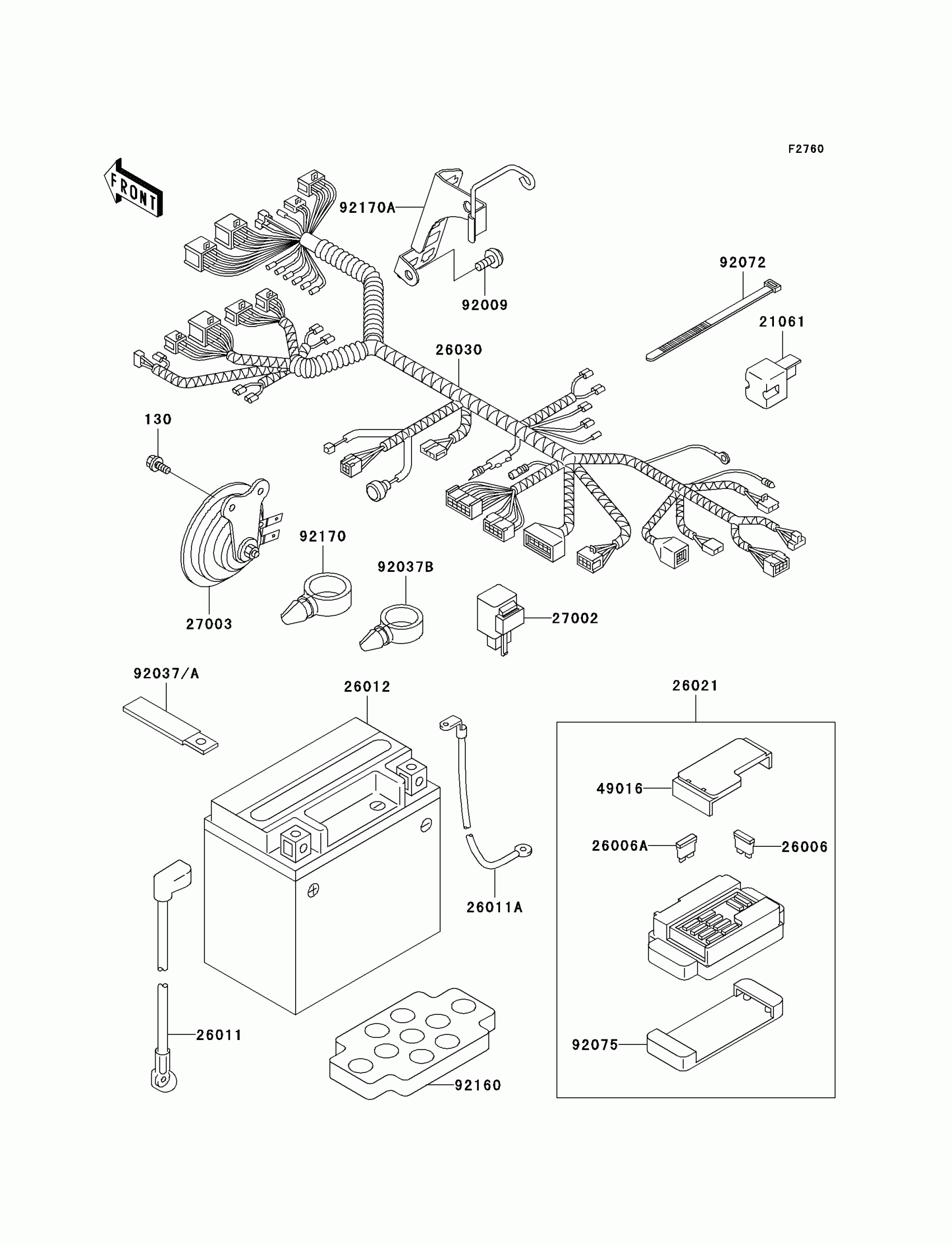

Find the part on the Chassis Electrical Equipment diagram for your 1999 Kawasaki Vulcan 800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1999 Kawasaki Vulcan 800 Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X12

130J0612

1
Out of stock

21061

RECTIFIER

21061-1003

1

$30.17

In stock

26006

FUSE,BLADE,30A,GREEN

26006-1067

1
Out of stock

26006A

FUSE,10A-R

26006-1068

1
Out of stock

26011

1

$38.93

In stock

26011A

1

$31.43

In stock

26021

JUNCTION BOX

26021-1089

1
Out of stock

26030

HARNESS,MAIN

26030-1363

1

$322.76

In stock

27002

1

$73.74

In stock

27003

HORN,350HZ,LH

27003-1239

1

$85.46

In stock

49016

COVER-SEAL,FUSE

49016-1177

1
Out of stock

92009

SCREW,6X14

92009-1662

1
Out of stock

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

1
Out of stock

92037A

CLAMP,L=45

92037-1539

1

$4.42

In stock

92037B

CLAMP,HOSE

92037-1827

1

$5.93

In stock

92072

BAND,L=365

92072-1197

1

$7.71

In stock

92075

DAMPER,JUNCTION BOX

92075-1688

1

$13.64

In stock

92170

CLAMP

92170-1067

1

$5.93

In stock

92170A

CLAMP,HARNESS

92170-1570

1

$24.03

In stock

26012

1

$125.31

In stock

26012A

1

$125.31

In stock
