1999 Kawasaki Vulcan 800 Generator Diagram

← All diagrams

Find the part on the Generator diagram for your 1999 Kawasaki Vulcan 800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

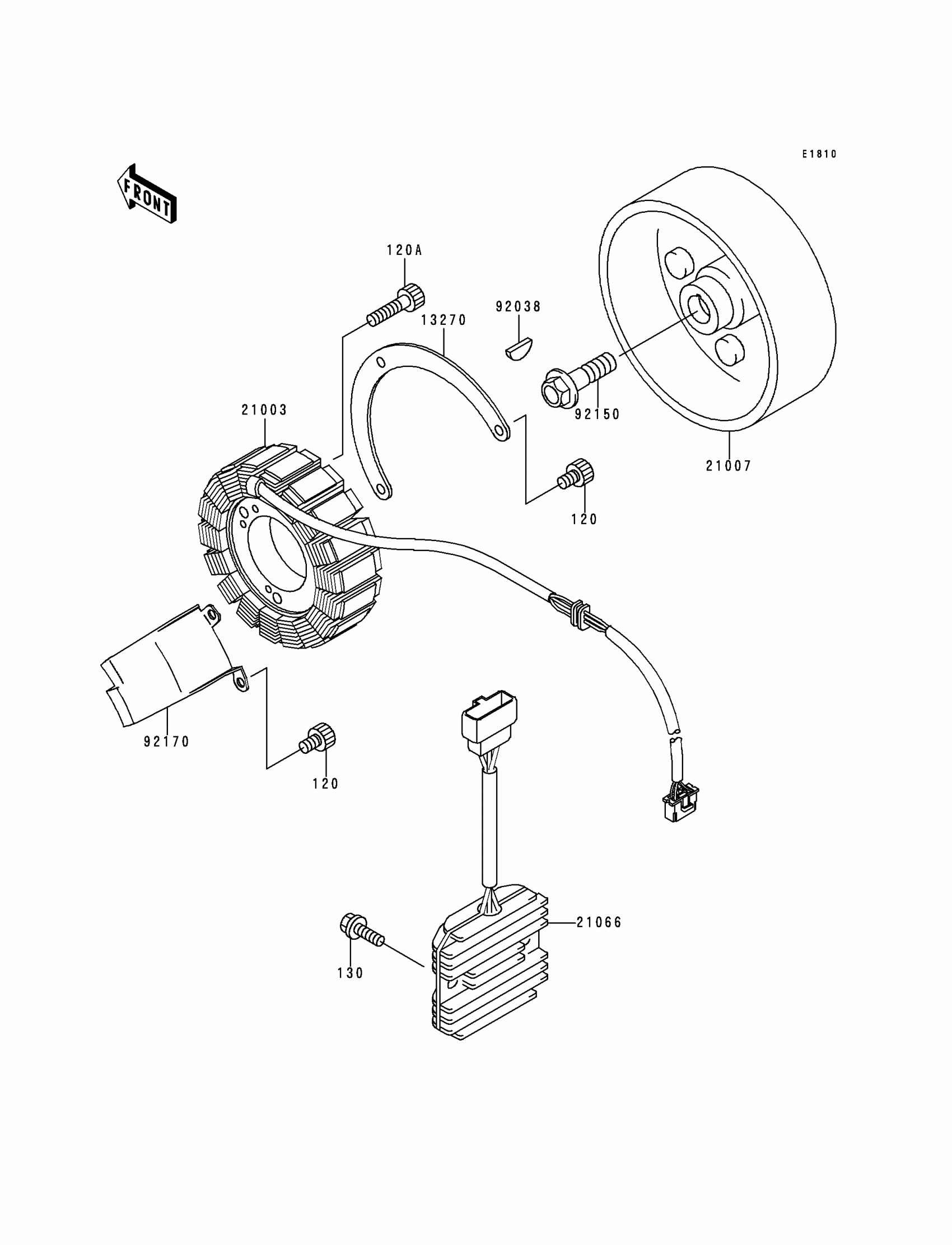

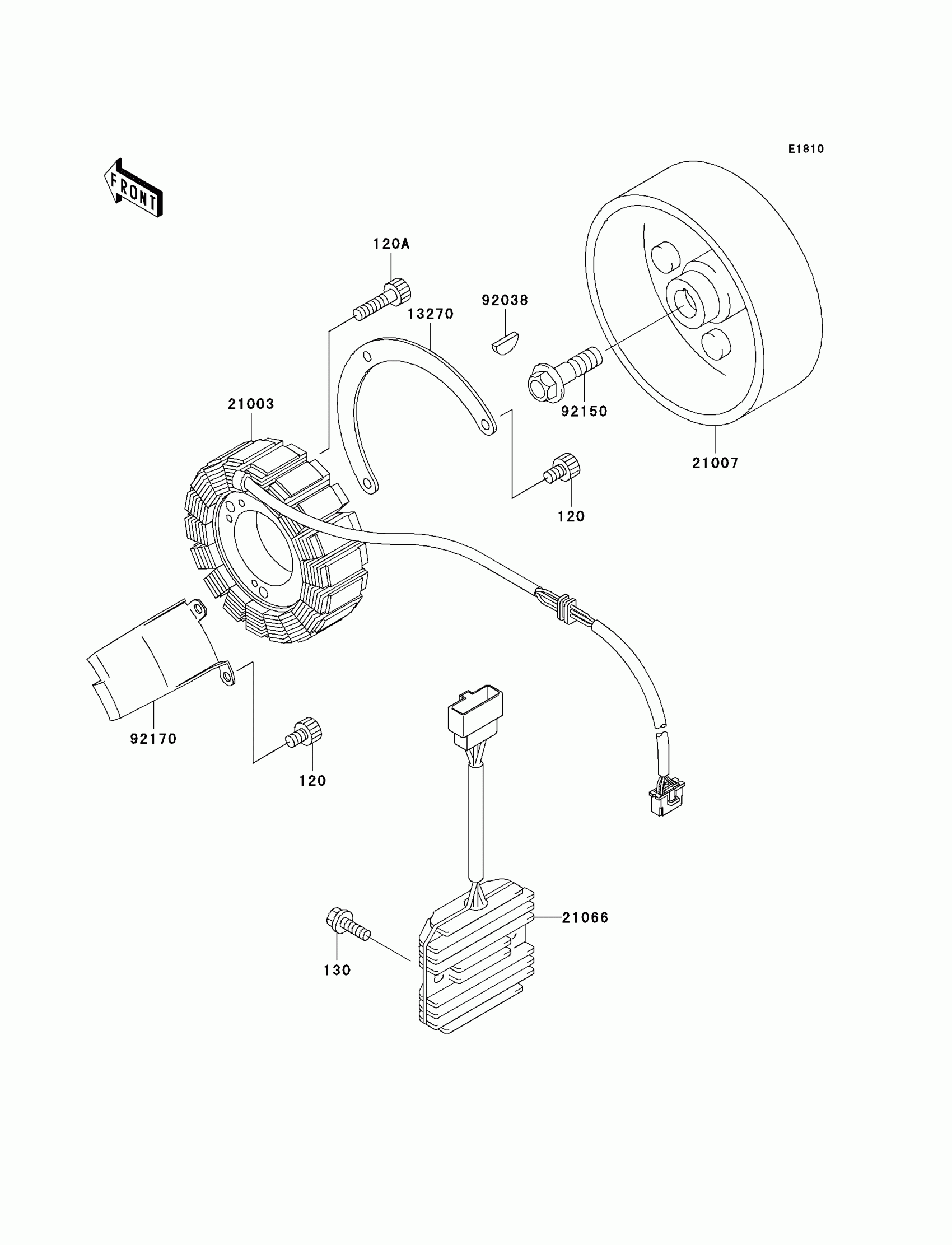

1999 Kawasaki Vulcan 800 Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,5X10

120P0510

1
Out of stock

120A

BOLT-SOCKET,6X35

120P0635

1
Out of stock

130

BOLT-FLANGED

130J0620

1
Out of stock

13270

PLATE

13270-1398

1
Out of stock

21003

STATOR

21003-1280

1

$614.89

In stock

21007

ROTOR,GENERATOR

21007-1279

1

$612.25

In stock

21066

REGULATOR-VOLTAGE

21066-1099

1

$273.17

In stock

92038

KEY,WOODRUFF

92038-001

1

$3.94

In stock

92150

BOLT,12X40

92150-1717

1

$10.93

In stock

92170

CLAMP

92170-1559

1

$4.71

In stock
