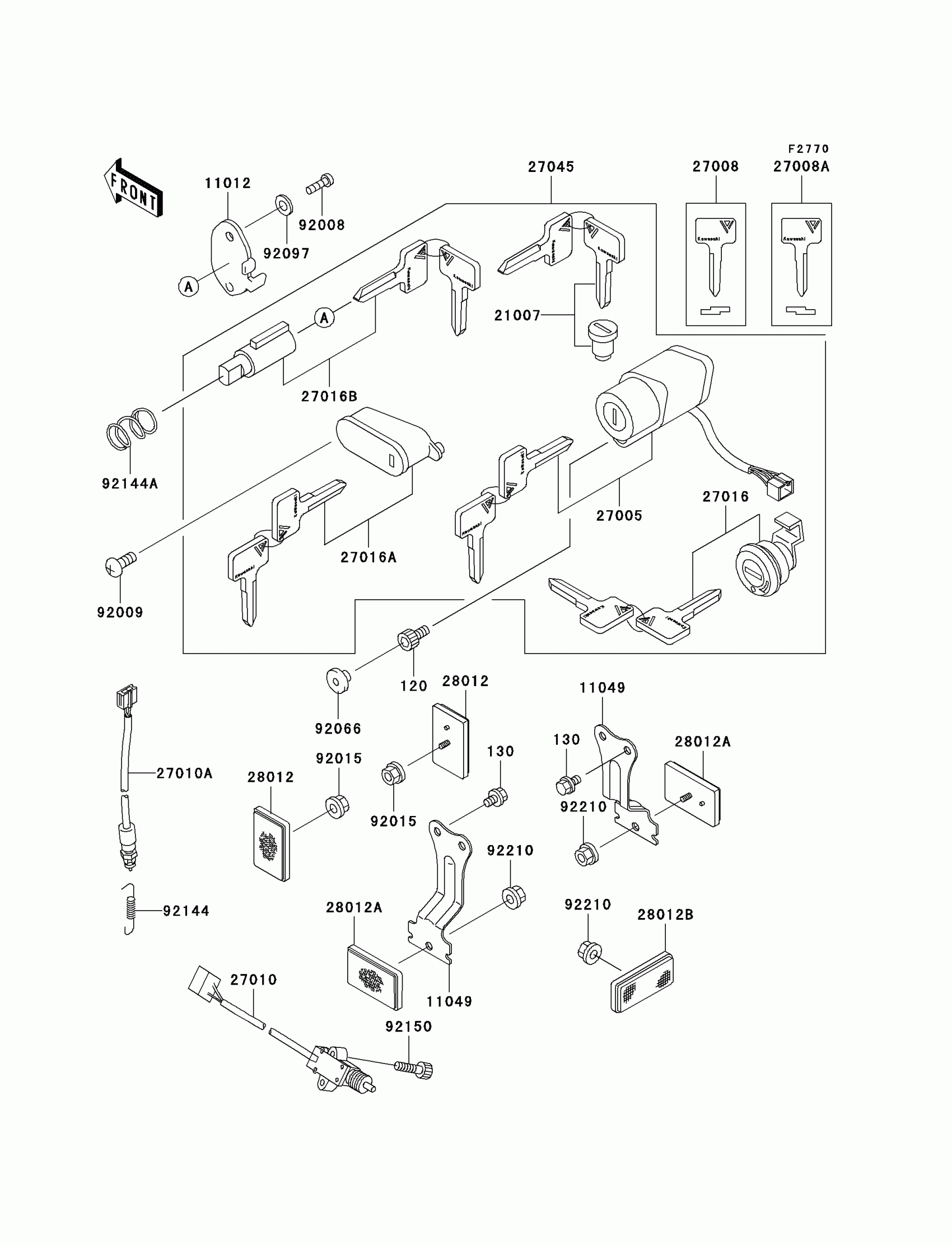

Find the part on the Ignition Switch/locks/reflectors diagram for your 1999 Kawasaki Vulcan 800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1999 Kawasaki Vulcan 800 Ignition Switch/locks/reflectors Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET

120P0512

1
Out of stock

130

BOLT-FLANGED

130J0508

1
Out of stock

11012

CAP,STEERING LOCK

11012-1586

1
Out of stock

11049

BRACKET,REFLECTOR

11049-1146

1

$9.29

In stock

21007

ROTOR,LOCK,TANK CAP

21007-5024

1

$74.13

In stock

27005A

1

$187.57

In stock

27008

KEY-LOCK,BLANK,#A

27008-1138

1

$19.58

In stock

27008A

KEY-LOCK,BLANK,#B

27008-1139

1

$19.34

In stock

27010

SWITCH,SIDE STAND

27010-1352

1

$79.87

In stock

27010B

SWITCH,REAR BRAKE

27010-1370

1

$33.51

In stock

27016

LOCK-ASSY,STEERING

27016-5131

1

$87.55

In stock

27016A

LOCK-ASSY,LID

27016-5225

1

$70.92

In stock

27016B

LOCK-ASSY,HELMET

27016-5226

1

$69.10

In stock

27045A

SWITCH-ASSY

27045-5040

1

$377.37

In stock

28012

REFLECTOR-REFLEX,FR

28012-1009

1
Out of stock

28012A

REFLECTOR-REFLEX,RR

28012-1051

1

$24.63

In stock

28012B

REFLECTOR-REFLEX

28012-1077

1

$21.76

In stock

92008

SCREW,3.51MM

92008-007

1
Out of stock

92009

SCREW,5X14

92009-1341

1
Out of stock

92015

NUT,FLANGED,5MM

92015-1259

1
Out of stock

92015A

NUT,FLANGED,5MM

92015-1656

1

$2.59

In stock

92066

PLUG

92066-1435

1

$2.25

In stock

92097

WASHER,WAVE

92097-003

1

$3.57

In stock

92144

1

$4.34

In stock

92144A

1

$3.98

In stock

92150

BOLT,SOCKET,5X22

92150-1491

1

$3.16

In stock
