2000 Kawasaki Vulcan 800 Drifter Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 2000 Kawasaki Vulcan 800 Drifter, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

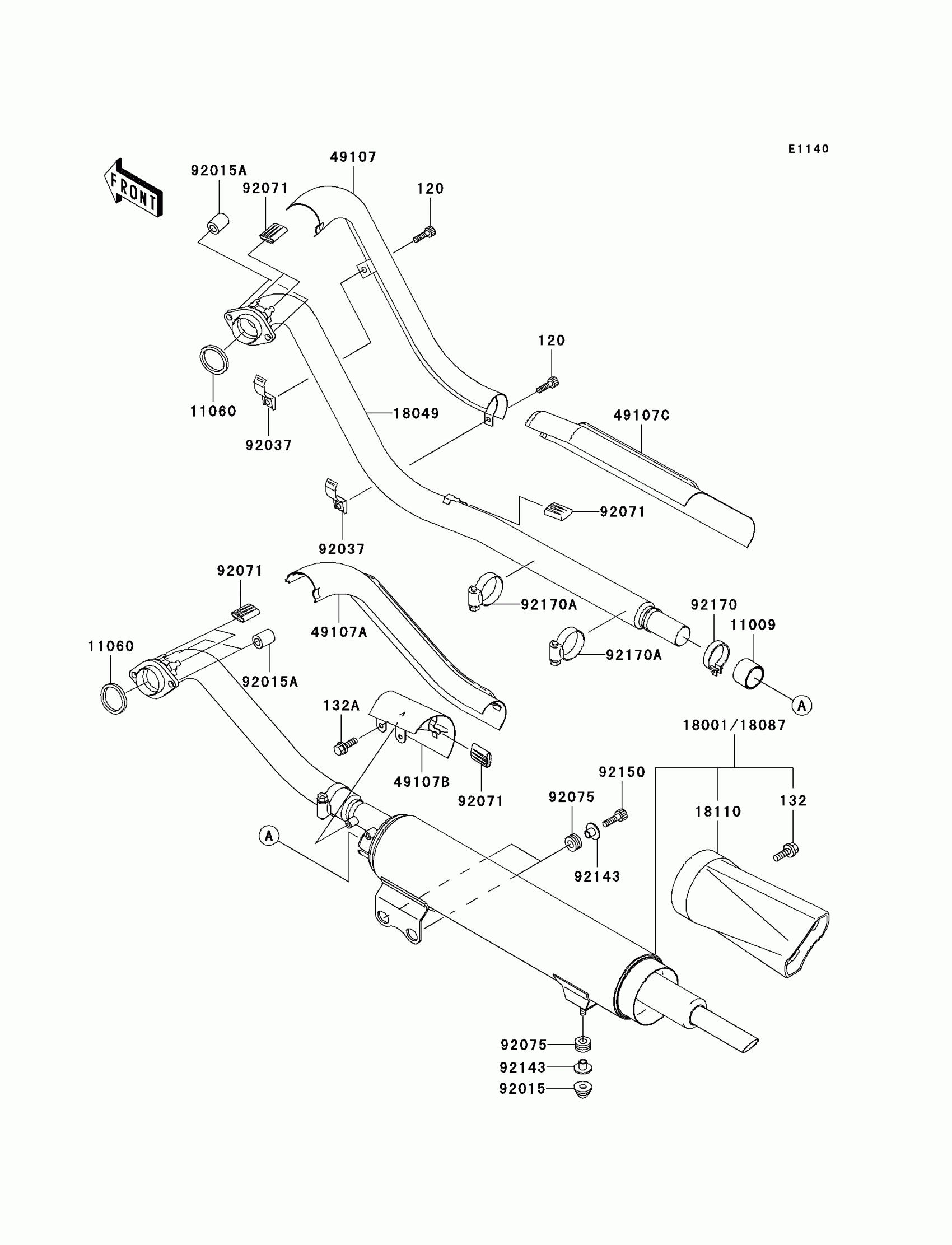

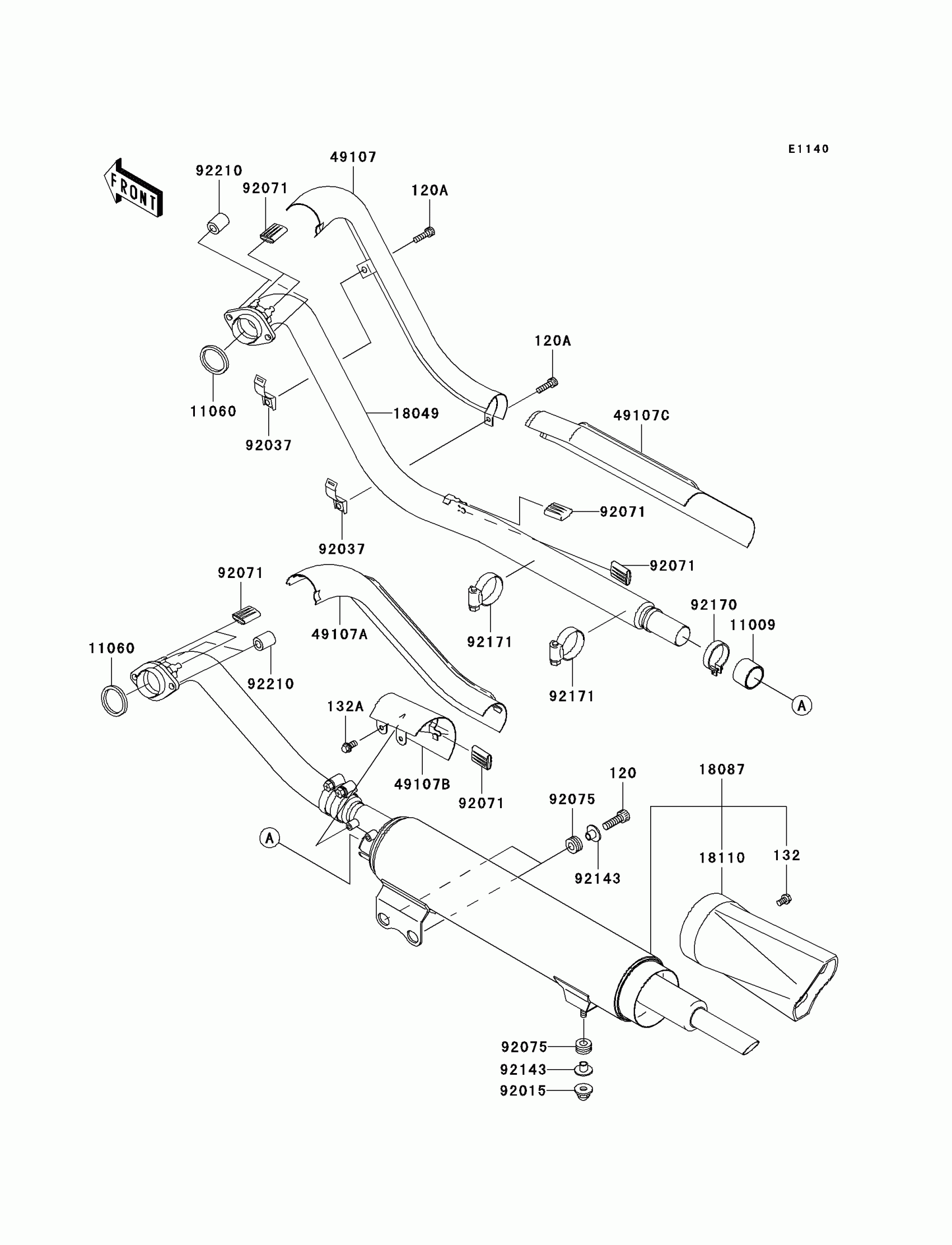

2000 Kawasaki Vulcan 800 Drifter Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,6X20

120Z0620

1
Out of stock

132

BOLT-FLANGED-SMALL,6X10

132Y0610

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X12

132Y0612

1
Out of stock

11009

GASKET,MUFFLER CONNECTING

11009-1865

1
Out of stock

11060

GASKET,EXHAUST PIPE

11060-1680

1

$8.50

In stock

18049

PIPE-EXHAUST,FR

18049-1899

1

$235.66

In stock

18087

MUFFLER

18087-1069

1

$1,173.44

In stock

18110

BODY END-MUFFLER

18110-1151

1

$75.37

In stock

49107

1

$171.03

In stock

49107A

1

$271.43

In stock

49107B

1

$83.82

In stock

49107C

1

$211.07

In stock

92015

NUT,CAP,8MM

92015-1370

1
Out of stock

92015A

NUT

92015-1923

1

$9.03

In stock

92037

CLAMP,EXHAUST PIPE COVER

92037-1613

1
Out of stock

92071

GROMMET

92071-1226

1

$5.11

In stock

92075

DAMPER

92075-1898

1

$3.72

In stock

92143

COLLAR

92143-1753

1

$6.24

In stock

92150

BOLT,SOCKET,8X25

92150-1912

1

$3.72

In stock

92170

CLAMP,MUFFLER

92170-1454

1

$9.70

In stock

92170A

CLAMP

92170-1964

1

$9.42

In stock
