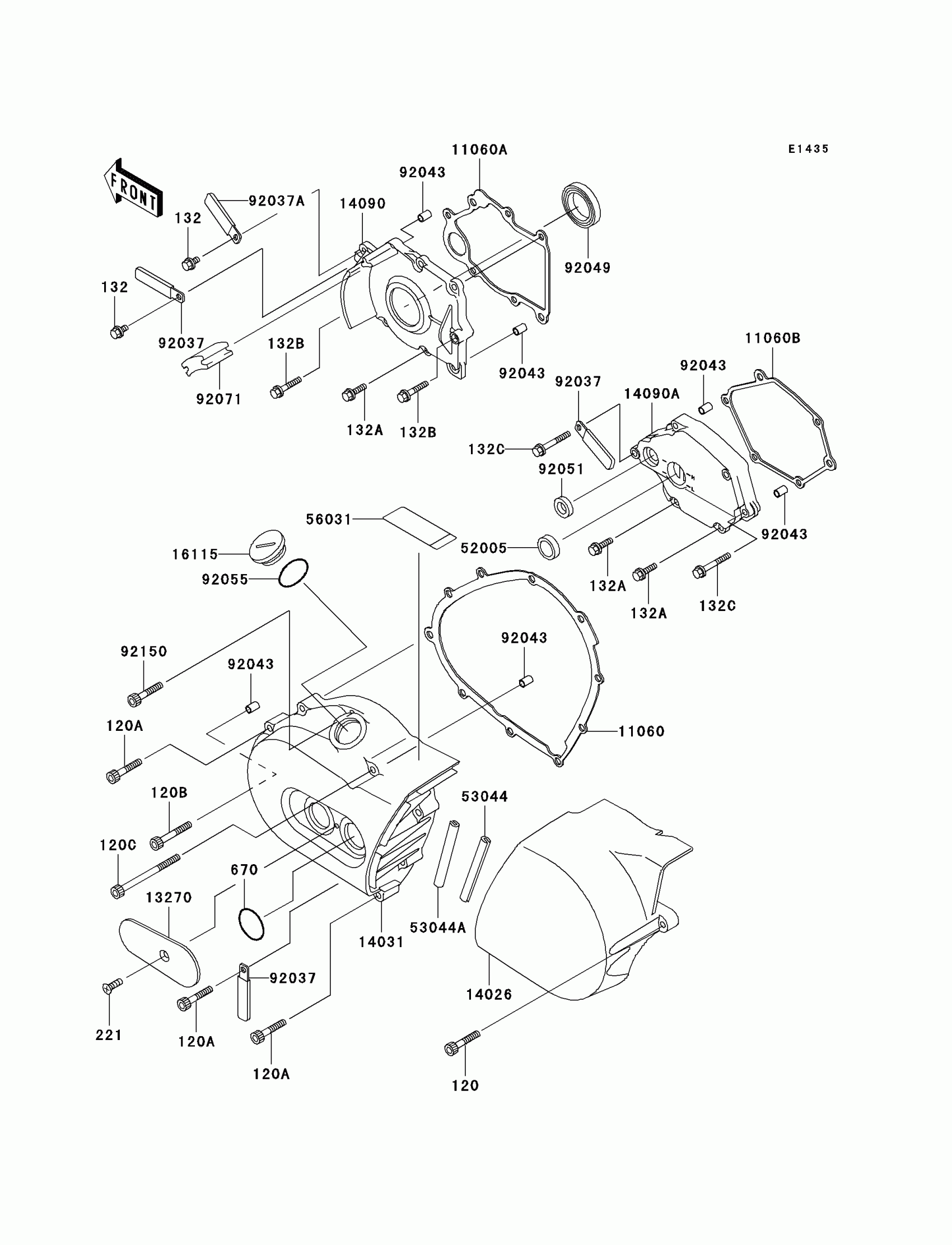

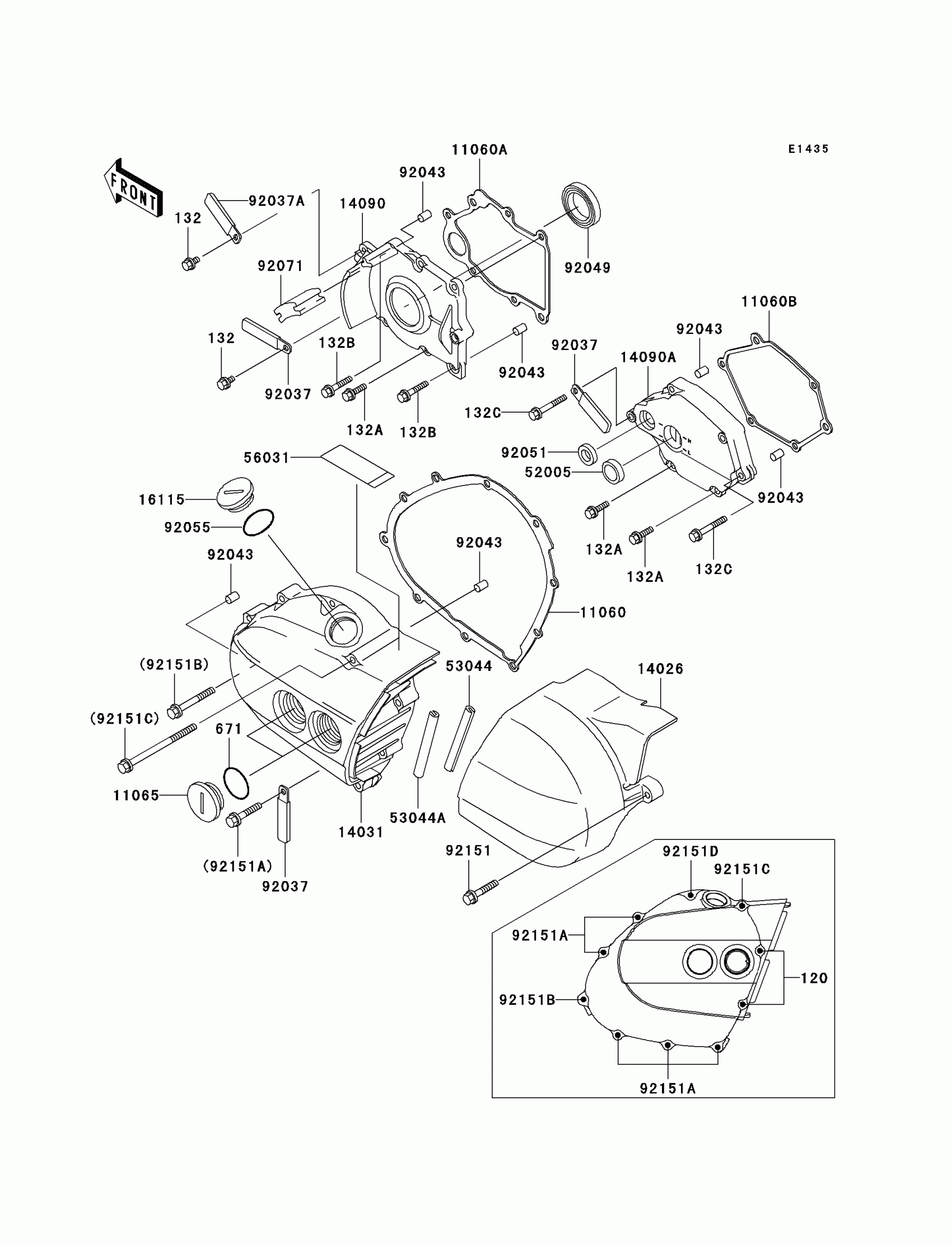

Kawasaki Vulcan 800 Drifter Left Engine Cover(s) Diagram

#

Description
Price

120

BOLT-SOCKET,6X35

120R0635

$4.42

132

BOLT-FLANGED-SMALL,6X10

132H0610

Unavailable

132A

BOLT-FLANGED-SMALL,6X20

132J0620

Unavailable

132B

BOLT-FLANGED-SMALL,6X30

132J0630

Unavailable

132C

BOLT-FLANGED-SMALL,6X40

132J0640

Unavailable

671

O RING,40MM

671B2540

$4.67

11060

GASKET,GENERATOR COVER

11060-1089

$26.99

11060A

GASKET,TRANSMISSION COVER

11060-1683

$17.08

11060B

GASKET,MECHANISM COVER

11060-1685

$15.12

11065

CAP,GENERATOR

11065-1113

Unavailable

14026

COVER-CHAIN

14026-1257

Unavailable

14031

COVER-GENERATOR

14031-1360

Unavailable

14090

COVER,TRANSMISSION

14090-1552

Unavailable

14090A

COVER,MECHANISM

14090-1559

$129.90

16115

CAP-OIL FILLER

16115-1069

$40.25

52005

GAUGE,OIL LEVEL

52005-1009

$13.87

53044

TRIM

53044-1285

$4.61

53044A

TRIM

53044-1286

$5.75

56031

LABEL-MANUAL,OIL CAPACITY

56031-1894

$7.44

92037

CLAMP,L=45

92037-1539

$4.42

92037A

CLAMP

92037-1993

$4.18

92043

PIN,6.2X8X14

92043-1263

$0.46

92049

SEAL-OIL,TC32488

92049-1361

$5.18

92051

SEAL-OIL,TB13225.5

92051-005

$5.91

92055

RING-O,31.5X2.6

92055-049

$3.29

92071

GROMMET

92071-1232

$7.44

92151

BOLT,6X30

92151-1134

$1.57

92151A

BOLT,6X35

92151-1135

$3.19

92151B

BOLT,6X45

92151-1336

Unavailable

92151C

BOLT,6X85

92151-1427

$3.29

92151D

BOLT,6X35

92151-1428

Unavailable
