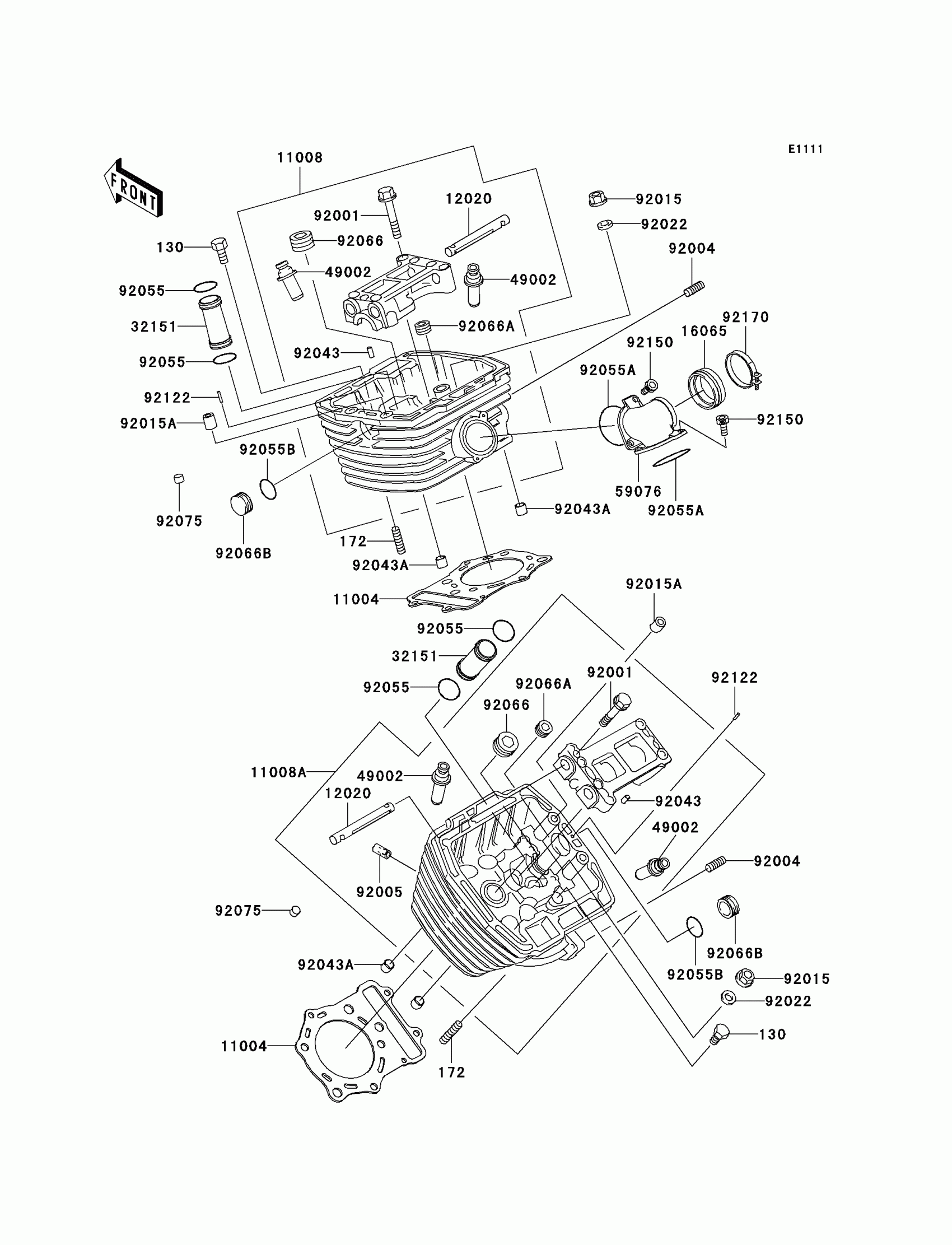

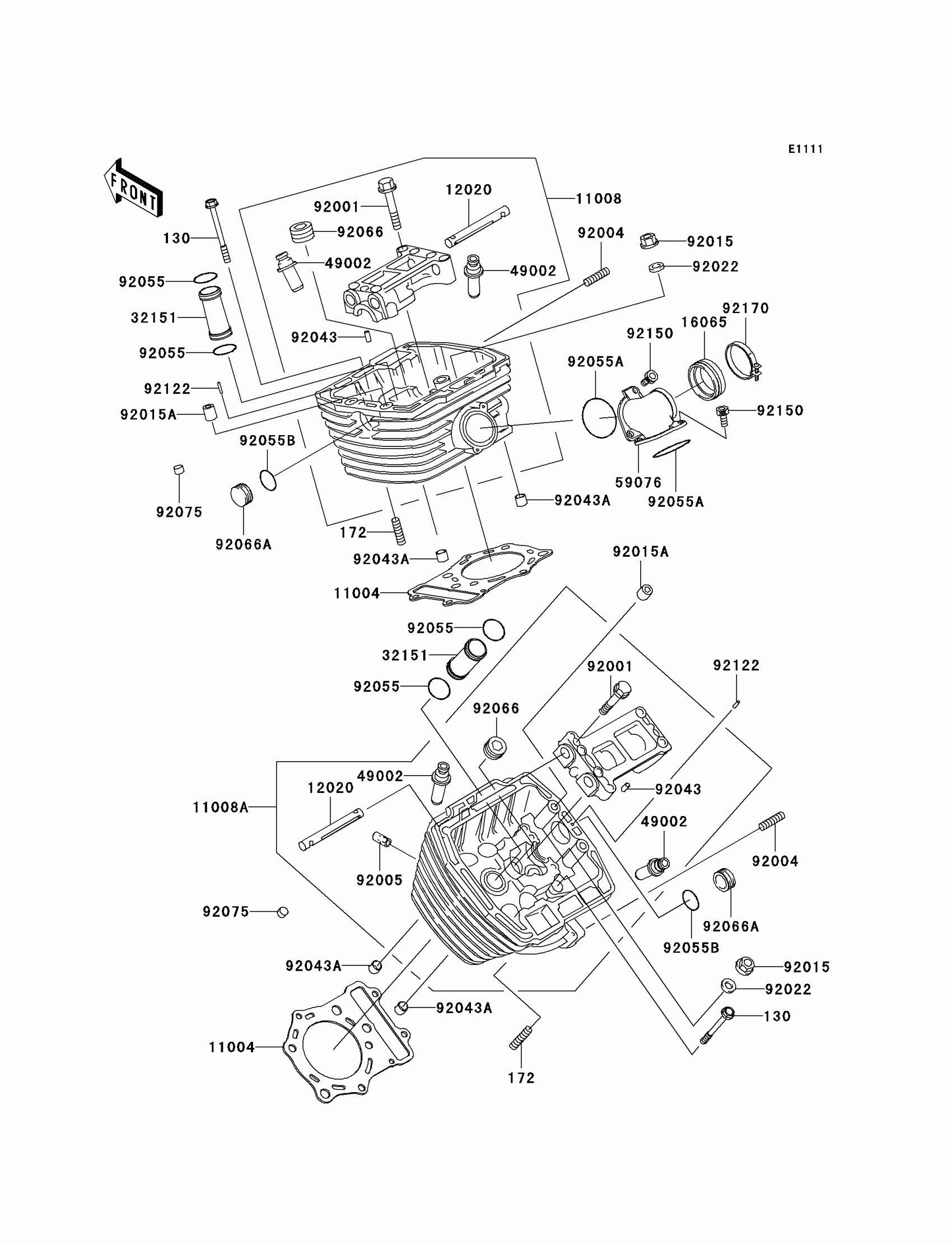

Kawasaki Vulcan 800 Drifter Cylinder Head Diagram

#

Description
Price

130

BOLT-FLANGED,6X65

130S0665

Unavailable

172

BOLT-STUD,8X25

172G0825

$2.46

11004

GASKET-HEAD

11004-1310

$44.13

11008

HEAD-COMP-CYLINDER,FR

11008-1358

Unavailable

11008A

HEAD-COMP-CYLINDER,RR

11008-1359

Unavailable

12020

SHAFT-ROCKER

12020-1070

$40.90

16065

HOLDER-CARBURETOR

16065-1308

$39.74

32151

PIPE,PLUG

32151-1893

$22.39

49002

GUIDE-VALVE

49002-1097

Unavailable

59076

MANIFOLD-INTAKE

59076-1107

$81.17

92001

BOLT,FLANGED,8X58

92001-1005

$7.24

92004

STUD,8X22

92004-1217

$4.27

92005

FITTING,BREATHER PIPE

92005-1061

$24.63

92015

NUT,FLANGED,10MM

92015-077

$3.57

92015A

NUT

92015-1923

$8.66

92022

WASHER,10.5X20X1.6

92022-1591

$3.88

92043

PIN,6.2X8X14

92043-1263

$0.46

92043A

PIN,11X14X12.3

92043-1266

$0.86

92055

RING-O,27.7X1.9

92055-1272

$4.18

92055A

RING-O,44.7X2.4

92055-1279

$5.61

92055B

RING-O,ID=24.5

92055-1459

$3.60

92066

PLUG,PT1/2X12.5

92066-1253

$6.85

92066A

PLUG,PT1/4X8.9

92066-1260

$3.81

92066B

PLUG,CAM HOLE

92066-1462

$7.48

92075

DAMPER

92075-182

$4.00

92122

ROLLER,3X15.8

92122-1126

$3.53

92150

BOLT,SOCKET,6X20

92150-1880

$3.56

92170

CLAMP

92170-1632

Unavailable
