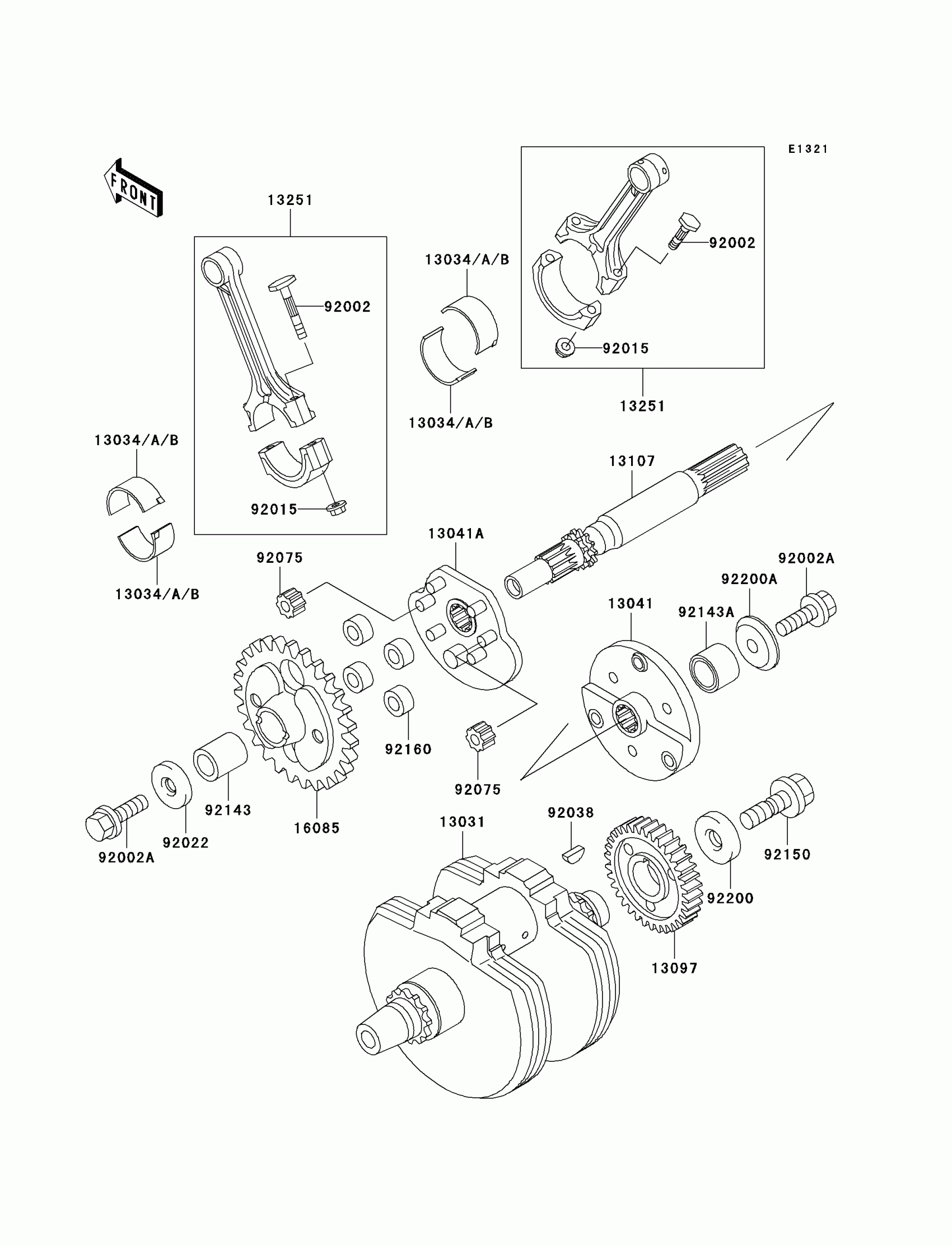

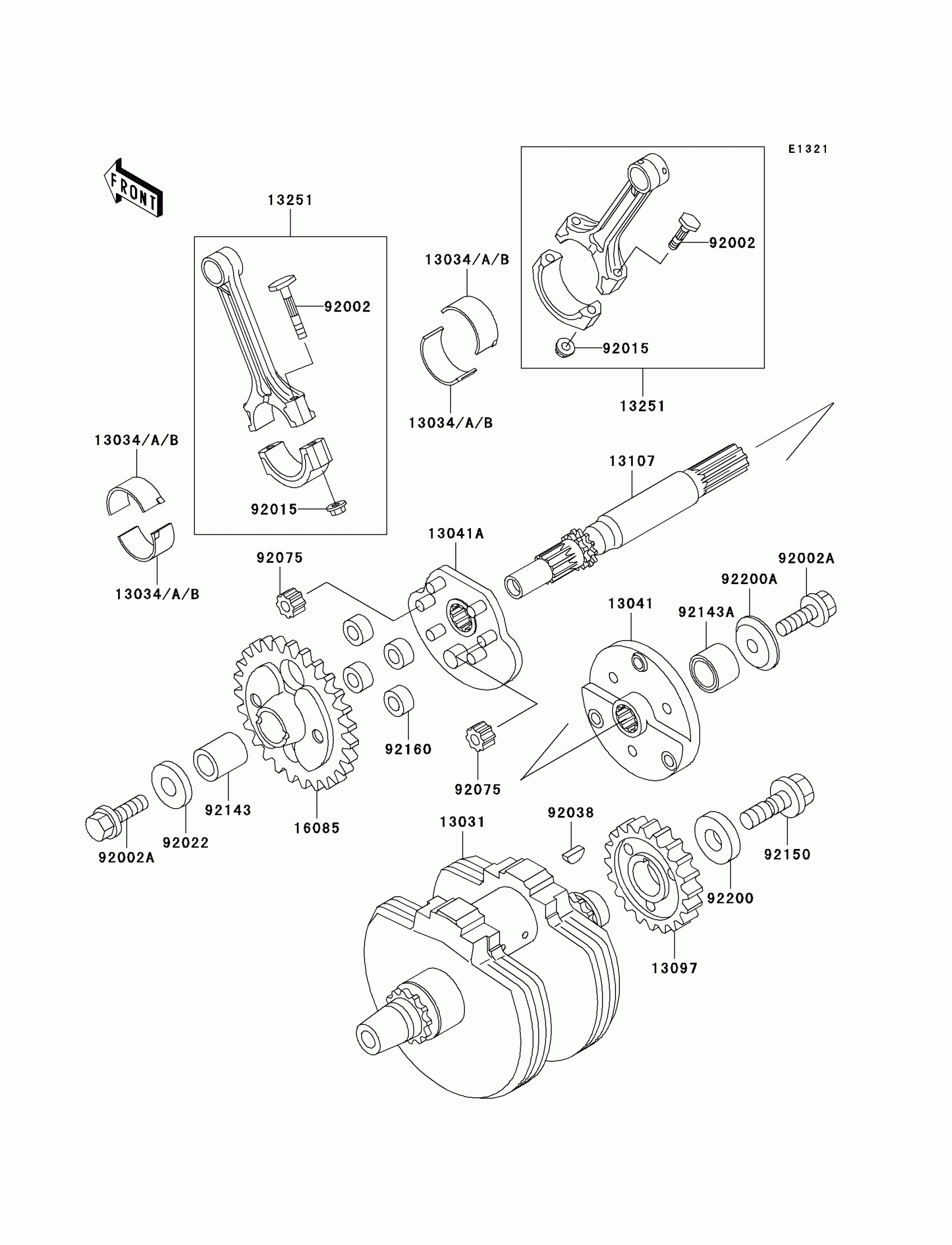

Kawasaki Vulcan 800 Drifter Crankshaft Diagram

Description

Price

13031

CRANKSHAFT-COMP

13031-1398

$1,172.18

13034

METAL,CONNECTING ROD,BLUE

13034-1057

Unavailable

13034A

METAL,CONNECTING ROD,BLACK

13034-1058

Unavailable

13034B

METAL,CONNECTING ROD,BROWN

13034-1059

Unavailable

13041

BALANCER,RH

13041-1112

$142.87

13041A

BALANCER,LH

13041-1113

$159.72

13097

GEAR-PRIMARY SPUR,38T

13097-1335

$94.19

13107

SHAFT,BALANCER

13107-1336

$182.36

13251

ROD-ASSY-CONNECTING,G

13251-1055-GG

Unavailable

16085

GEAR

16085-1279

$209.46

92002

BOLT,CONNECTING ROD

92002-1405

$9.29

92002A

BOLT,10X30

92002-1697

$5.71

92015

NUT,CONNECTING ROD

92015-1481

$7.49

92022

WASHER,10X33X6

92022-1906

$13.51

92038

KEY

92038-1059

$3.15

92075

DAMPER

92075-1748

$13.24

92143

COLLAR

92143-1736

$24.46

92143A

COLLAR

92143-1743

$24.46

92150

BOLT,12X40

92150-1717

$10.93

92160

DAMPER

92160-1582

$11.12

92200

WASHER,12X36X8

92200-1249

$12.78

92200A

WASHER

92200-1250

$12.78
