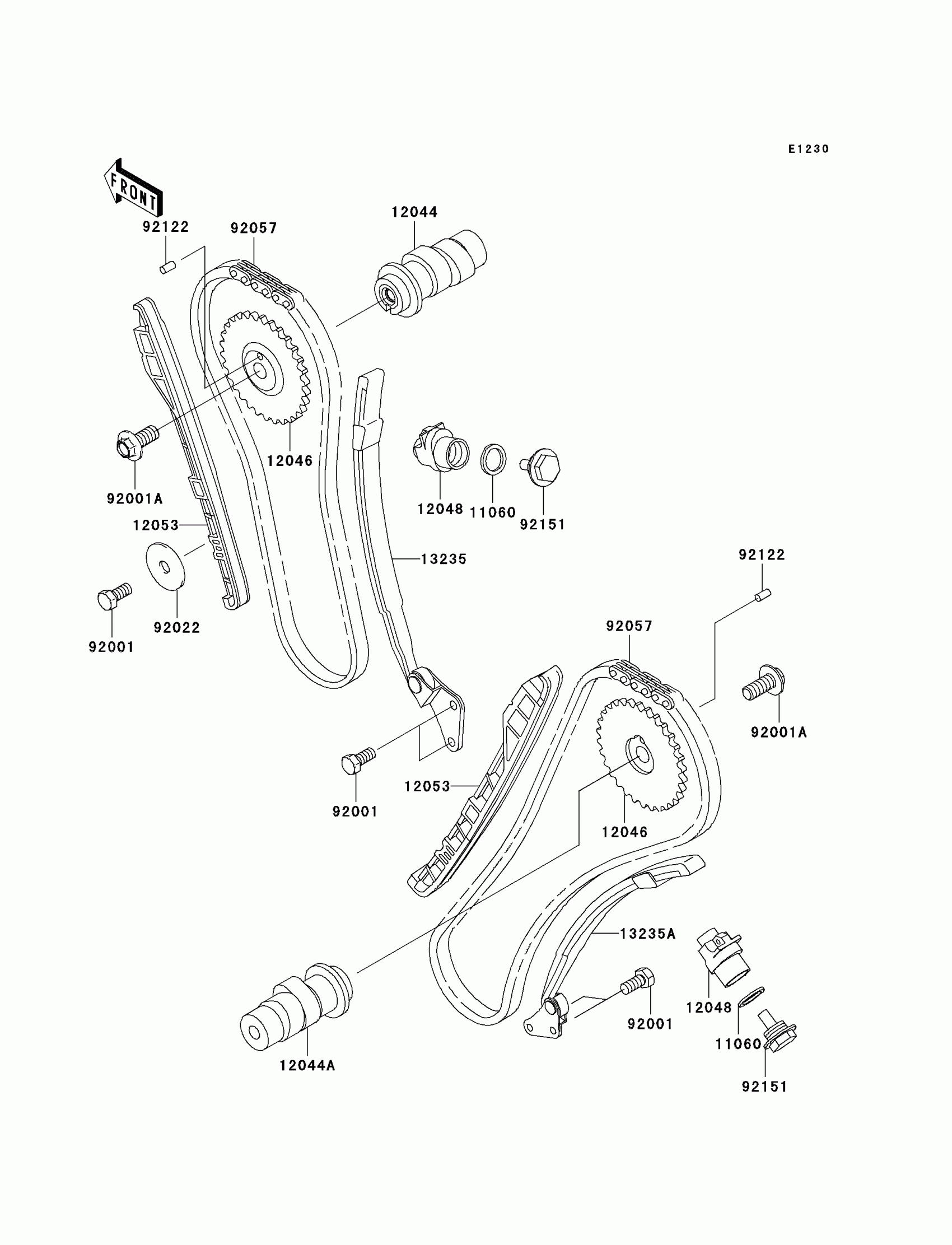

Kawasaki Vulcan 800 Drifter Camshaft(s)/Tensioner Diagram

Description

Price

11060

GASKET,TENSIONER

11060-1682

$3.81

12044

CAMSHAFT-VALVE,FR

12044-1377

$212.55

12044A

CAMSHAFT-VALVE,RR

12044-1378

$192.07

12046

SPROCKET

12046-1171

$48.64

12048

TENSIONER-ASSY

12048-1145

$114.99

12053

GUIDE-CHAIN

12053-1354

$59.58

13235

GUIDE-COMP,FR

13235-1067

$106.20

13235A

GUIDE-COMP,RR

13235-1068

$108.18

92001

BOLT,6X16

92001-1457

$4.42

92001A

BOLT,10X23

92001-1859

$7.54

92022

WASHER,7X27X1.6

92022-227

$3.57

92057

CHAIN,CAM

92057-1403

$103.60

92122

ROLLER,4X9.8

92122-1197

$3.85

92151

BOLT,TENSIONER

92151-1136

$13.69
