2000 Kawasaki Vulcan 800 Drifter Cylinder/piston Diagram

← All diagrams

Find the part on the Cylinder/piston diagram for your 2000 Kawasaki Vulcan 800 Drifter, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

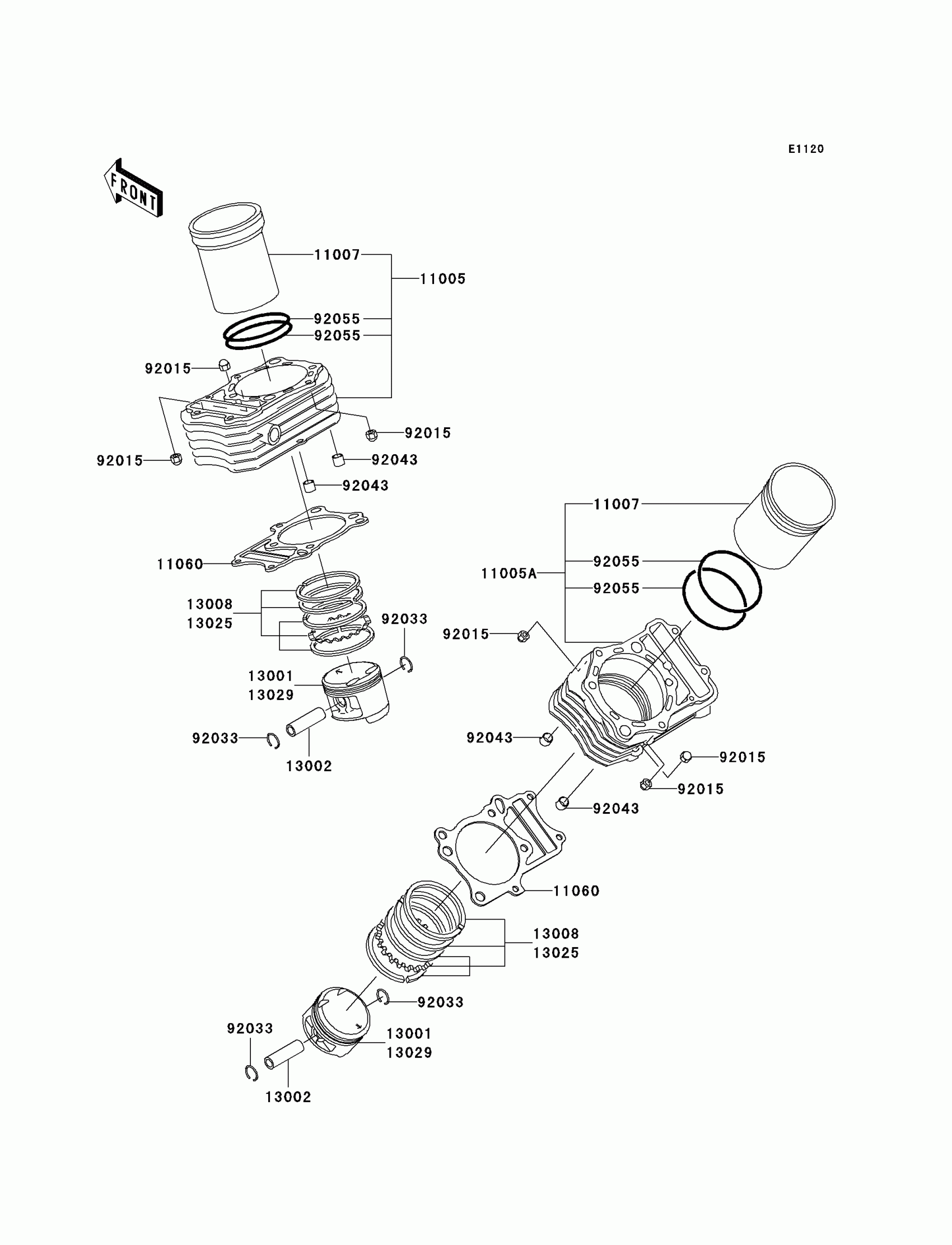

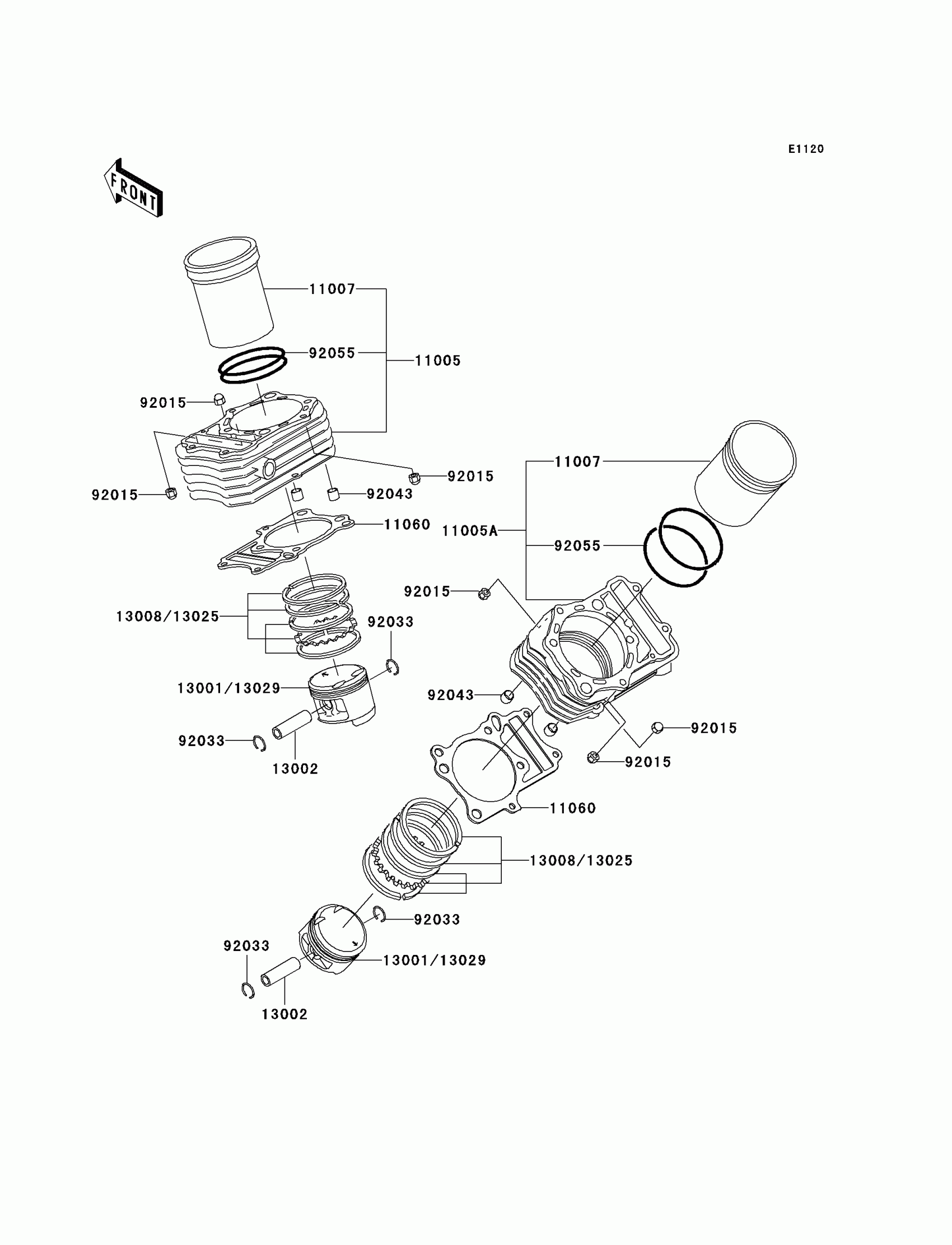

2000 Kawasaki Vulcan 800 Drifter Cylinder/piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11005

CYLINDER-ENGINE,FR

11005-1768

1

$954.50

In stock

11005A

CYLINDER-ENGINE,RR

11005-1770

1

$954.50

In stock

11007

LINER-CYLINDER

11007-1134

1

$161.48

In stock

11060

1

$11.19

In stock

13001

PISTON-ENGINE,STD

13001-1434

1

$143.39

In stock

13002

PIN-PISTON

13002-1056

1

$29.35

In stock

13008

RING-SET-PISTON,STD

13008-1164

1

$90.76

In stock

13025

1

$91.68

In stock

13029

1

$127.91

In stock

92015

NUT,CAP,8MM

92015-1370

1
Out of stock

92033

RING-SNAP

92033-1188

1

$2.83

In stock

92043

PIN,11X14X12.3

92043-1266

1

$1.00

In stock

92055

RING-O,95.3X2.5

92055-1535

1

$4.37

In stock
