2005 Kawasaki Vulcan 800 Drifter Engine Mount Diagram

← All diagrams

Find the part on the Engine Mount diagram for your 2005 Kawasaki Vulcan 800 Drifter, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

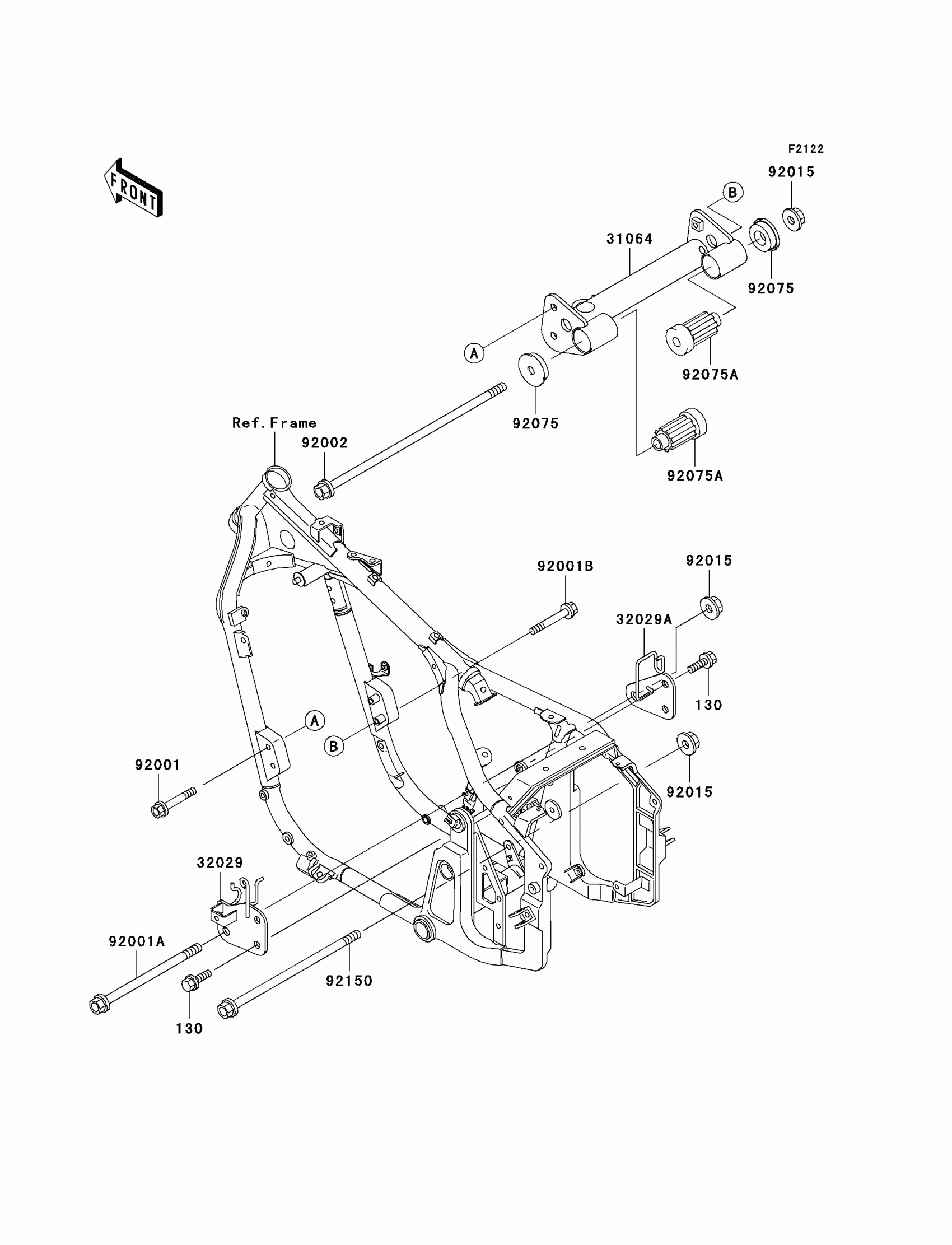

2005 Kawasaki Vulcan 800 Drifter Engine Mount Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,8X16

130J0816

1
Out of stock

31064

1

$153.04

In stock

32029

1

$25.19

In stock

32029A

1

$23.36

In stock

92001

BOLT,FLANGED,8X50

92001-1614

1

$5.37

In stock

92001A

BOLT,FLANGED,10X155,BLACK

92001-1620

1
Out of stock

92001B

1

$7.14

In stock

92002

BOLT,FLANGED,10X285

92002-1206

1

$21.24

In stock

92015

NUT,FLANGED,10MM

92015-1180

1
Out of stock

92075

DAMPER,ENGINE MOUNT

92075-1738

1

$21.76

In stock

92075A

1

$29.30

In stock

92150

BOLT,FLANGED,10X205

92150-1899

1
Out of stock
