2003 Kawasaki Vulcan 750 Engine Mount Diagram

← All diagrams

Find the part on the Engine Mount diagram for your 2003 Kawasaki Vulcan 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

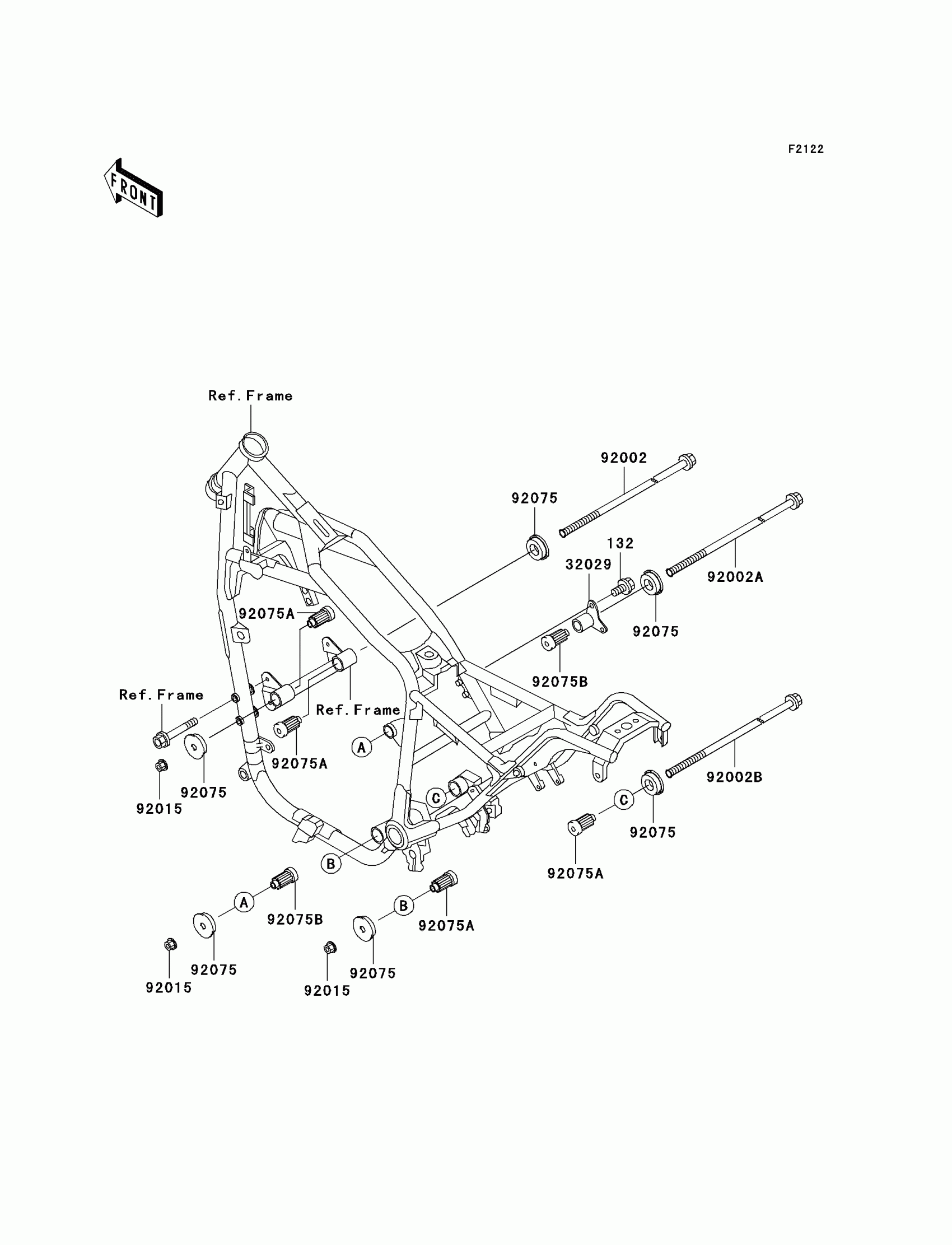

2003 Kawasaki Vulcan 750 Engine Mount Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL,8X20

132J0820

1
Out of stock

32029

BRACKET-ENGINE

32029-1392

1

$44.11

In stock

92002

BOLT,FLANGED,10X285

92002-1206

1

$21.24

In stock

92002A

BOLT,FLANGED,10X260

92002-1454

1

$21.95

In stock

92002B

BOLT,FLANGED,10X330

92002-1540

1
Out of stock

92015

NUT,FLANGED,10MM

92015-1180

1
Out of stock

92075

DAMPER,ENGINE MOUNT

92075-1738

1

$21.76

In stock

92075A

1

$29.30

In stock

92075B

DAMPER,ENGINE MOUNT

92075-1740

1

$41.76

In stock
