2004 Kawasaki Vulcan 500 LTD Engine Mount Diagram

← All diagrams

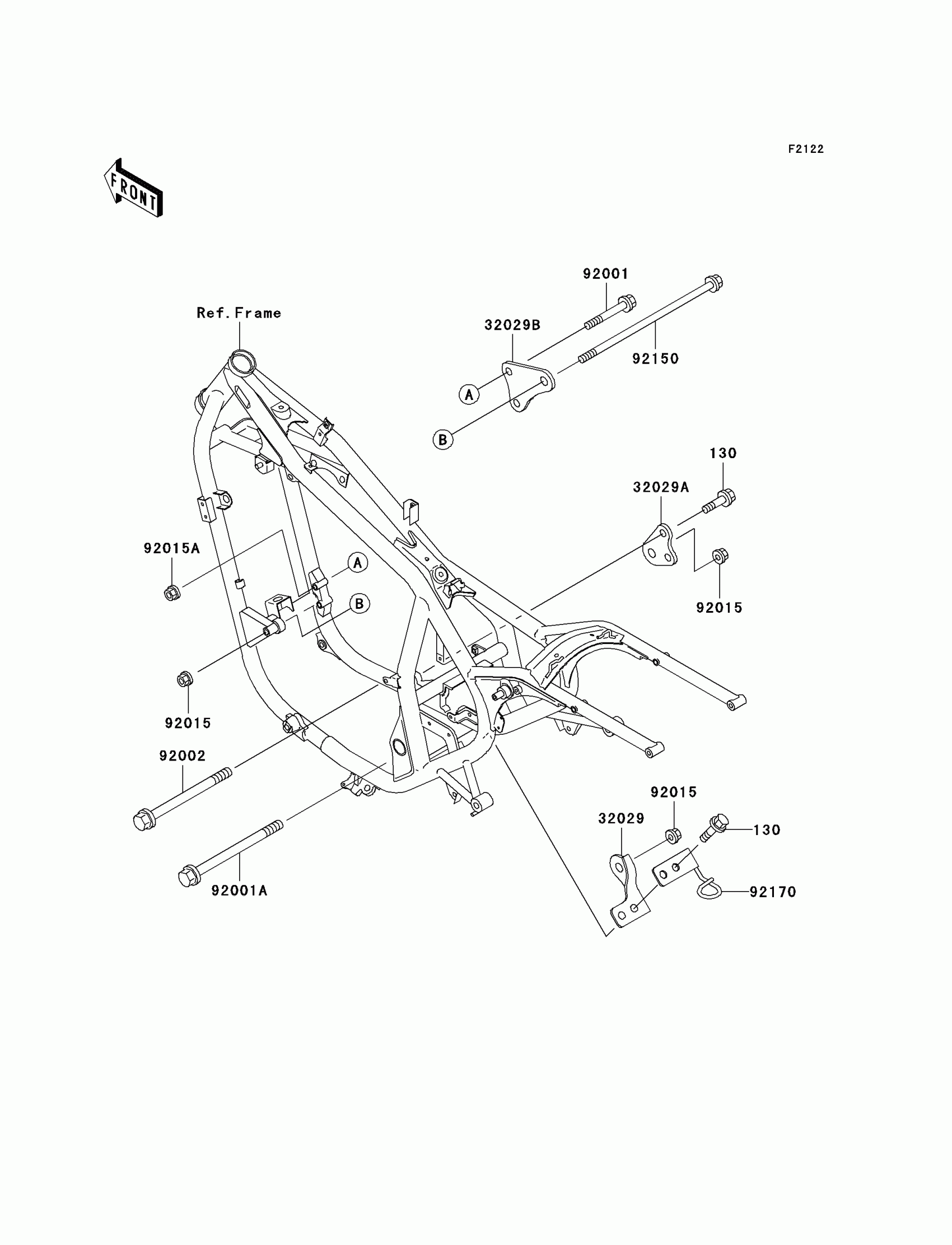

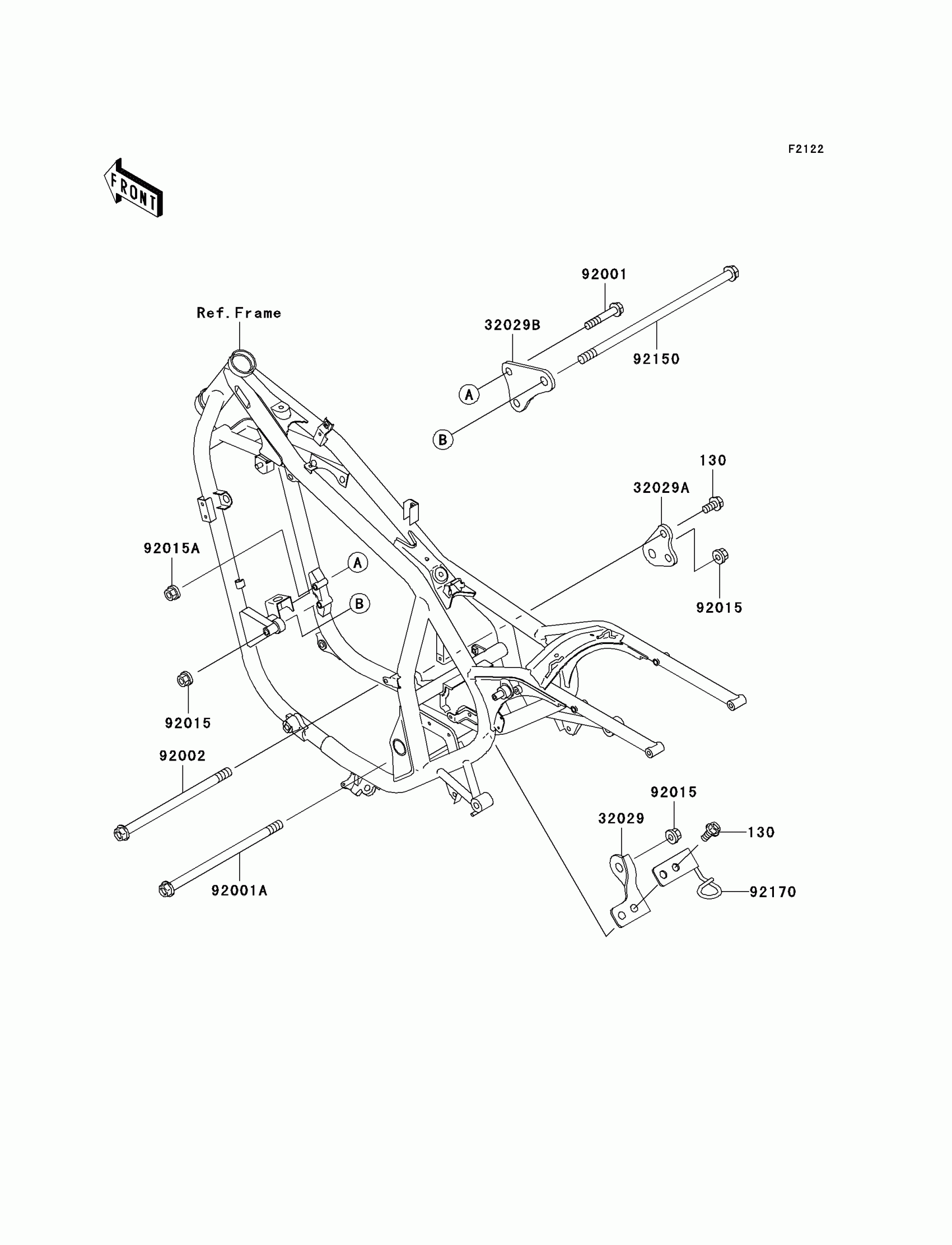

Find the part on the Engine Mount diagram for your 2004 Kawasaki Vulcan 500 LTD, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Kawasaki Vulcan 500 LTD Engine Mount Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,8X16

130J0816

1
Out of stock

32029

1

$12.47

In stock

32029A

1

$10.14

In stock

32029B

1

$14.56

In stock

92001

BOLT,FLANGED,8X45

92001-1613

1

$4.61

In stock

92001A

BOLT,FLANGED,10X180

92001-1621

1

$22.61

In stock

92002

BOLT,FLANGED,10X170

92002-1470

1
Out of stock

92015

NUT,FLANGED,10MM

92015-1180

1
Out of stock

92015A

NUT,FLANGED,8MM,BLACK

92015-1251

1
Out of stock

92150

BOLT,FLANGED,10X240

92150-1742

1

$21.97

In stock

92170

CLAMP,HOSE

92170-1711

1

$18.44

In stock
