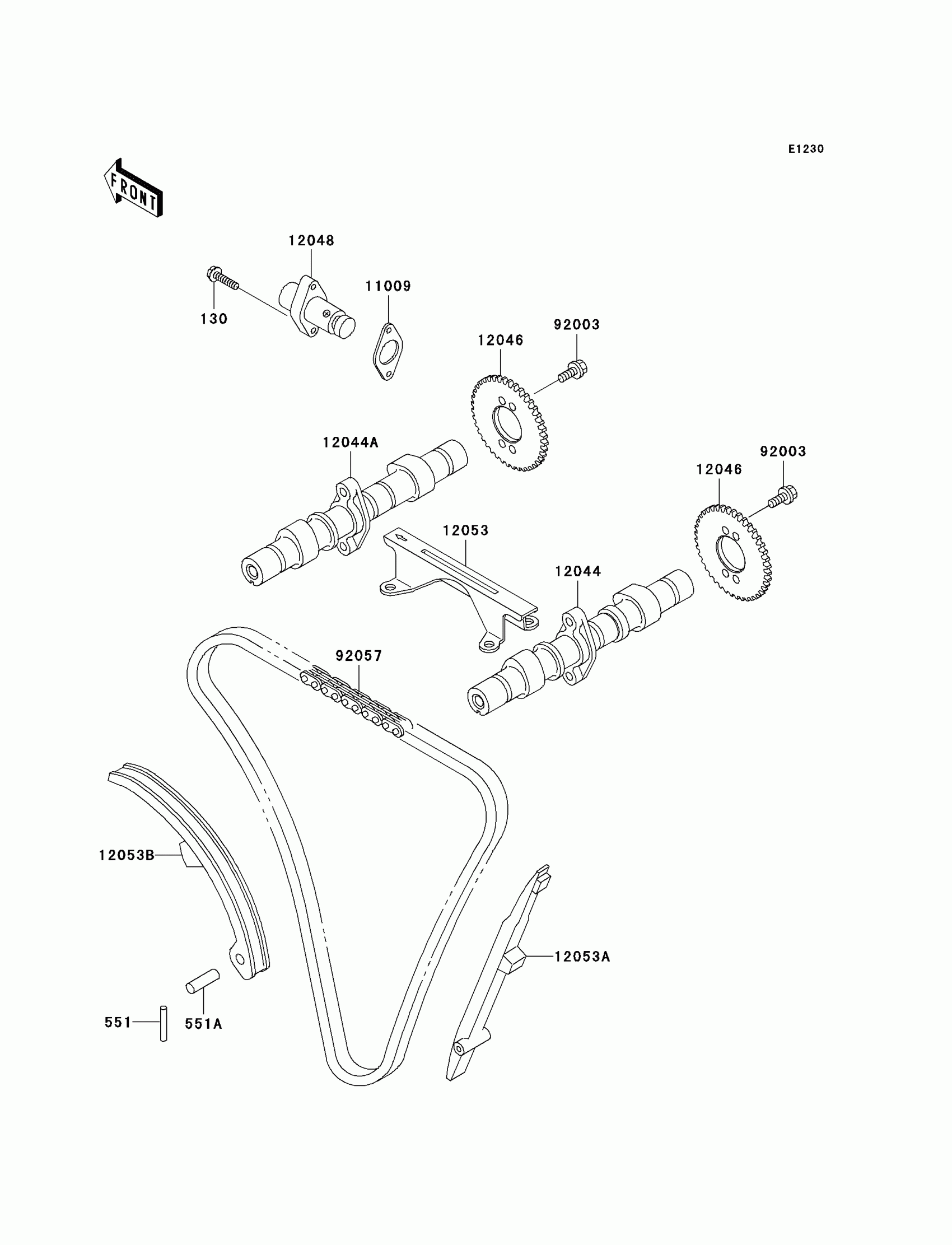

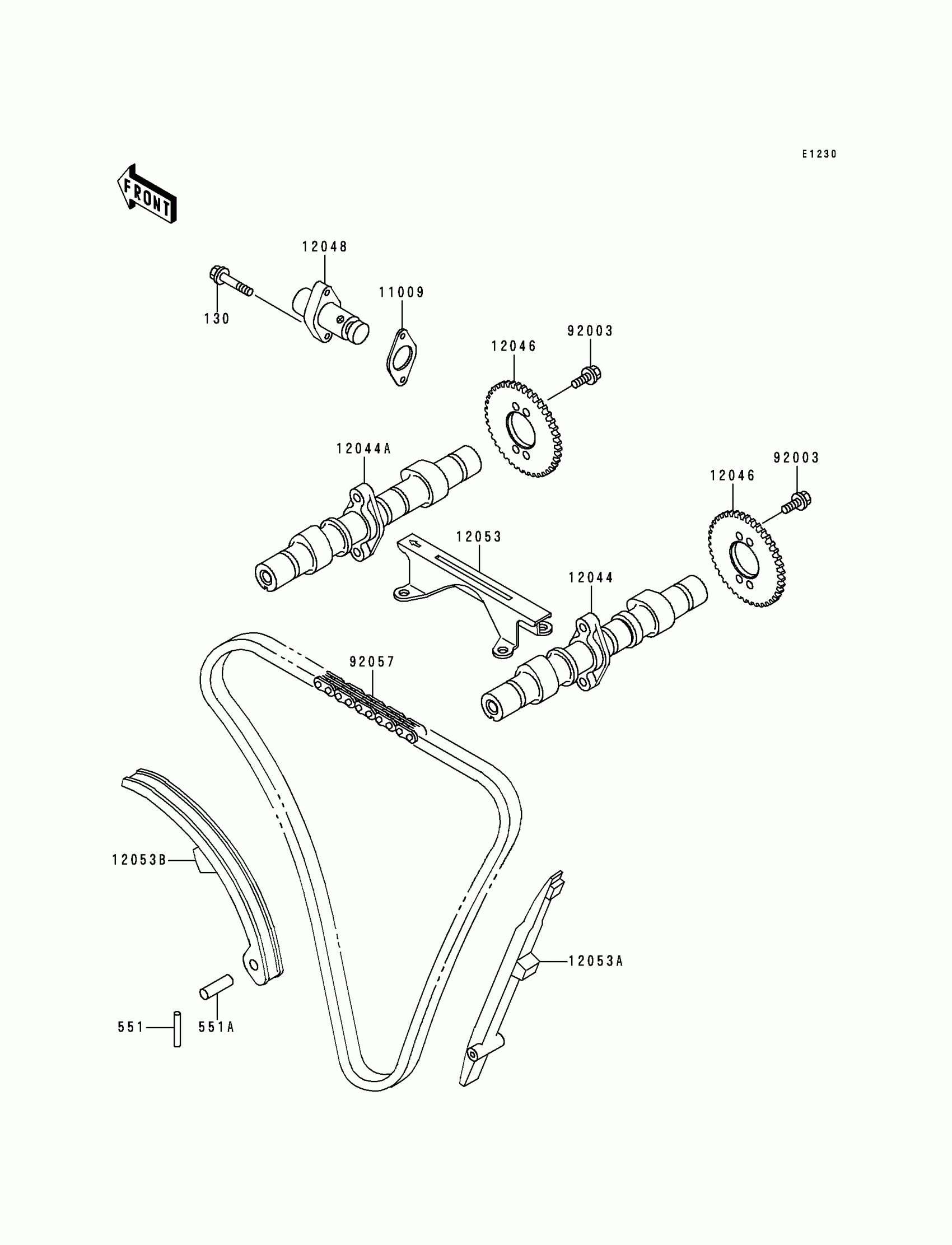

Kawasaki Vulcan 500 LTD Camshaft(s)/Tensioner Diagram

Description

Price

130

BOLT-FLANGED,6X25

130Y0625

Unavailable

551

PIN-DOWEL

551A0432

$4.17

551A

PIN-DOWEL,8X40

551A0840

$4.61

11009

GASKET,TENSIONER

11009-1858

$3.52

12044

CAMSHAFT-VALVE,INTAKE

12044-1285

$474.48

12044A

CAMSHAFT-VALVE,EXHAUST

12044-1286

$474.48

12046

SPROCKET,CAMSHAFT,46T

12046-1075

$77.87

12048

TENSIONER-ASSY,CAM CHAIN

12048-1142

$129.93

12053

GUIDE-CHAIN,UPP

12053-1145

$52.90

12053A

GUIDE-CHAIN,RR

12053-1150

$84.70

12053B

GUIDE-CHAIN,FR

12053-1151

$69.46

92003

BOLT,FLANGED,6X11

92003-208

$3.29

92057

CHAIN,CAM,79RH2015-148L

92057-1188

$128.45
