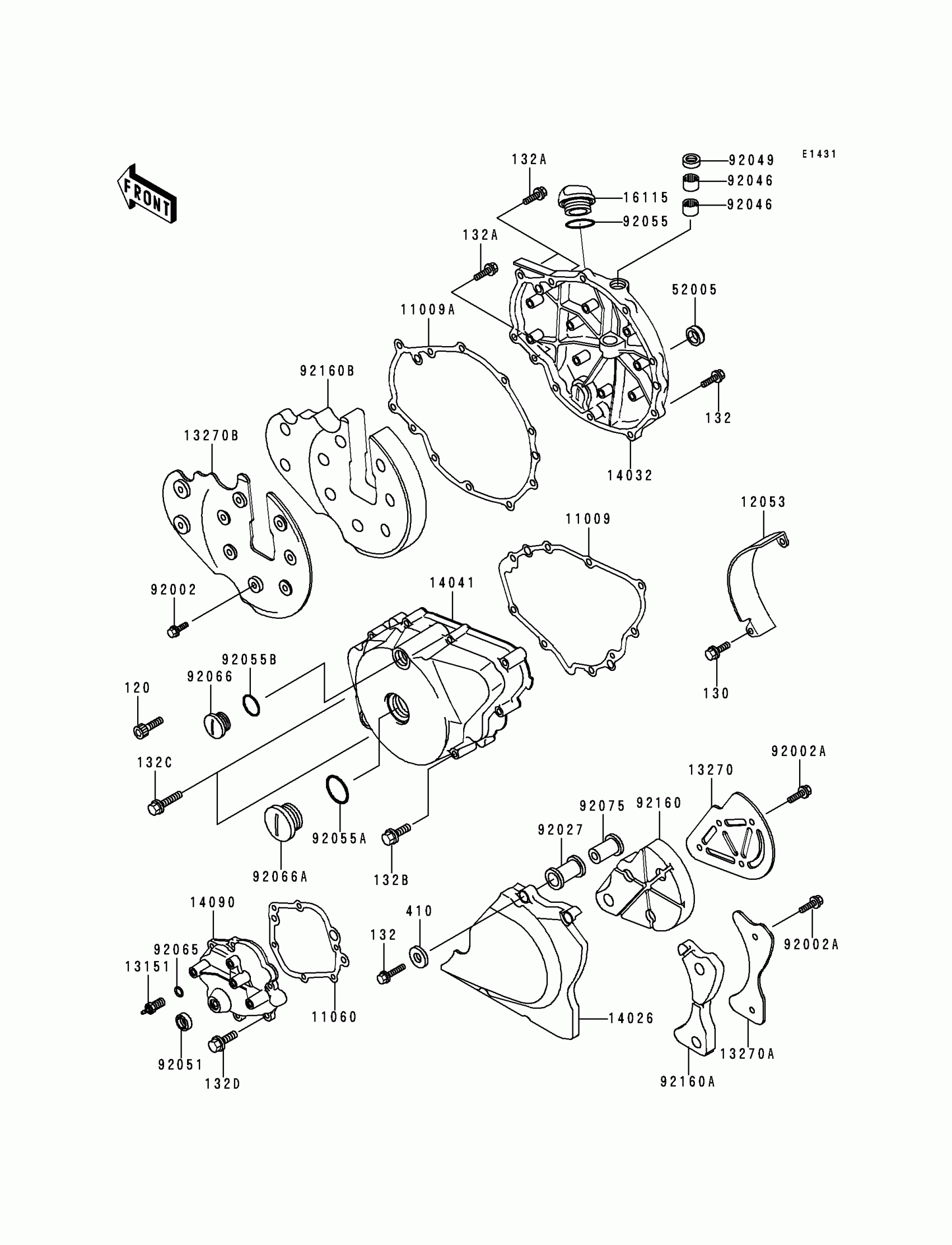

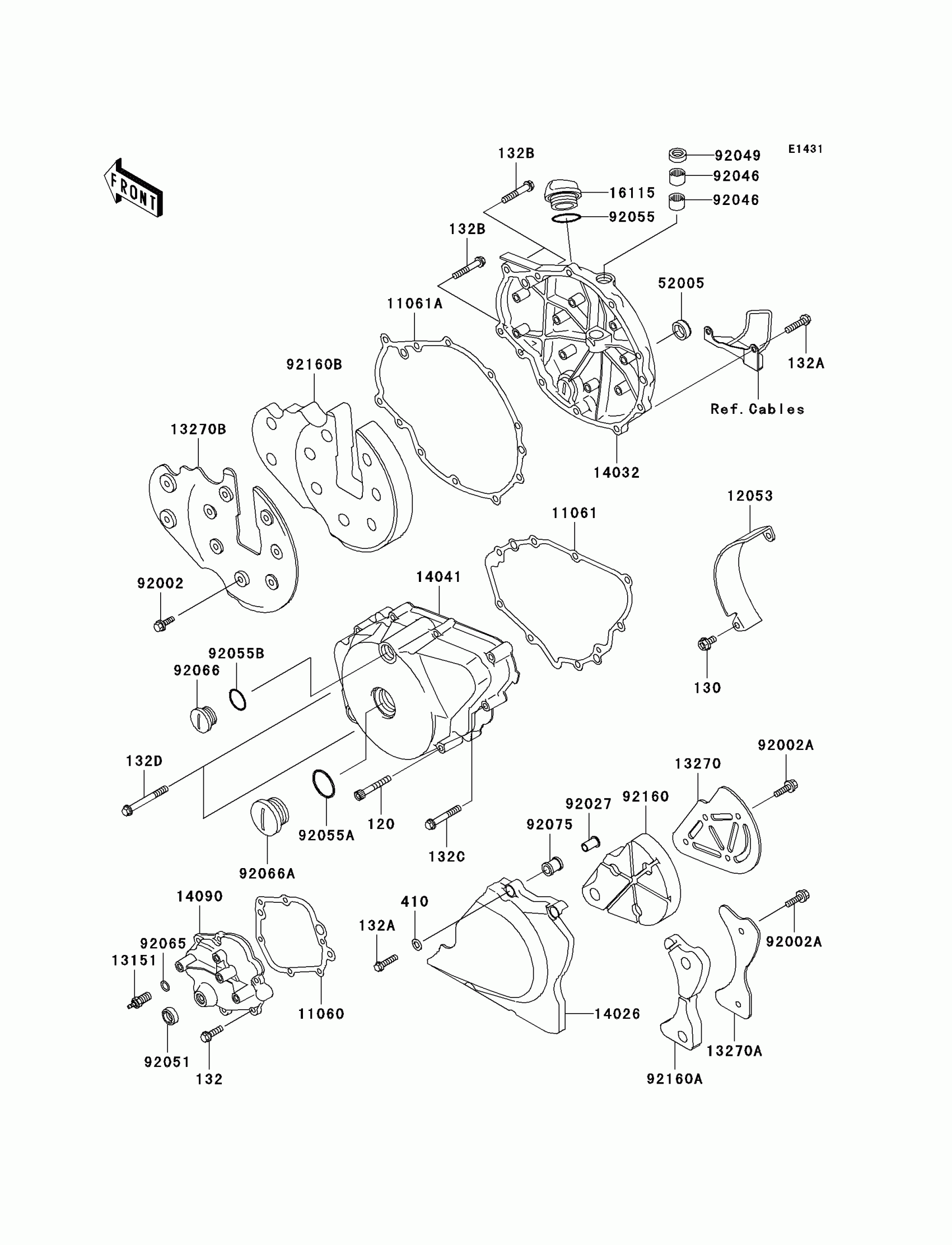

Kawasaki Vulcan 500 LTD Engine Cover(s) Diagram

#

Description
Price

120

BOLT-SOCKET,6X40,BLACK

120S0640

Unavailable

130

BOLT-FLANGED,6X12

130G0612

Unavailable

132

BOLT-FLANGED-SMALL,6X25

132E0625

Unavailable

132A

BOLT-FLANGED-SMALL,6X35

132E0635

$4.61

132B

BOLT-FLANGED-SMALL,6X40

132E0640

Unavailable

132C

BOLT-FLANGED-SMALL,6X55

132E0655

Unavailable

132D

BOLT-FLANGED-SMALL,6X20

132J0620

Unavailable

410

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

11009

GASKET,GENERATOR COVER

11009-1834

Unavailable

11009A

GASKET,CLUTCH COVER

11009-1836

Unavailable

11060

GASKET,CHANGE MECHANISM

11060-1830

$8.98

12053

GUIDE-CHAIN

12053-1215

$14.90

13151

SWITCH-COMP,NEUTRAL

13151-1080

$7.87

13270

PLATE

13270-1558

$10.85

13270A

PLATE

13270-1559

$5.47

13270B

PLATE

13270-1586

$21.22

14026

COVER-CHAIN

14026-1232

$167.37

14032

COVER-CLUTCH

14032-1431

$261.50

14041

COVER-COMP,GENERATOR

14041-1118

Unavailable

14090

COVER,CHANGE MECHANISM

14090-1661

$112.15

16115

CAP-OIL FILLER

16115-1062

$18.64

52005

GAUGE,OIL LEVEL

52005-1009

$13.87

92002

BOLT,6X10

92002-1541

$4.27

92002A

BOLT,6X8

92002-1604

Unavailable

92027

COLLAR

92027-1858

$5.37

92046

BEARING-NEEDLE,HK1210

92046-1010

Unavailable

92049

SEAL-OIL,TB12205.5

92049-1271

$7.08

92051

SEAL-OIL,TB13225.5

92051-005

$5.91

92055

RING-O,31.5X2.6

92055-049

$3.29

92055A

RING-O,27.7X2.4

92055-091

$4.67

92055B

RING-O,20X2

92055-1146

$6.55

92065

GASKET,10.5X16X1

92065-058

$3.03

92066

PLUG,COVER

92066-1397

$14.00

92066A

PLUG

92066-1404

$12.98

92075

DAMPER

92075-1681

$5.37

92160

DAMPER

92160-1687

$101.05

92160A

DAMPER

92160-1688

$61.05

92160B

DAMPER

92160-1710

$159.07
