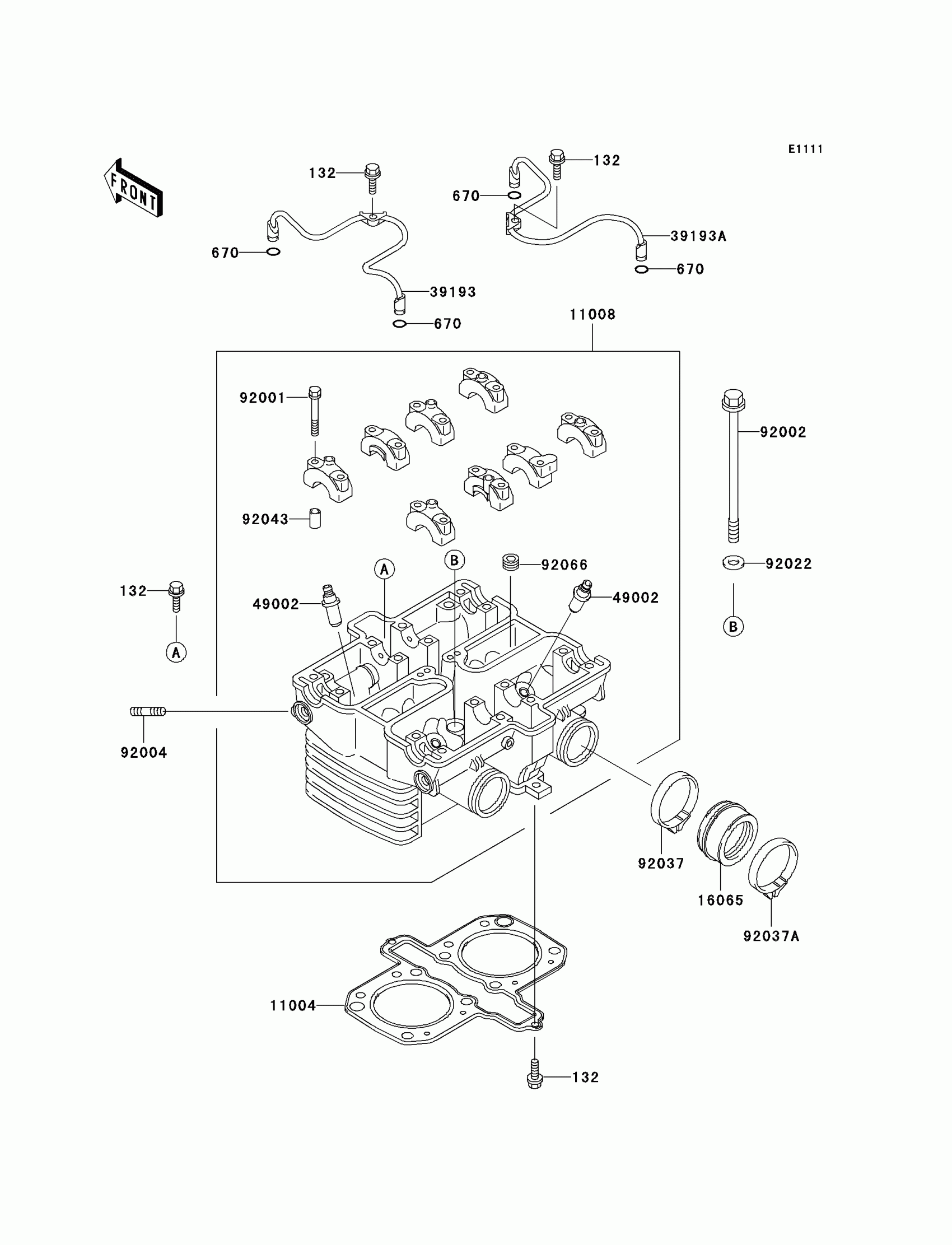

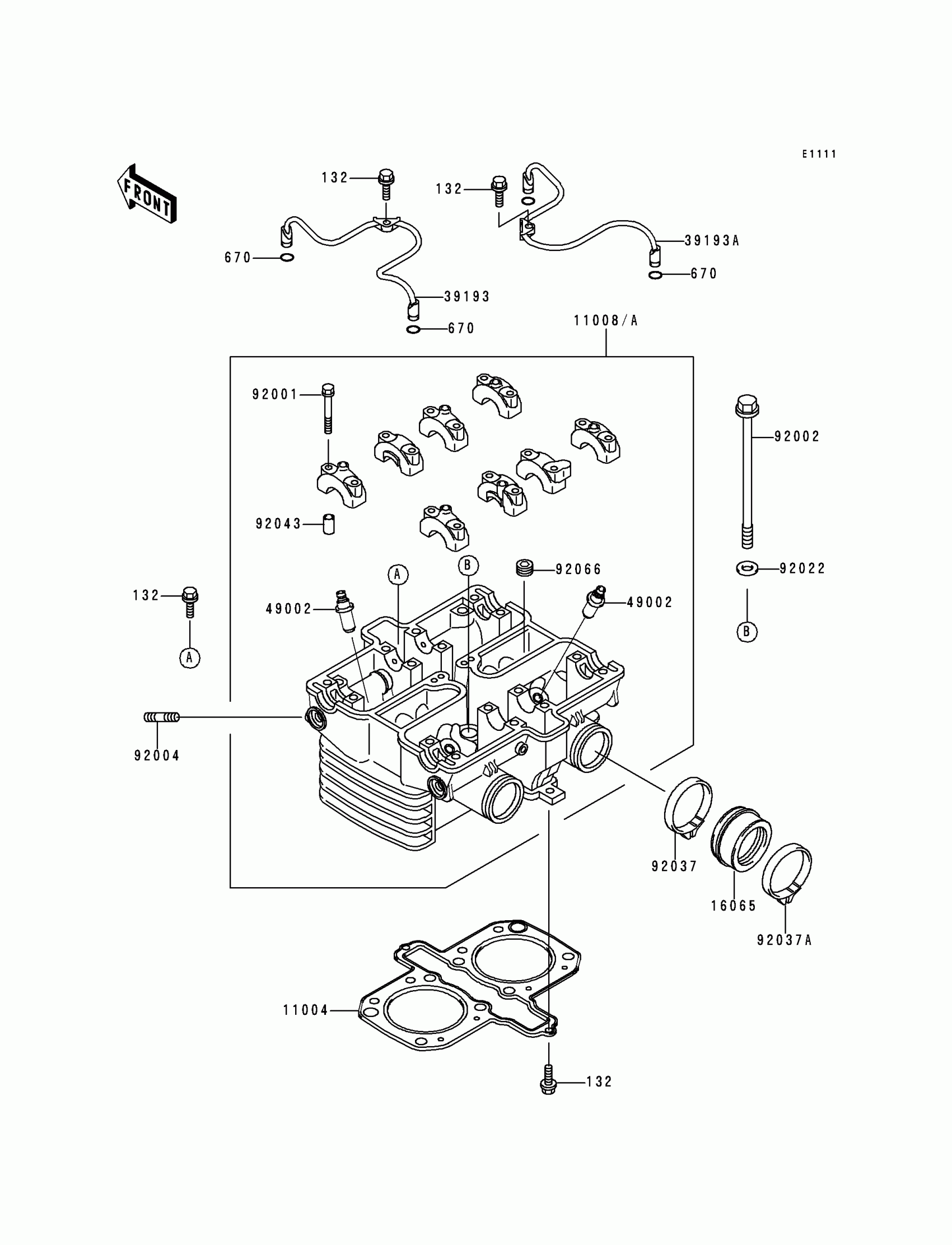

Find the part on the Cylinder Head diagram for your 2000 Kawasaki Vulcan 500 LTD, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2000 Kawasaki Vulcan 500 LTD Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL

132G0620

1
Out of stock

670

O RING,7MM

670D1507

1
Out of stock

11004

GASKET-HEAD

11004-1159

1
Out of stock

11008

HEAD-COMP-CYLINDER

11008-1231

1
Out of stock

16065

HOLDER-CARBURETOR

16065-1320

1
Out of stock

39193

PIPE-OIL,LH

39193-1038

1

$66.82

In stock

39193A

PIPE-OIL,RH

39193-1039

1

$66.82

In stock

49002

GUIDE-VALVE

49002-1052

—
Out of stock

92001

BOLT,6X46

92001-1872

1
Out of stock

92002

BOLT,10X164

92002-1943

1
Out of stock

92004

STUD,8X25

92004-1214

1
Out of stock

92022

WASHER,10.5X20X1.6

92022-1591

1
Out of stock

92037

CLAMP

92037-1523

1
Out of stock

92037A

CLAMP

92037-1843

1
Out of stock

92043

PIN,6.2X8X14

92043-1263

1
Out of stock

92066

PLUG,PT1/2X12.5

92066-1253

1
Out of stock
