2000 Kawasaki Vulcan 500 LTD Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 2000 Kawasaki Vulcan 500 LTD, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

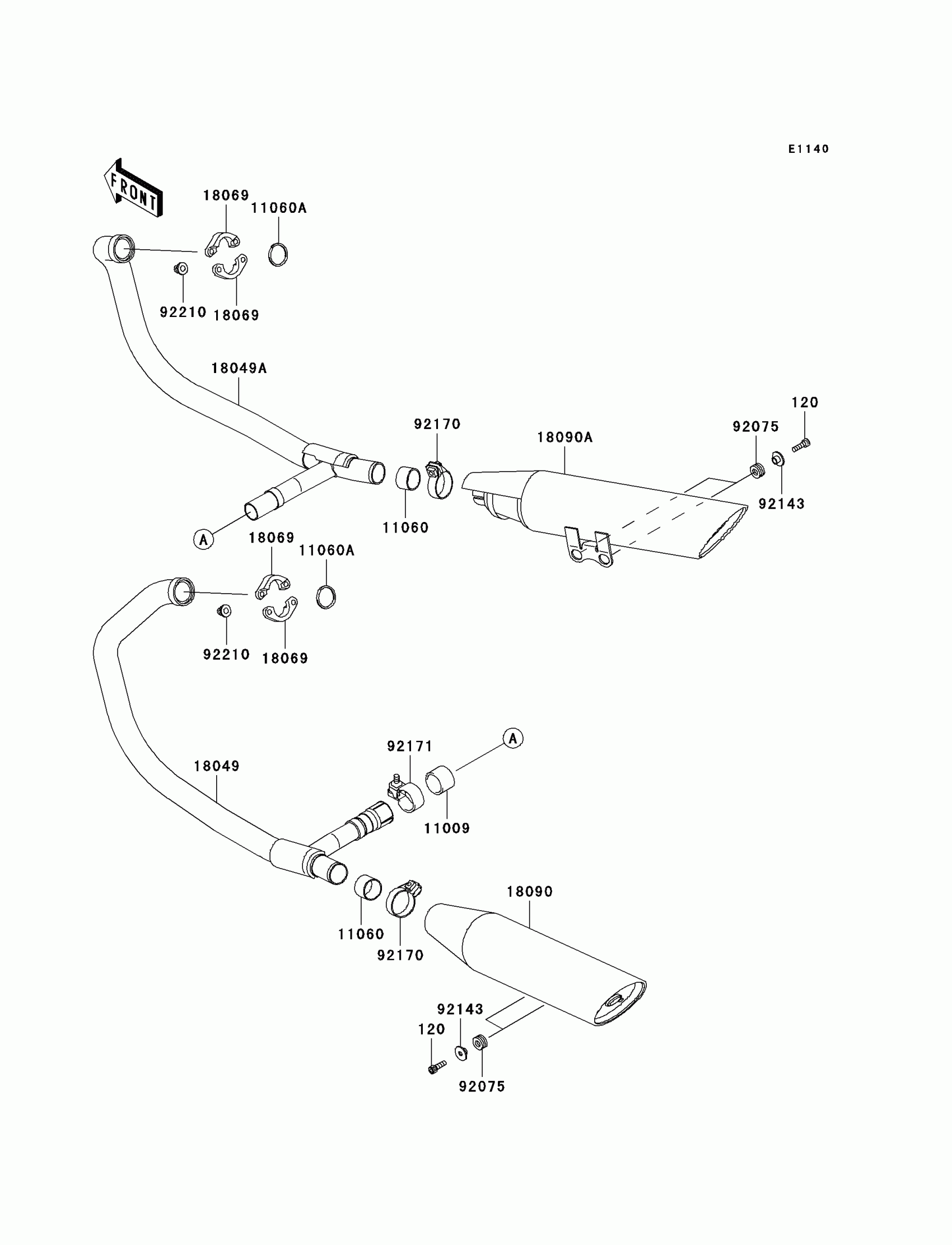

2000 Kawasaki Vulcan 500 LTD Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,MUFFLER CONNECTING

11009-1865

1
Out of stock

11060

1

$36.81

In stock

11060A

1

$6.49

In stock

18049

PIPE-EXHAUST,LH

18049-1751

1

$272.56

In stock

18049A

PIPE-EXHAUST,RH

18049-1752

1

$275.31

In stock

18069

HOLDER-EXHAUST PIPE

18069-1064

1

$34.29

In stock

18090

1

$550.76

In stock

18090A

1

$556.32

In stock

92015

NUT,CAP,8MM

92015-1371

1

$3.97

In stock

92075

DAMPER

92075-1898

1

$3.72

In stock

92143

COLLAR

92143-1850

1

$9.27

In stock

92150

BOLT,SOCKET,8X25

92150-1912

1

$3.72

In stock

92170

CLAMP

92170-1715

1

$15.05

In stock

92170A

CLAMP

92170-1716

1

$20.40

In stock
