2000 Kawasaki Vulcan Radiator Diagram

← All diagrams

Find the part on the Radiator diagram for your 2000 Kawasaki Vulcan, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

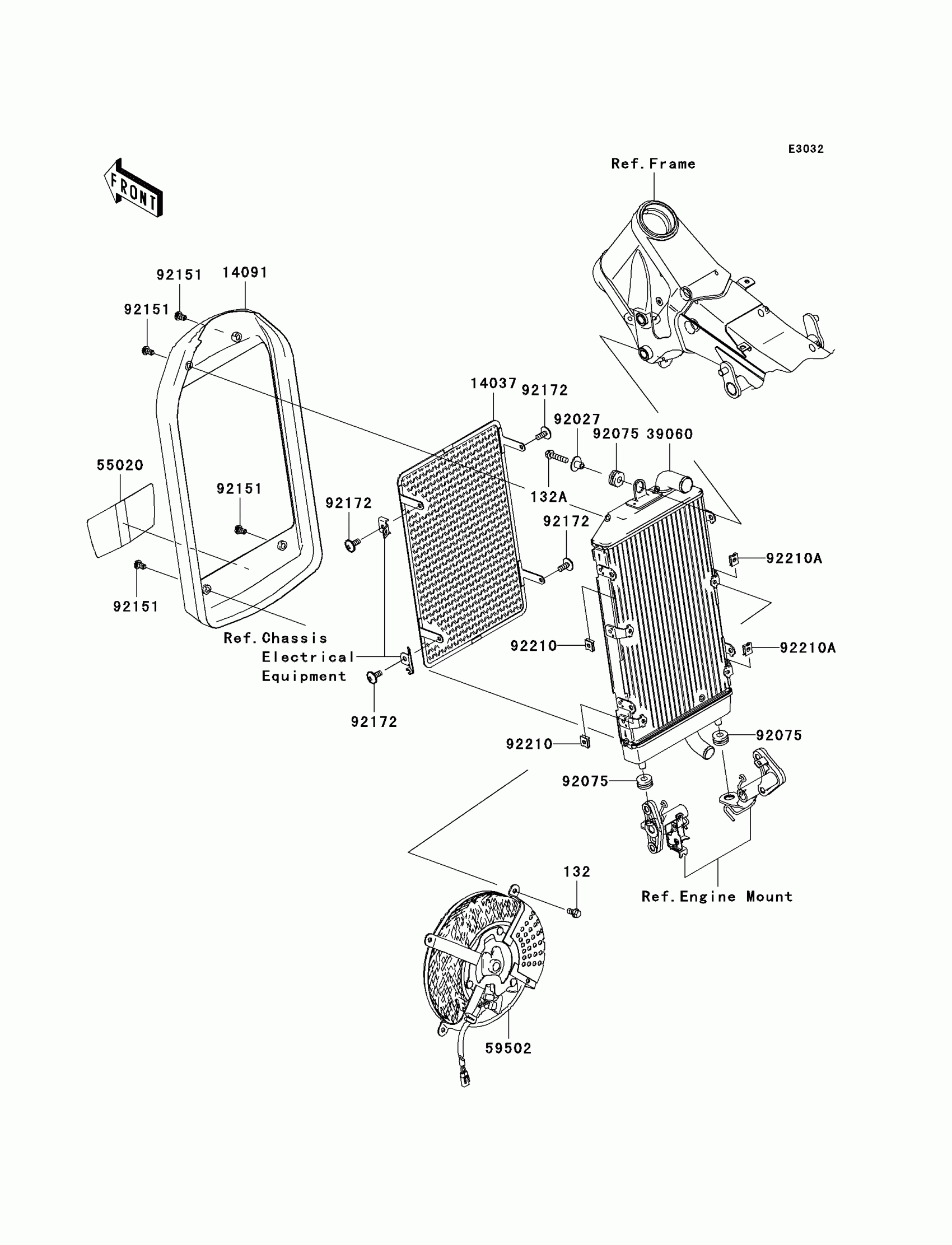

2000 Kawasaki Vulcan Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL,6X10

132J0610

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X20

132L0620

1
Out of stock

14037

SCREEN

14037-0005

1

$82.66

In stock

14091

COVER

14091-0246

1
Out of stock

39060

RADIATOR

39060-0005

1

$841.62

In stock

55020

GUARD

55020-0100

1

$32.59

In stock

59502

FAN-ASSY

59502-0005

1

$922.22

In stock

92027

COLLAR,L=13.1,BLACK

92027-1450

1

$4.93

In stock

92075

DAMPER,10X24X12

92075-1690

1

$3.97

In stock

92151

BOLT,6X10

92151-1809

1

$2.32

In stock

92172

SCREW,6X14

92172-0004

1

$2.29

In stock

92210

NUT

92210-1125

1
Out of stock

92210A

NUT

92210-1323

1
Out of stock
