Description

Price

132

BOLT-FLANGED-SMALL

132G0620

Unavailable

482

CIRCLIP-TYPE-E,10MM

482J0100

$0.65

551

PIN-DOWEL

551A0412

$1.39

12046

SPROCKET,DRIVE,17T

12046-0010

$17.47

12046A

SPROCKET,15T

12046-0011

Unavailable

12053

GUIDE-CHAIN

12053-0005

$36.78

13107

SHAFT

13107-0007

$44.04

16085

GEAR,OIL PUMP,27T

16085-0006

$54.62

16142

COVER-PUMP

16142-0014

$54.62

16154

ROTOR-PUMP,FEED

16154-0001

$87.65

16154A

ROTOR-PUMP,SCAVENGE OILPAN

16154-0004

$83.67

16154B

ROTOR-PUMP,SCAVENGE CLUTCH

16154-0013

$83.67

16160

BODY,OIL PUMP

16160-0002

$104.37

92022

WASHER,13.2X20X0.5

92022-1224

$3.29

92026

SPACER

92026-0039

$37.11

92043

PIN,17.9X5.0

92043-1444

$3.85

92057

CHAIN,DID25FH

92057-0029

$11.73

92145

SPRING

92145-0036

$8.59

92153

BOLT,6X15.4

92153-0322

$11.44

92153A

BOLT,FLANGED,8X23

92153-0549

$8.08

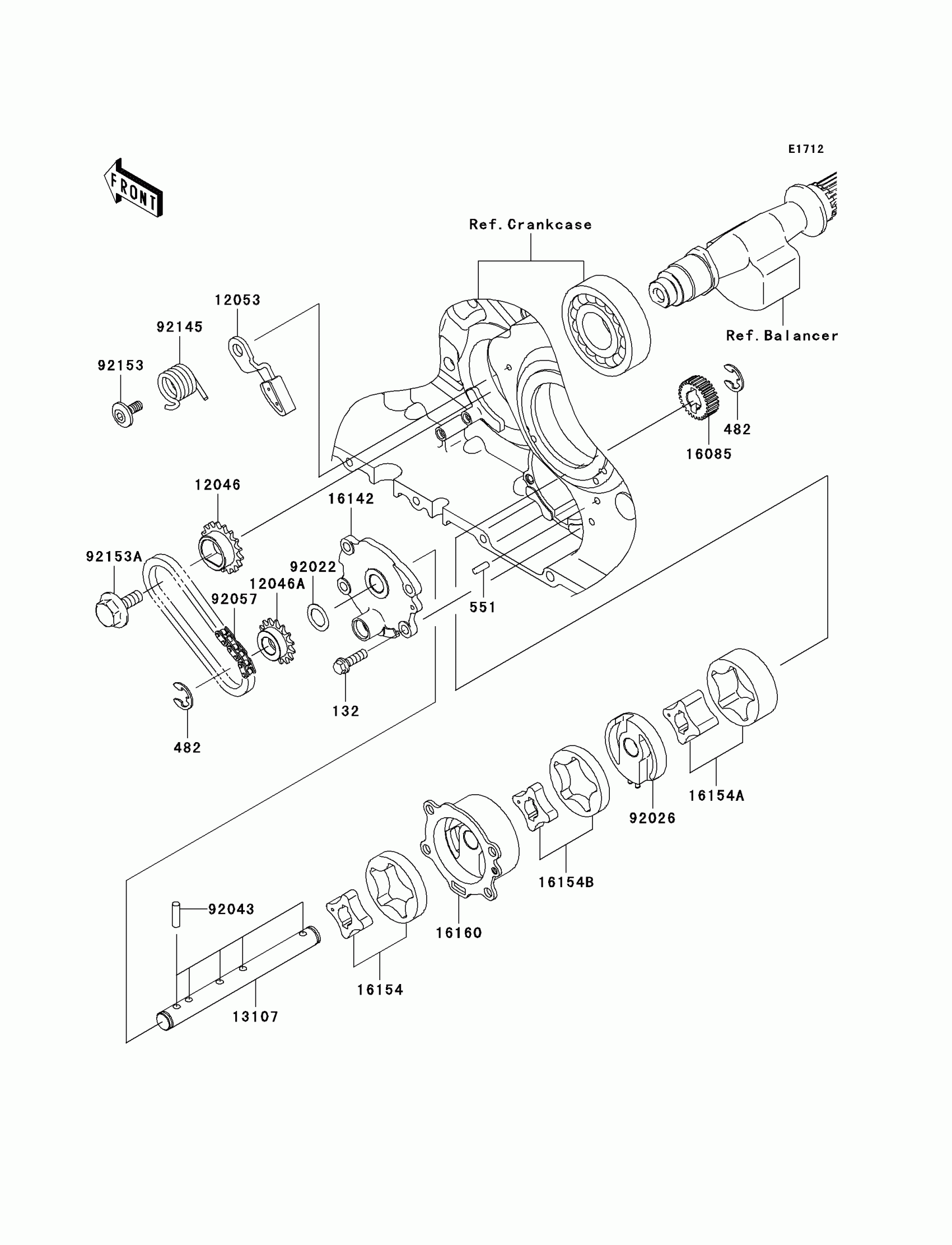

Kawasaki Vulcan 2000 Oil Pump Diagram
