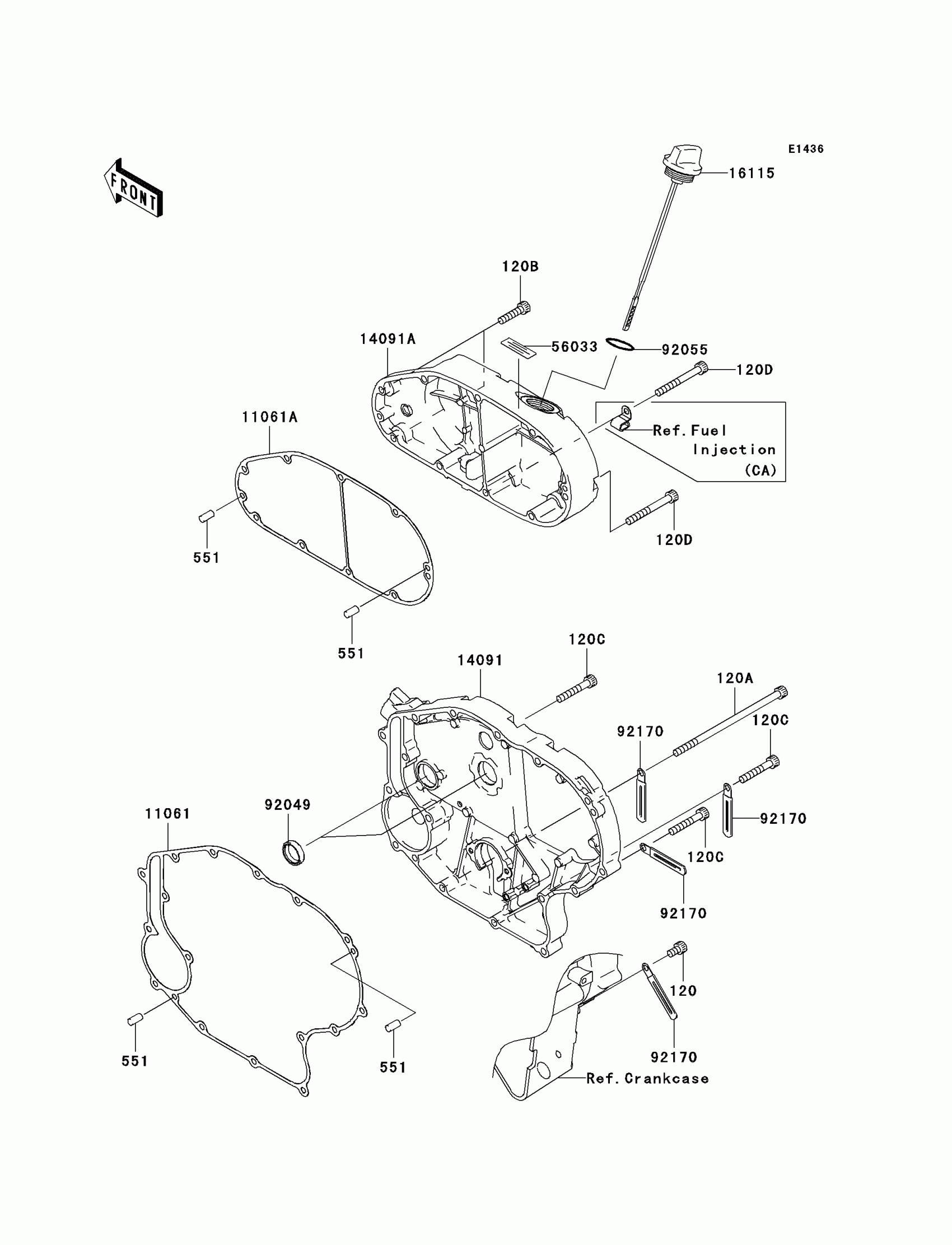

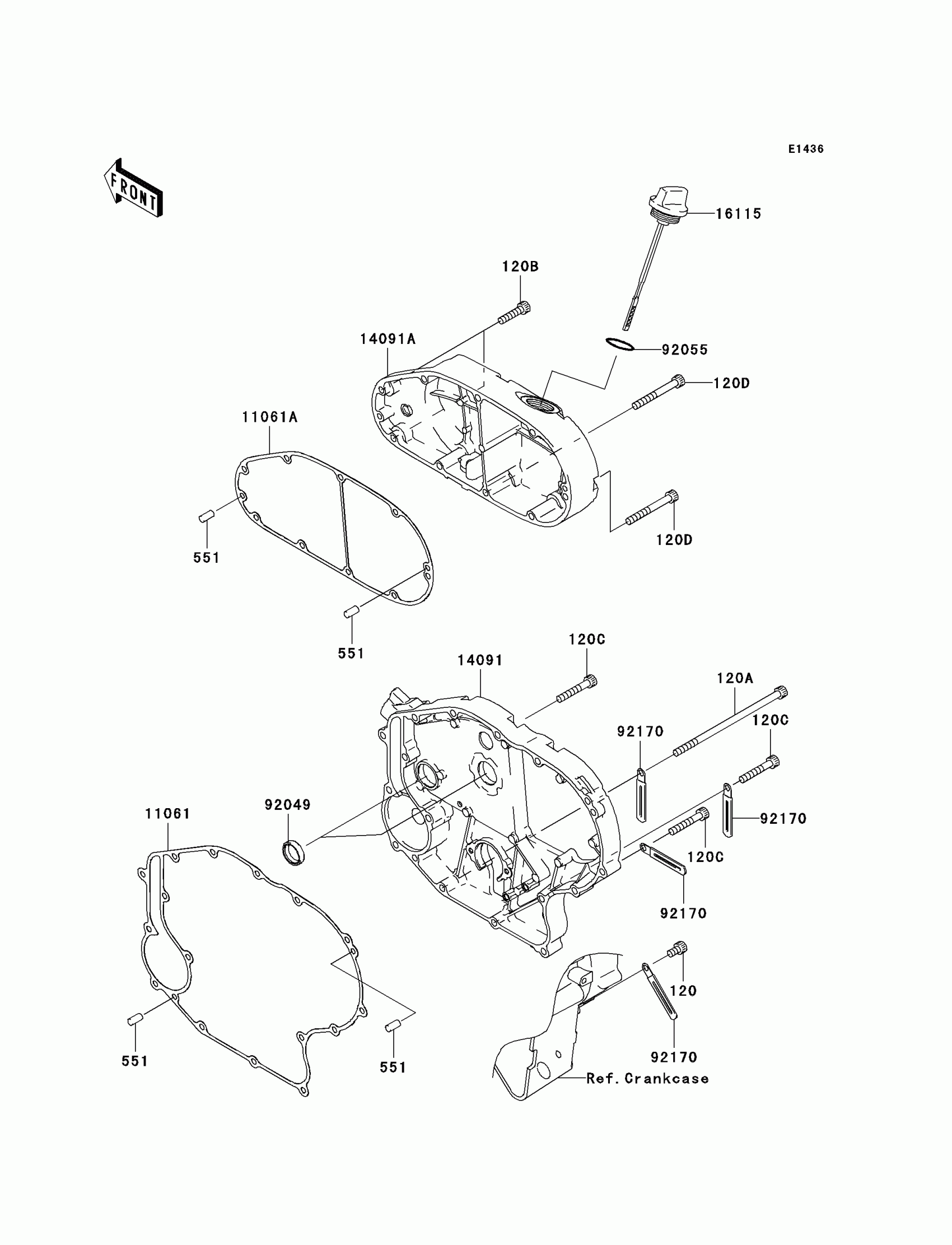

Kawasaki Vulcan 2000 Right Engine Cover(s) Diagram

Description

Price

120

BOLT-SOCKET,6X10

120R0610

$1.76

120A

BOLT-SOCKET,6X125

120R06125

$11.32

120B

BOLT-SOCKET,6X25

120R0625

$3.75

120C

BOLT-SOCKET,6X35

120R0635

$4.42

120D

BOLT-SOCKET,6X50

120R0650

$4.68

551

PIN-DOWEL,6X12

551A0612

$0.78

11061

GASKET,TRANSMISSION,INSIDE

11061-0017

$32.25

11061A

GASKET,TRANSMISSION,OUTSIDE

11061-0018

$21.66

14091

COVER,TRANSMISSION,INSIDE

14091-0251

$444.23

14091A

COVER,TRANSMISSION OUTSIDE

14091-0263

$592.89

16115

CAP-OIL FILLER

16115-0010

$115.08

56033

LABEL-MANUAL,OIL CAPACITY

56033-0050

$5.95

92049

SEAL-OIL,20X26X6

92049-0019

$14.39

92055

RING-O,31.5X2.6

92055-049

$3.29

92170

CLAMP

92170-1514

$3.29
