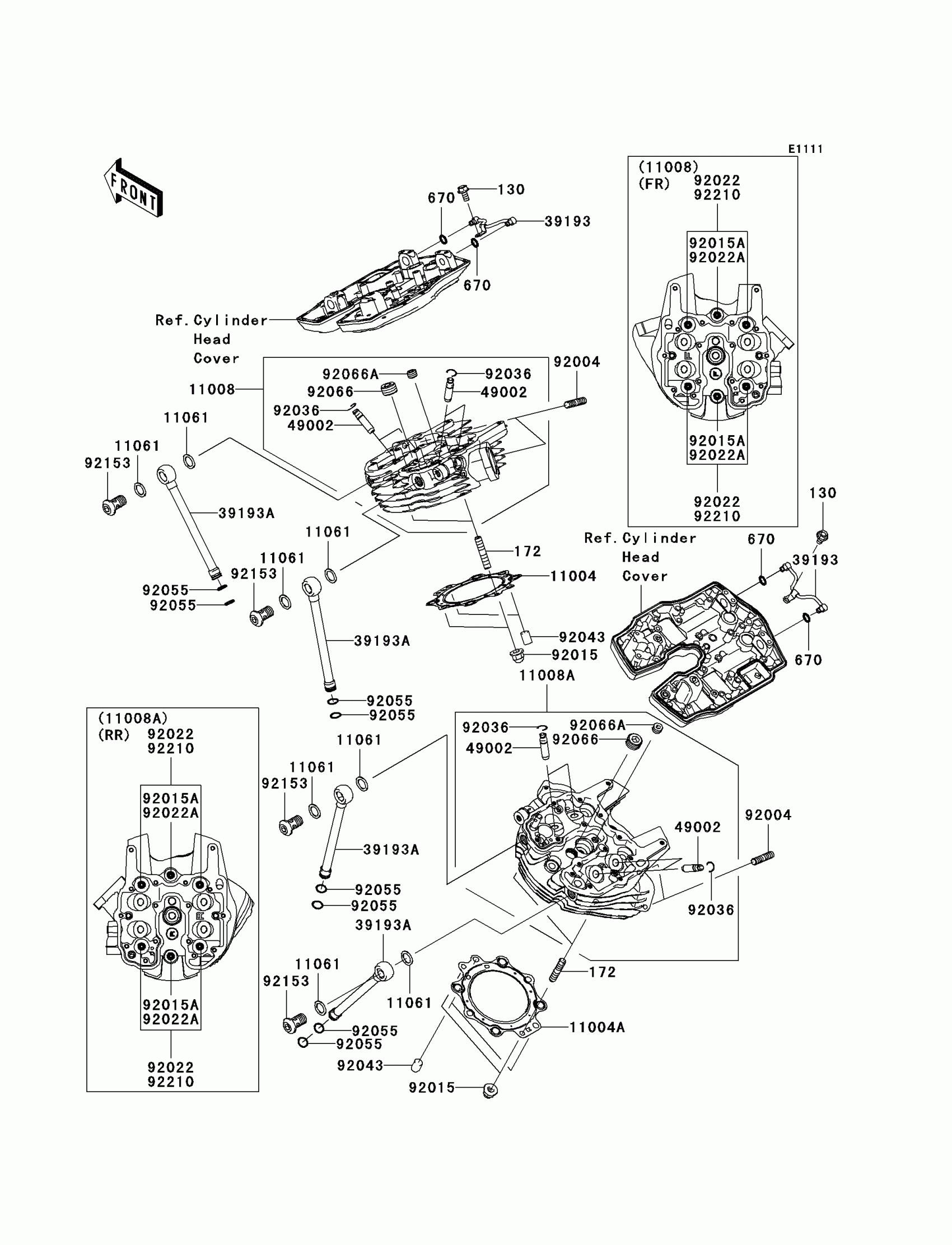

Kawasaki Vulcan 2000 Cylinder Head Diagram

#

Description
Price

130

BOLT-FLANGED,6X12

130H0612

Unavailable

172

BOLT-STUD,8X25

172G0825

$2.46

670

O RING

670D1505

$3.29

11004

GASKET-HEAD,FR

11004-0001

$70.76

11004A

GASKET-HEAD,RR

11004-0002

$70.76

11008

HEAD-COMP-CYLINDER,FR

11008-0032

$1,457.82

11008A

HEAD-COMP-CYLINDER,RR

11008-0033

$1,528.09

11061

GASKET,OIL PIPE

11061-0110

$1.44

39193

PIPE-OIL,ROCKER SHAFT

39193-0019

$47.13

39193B

PIPE-OIL,HEAD-CYLINDER

39193-0024

$73.41

49002

GUIDE-VALVE

49002-0008

Unavailable

92004

STUD,8X22

92004-1249

$2.95

92015

NUT,CAP,8MM

92015-1370

Unavailable

92015A

NUT,FLANGED,10MM

92015-1727

$3.29

92022

WASHER,12.3X25X3.2

92022-1293

$5.75

92022A

WASHER,10.2X20X1.5

92022-3742

$3.19

92036

RING-SNAP,VALVE GUIDE

92036-023

$0.48

92043

PIN,10X14

92043-1506

$2.30

92055

RING-O,14.8X1.9

92055-0005

$4.61

92066

PLUG,PT1/2X12.5

92066-0002

$6.85

92066A

PLUG,PT1/4X8.9

92066-1260

$3.81

92153

BOLT

92153-0363

$37.11

92210

NUT,12MM

92210-0115

$4.95
