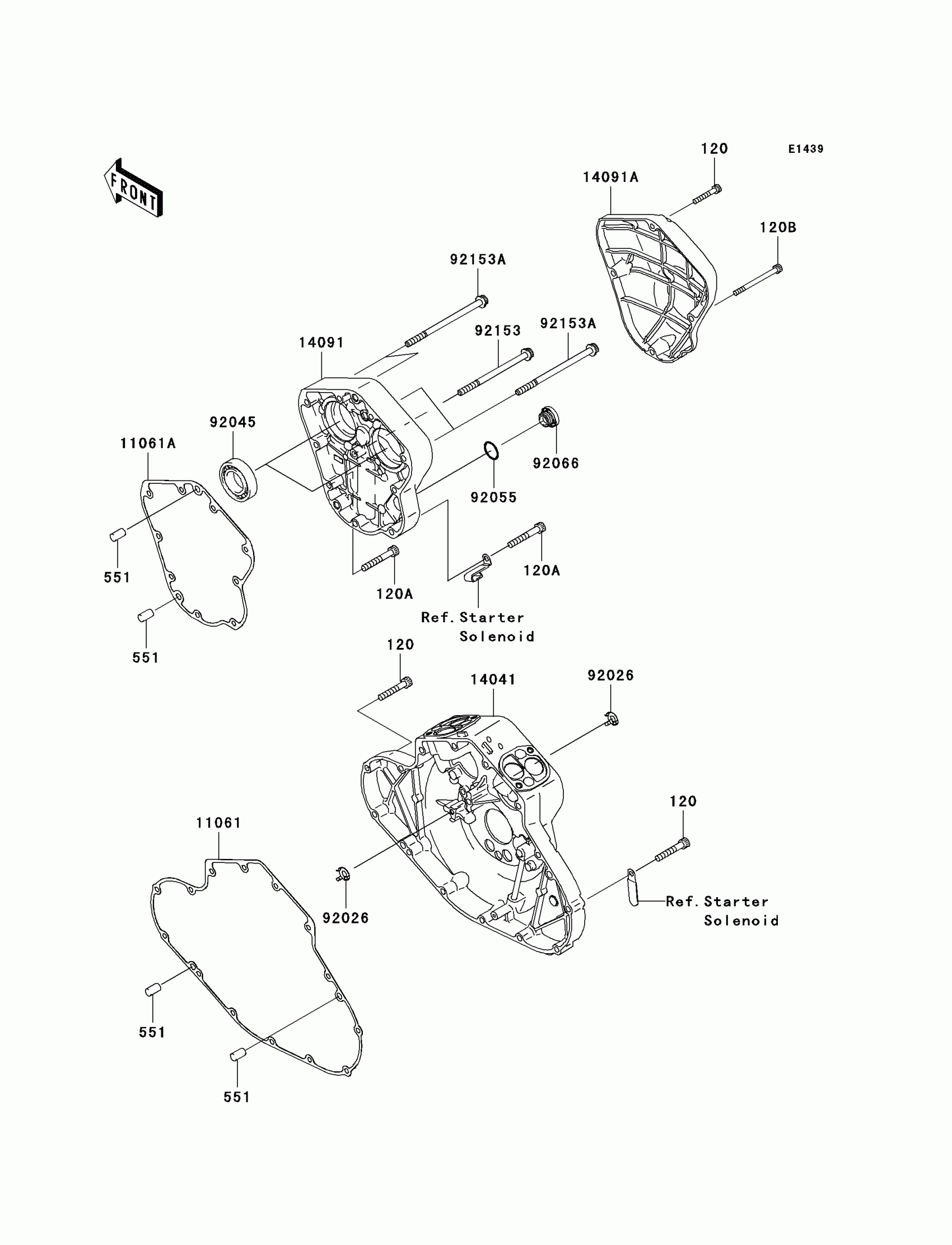

Kawasaki Vulcan 2000 Cam Cover(s) Diagram

Description

Price

120

BOLT-SOCKET,6X35

120R0635

$4.42

120A

BOLT-SOCKET,6X40

120R0640

$4.42

120B

BOLT-SOCKET,6X70

120R0670

$4.61

551

PIN-DOWEL,8X14

551A0814

$0.93

11061

GASKET,CAM,INSIDE

11061-0019

$66.49

11061A

GASKET,CAM,MIDDLE

11061-0020

$21.66

14041

COVER-COMP

14041-0002

$598.55

14091

COVER,CAM,MIDDLE

14091-0036

$259.60

14091A

COVER,CAM

14091-0165

$465.63

92026

SPACER

92026-0010

$6.78

92045

BEARING-BALL,60/28

92045-1176

$29.09

92055

RING-O,20X2

92055-1146

$6.55

92066

PLUG

92066-1456

$13.90

92153

BOLT,6X95

92153-0320

$8.68

92153A

BOLT,6X105

92153-0321

$11.95
