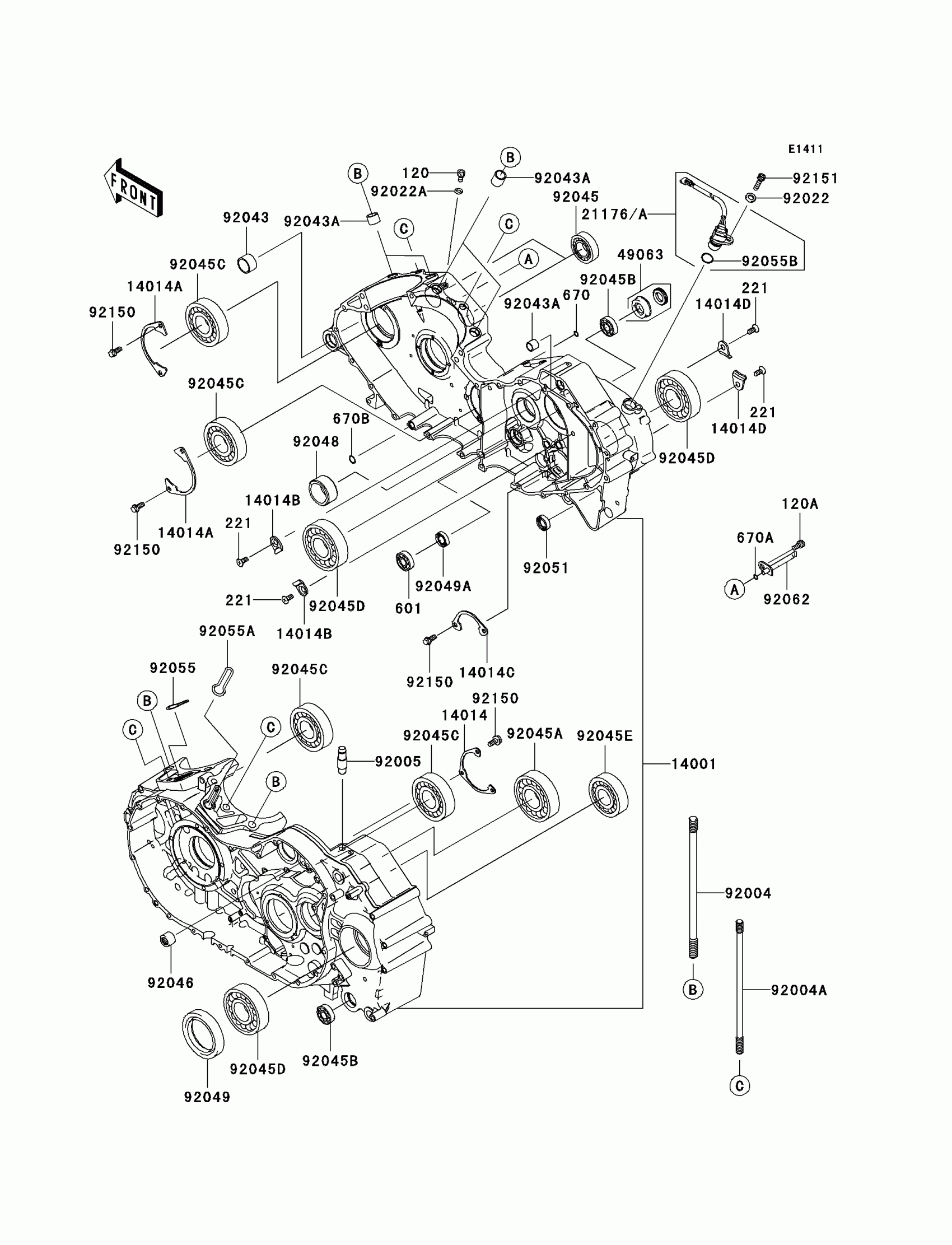

Kawasaki Vulcan 2000 Crankcase Diagram

#

Description
Price

120

BOLT-SOCKET,6X10

120R0610

$1.76

120A

BOLT-SOCKET,6X12

120R0612

$1.63

221

SCREW-CSK-CROS,6X14

221B0614

Unavailable

601

BEARING-BALL

601A6001

$8.88

670

O RING

670D1505

$3.29

670A

O RING,6MM

670D1506

$1.23

670B

O RING,10MM

670D2010

$1.41

14001

SET-CRANKCASE

14001-5392

$2,392.98

14014

PLATE-POSITION

14014-0001

$10.83

14014A

PLATE-POSITION

14014-0002

$10.83

14014B

PLATE-POSITION

14014-0003

$4.17

14014C

PLATE-POSITION

14014-0004

$4.42

14014D

PLATE-POSITION

14014-0011

$4.61

21176A

SENSOR,SPEED

21176-0031

$184.06

49063

SEAL-MECHANICAL

49063-1055

$16.33

92004

STUD,12X217

92004-0008

$32.59

92004A

STUD,10X206

92004-0009

$18.78

92005

FITTING,BREATHER

92005-0015

$24.24

92022

WASHER,6.5X11.5X2

92022-1506

$3.53

92022A

WASHER,6.2X11X1

92022-304

$2.76

92043

PIN,24X14

92043-0032

$8.29

92043A

PIN,13X16X14

92043-1608

$3.81

92045

BEARING-BALL,60/22

92045-0002

$37.10

92045A

BEARING-BALL,6306LU

92045-0022

Unavailable

92045B

BEARING-BALL,6001JRXLLU/5K

92045-1151

$22.11

92045C

BEARING-BALL,63/28

92045-1189

$48.89

92045D

BEARING-BALL,6306SH2

92045-1190

$36.30

92045E

BEARING-BALL,6305RHR4SH2

92045-1254

$47.67

92046

BEARING-NEEDLE,HK1212

92046-1163

$14.37

92048

RACE

92048-1103

$22.93

92049

SEAL-OIL

92049-0010

$23.22

92049A

SEAL-OIL,SC 12X22X5

92049-1228

$7.08

92051

SEAL-OIL,TB13225.5

92051-005

$5.91

92055

RING-O,FR CYLINDER BASE

92055-0007

$3.95

92055A

RING-O,RR CYLINDER BASE

92055-0008

$3.95

92055B

RING-O

92055-1638

Unavailable

92062

NOZZLE

92062-0002

$24.46

92150

BOLT,6X14

92150-1916

$2.30

92151

BOLT,SOCKET,6X20

92151-3774

$1.35
