2000 Kawasaki Vulcan Chain Cover Diagram

← All diagrams

Find the part on the Chain Cover diagram for your 2000 Kawasaki Vulcan, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

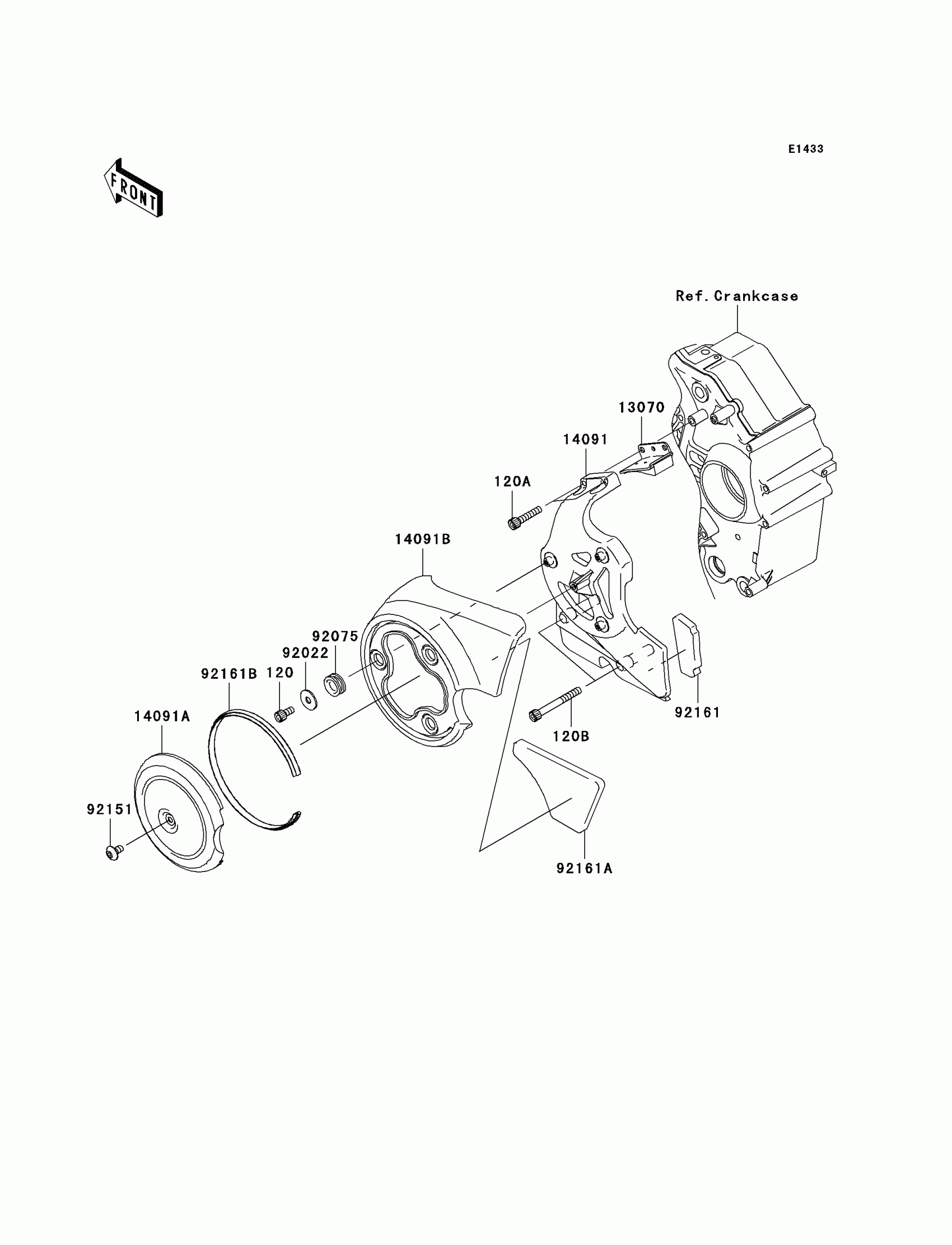

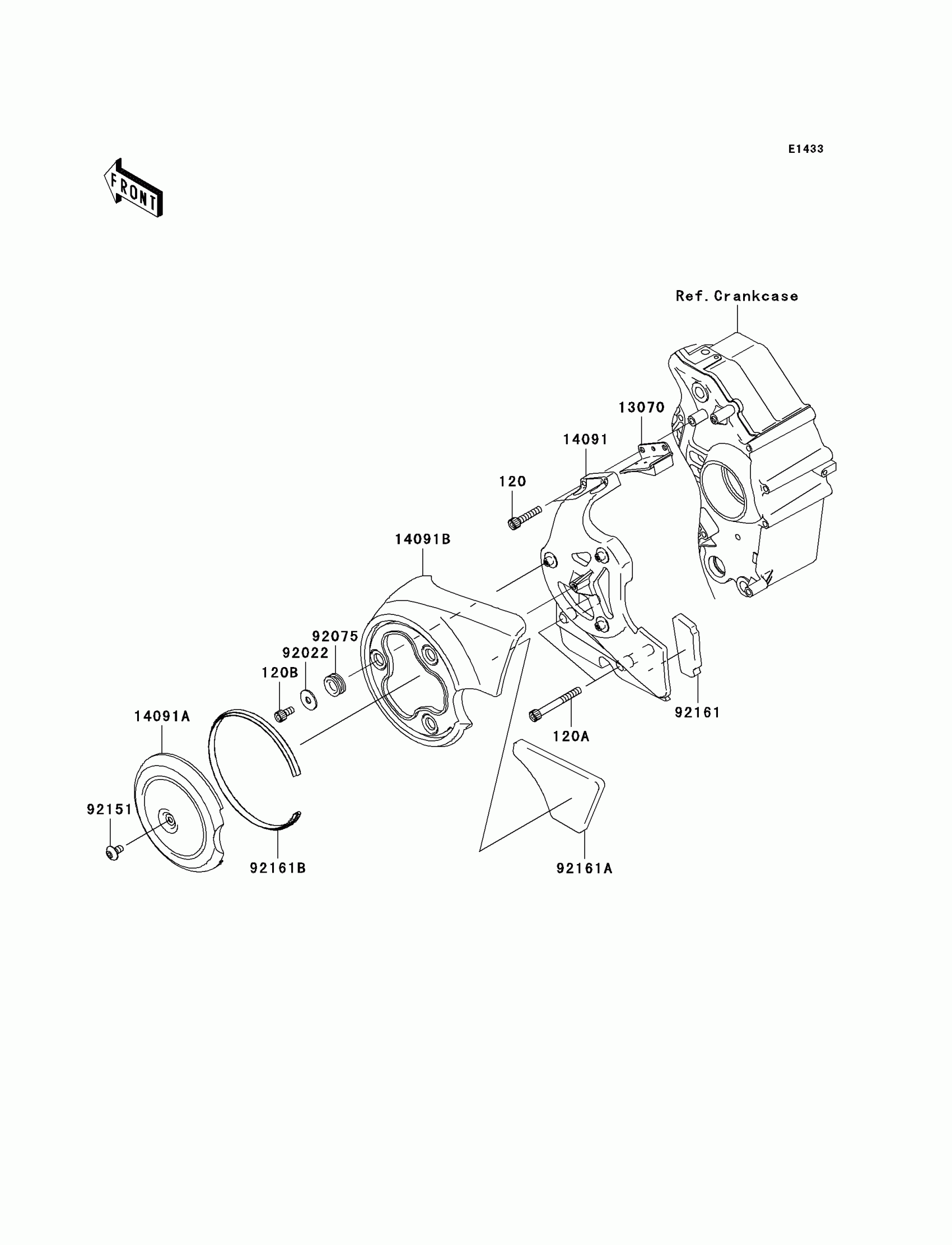

2000 Kawasaki Vulcan Chain Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,6X12

120R0612

1
Out of stock

120A

BOLT-SOCKET,6X30

120W0630

1
Out of stock

120B

BOLT-SOCKET,6X55

120W0655

1
Out of stock

13070

GUIDE,BELT

13070-0039

1
Out of stock

14091

COVER,PULLEY,INSIDE

14091-0040

1
Out of stock

14091A

COVER,PULLEY,OUTSIDE

14091-0042

1
Out of stock

14091B

COVER,PULLEY MIDDLE

14091-0247

1
Out of stock

92022

WASHER,6.5X20X1.5

92022-3710

1
Out of stock

92075

DAMPER

92075-1634

1
Out of stock

92151

BOLT,SOCKET,6X12

92151-1940

1
Out of stock

92161

DAMPER

92161-0098

1
Out of stock

92161A

DAMPER

92161-0099

1
Out of stock

92161B

DAMPER

92161-0136

1
Out of stock
