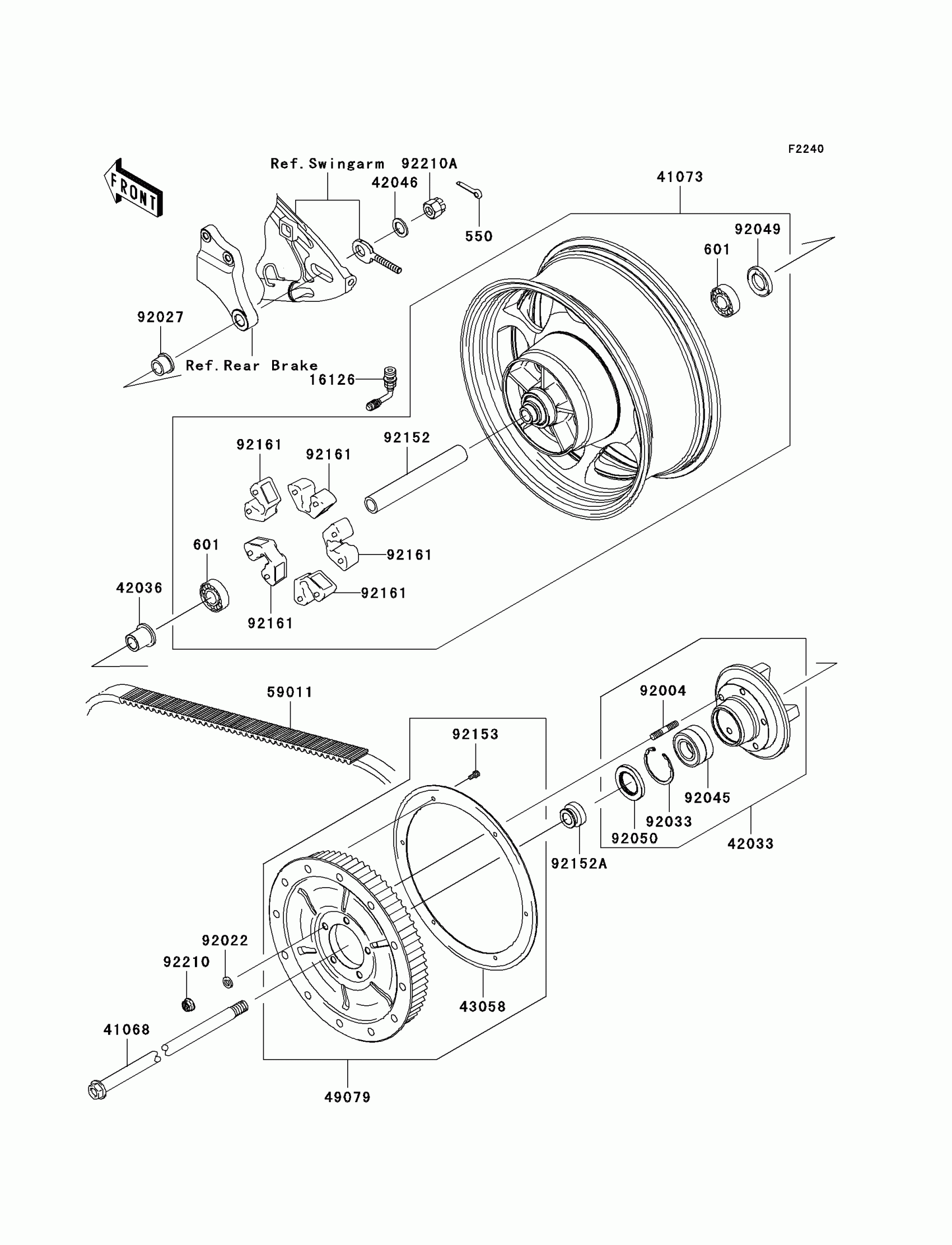

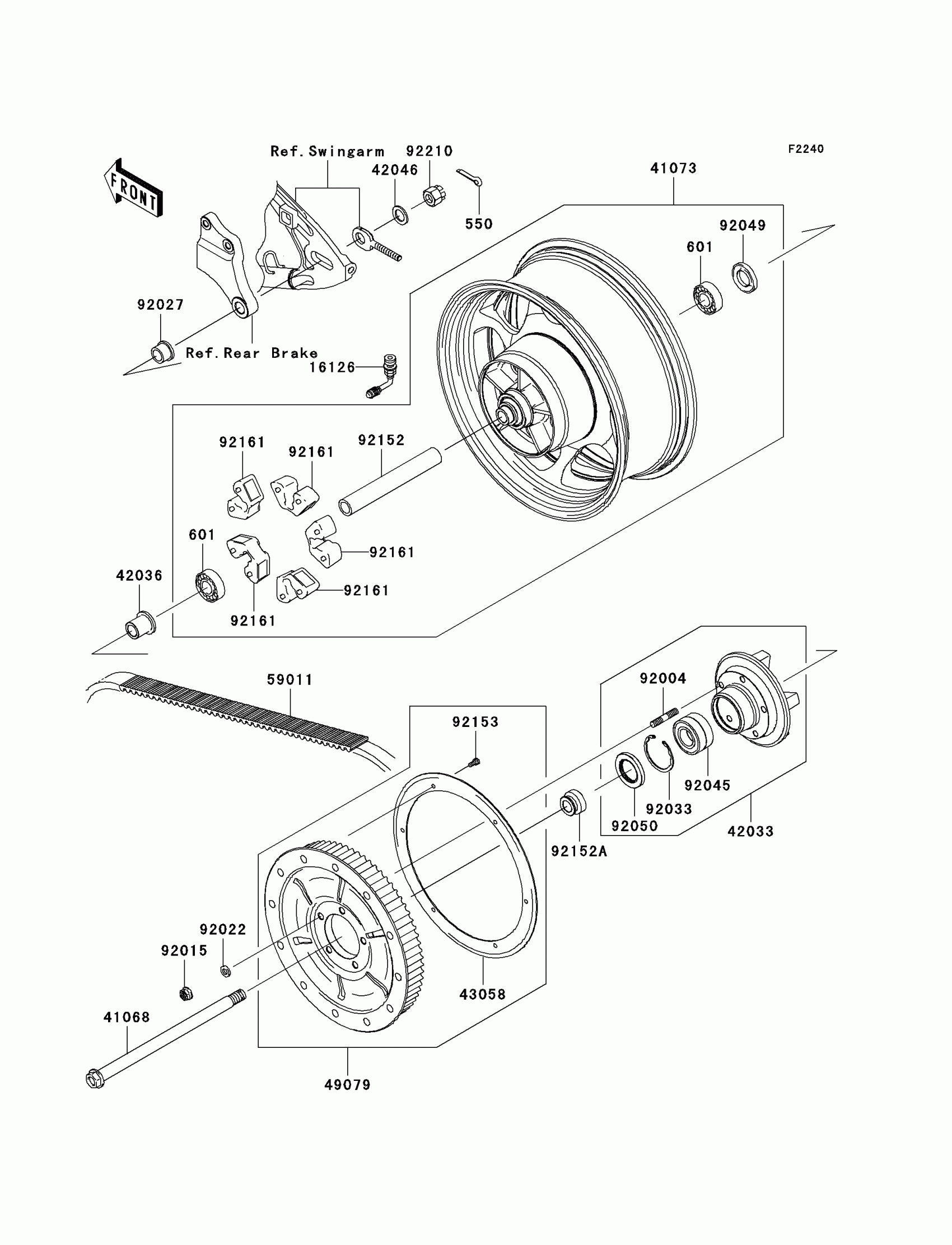

Kawasaki Vulcan 2000 Rear Wheel/Chain Diagram

#

Description
Price

550

PIN-COTTER,4.0X35

550D4035

$1.57

601

BEARING-BALL,#6304UUC3

601B6304UU

$30.87

16126

VALVE

16126-1365

$20.69

41068

AXLE,RR

41068-0007

$128.45

41073

WHEEL-ASSY,RR

41073-0061

Unavailable

42033

COUPLING-ASSY,RR HUB

42033-0020

Unavailable

42036

SLEEVE,RR HUB COUPLING,L=39

42036-0027

$43.10

42046

WASHER,21X33X2.6

42046-003

$3.85

43058

RING,REAR PULLEY

43058-0004

$76.95

49079

PULLEY-BELT,P.SILVER

49079-0004-458

Unavailable

59011

BELT,DRIVE,133T

59011-0004

$655.97

92004

STUD,10X35

92004-0016

$5.59

92015

NUT,FLANGED,10MM

92015-1335

$1.85

92022

WASHER,10.5X19X3.2

92022-1820

$3.85

92027

COLLAR,RR AXLE,L=21.5

92027-1902

$23.73

92033

RING-SNAP,62MM

92033-1044

$8.59

92045

BEARING-BALL,6206LUD2C3/2AS

92045-0045

$74.74

92049

SEAL-OIL,28X52X5

92049-1061

$16.11

92050

SEAL-OIL,AJN40627

92050-027

$16.96

92152

COLLAR,RR HUB,L=210

92152-0051

Unavailable

92152A

COLLAR,RR AXLE,LH,L=24

92152-0321

$23.68

92153

BOLT,SOCKET,6X12

92153-0827

$3.49

92161

DAMPER,SHOCK,RR HUB

92161-0043

$29.62

92210

NUT,CASTLE,18MM

92210-1134

$7.49
