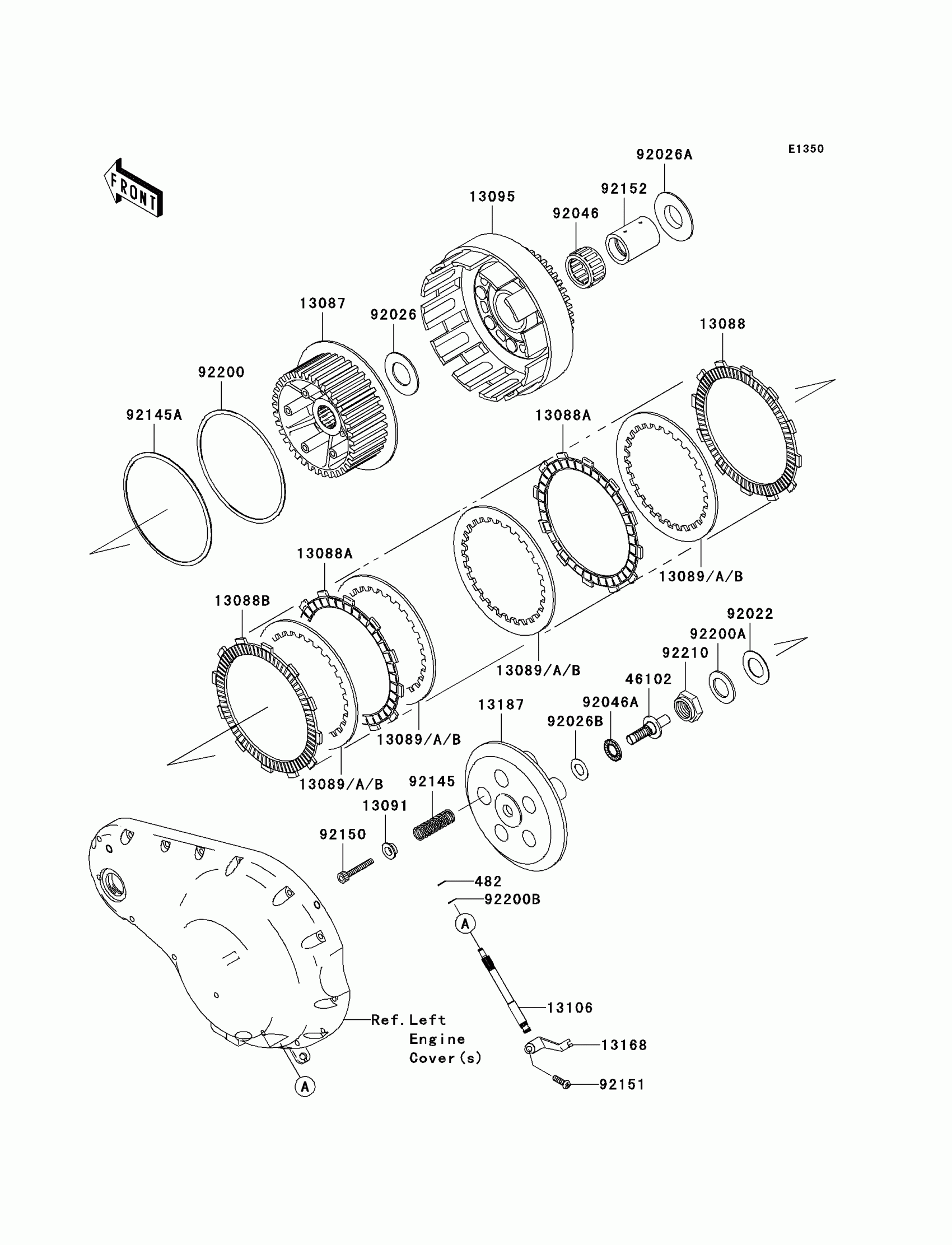

Kawasaki Vulcan 2000 Clutch Diagram

#

Description
Price

482

CIRCLIP-TYPE-E,5MM

482J5000

$2.36

13087

HUB-CLUTCH

13087-0005

$186.27

13088

PLATE-FRICTION

13088-0001

$17.36

13088A

PLATE-FRICTION

13088-0011

$13.99

13088B

PLATE-FRICTION

13088-1146

$13.33

13089

PLATE-CLUTCH,T=2.0

13089-1075

$10.64

13089A

PLATE-CLUTCH,T=1.6

13089-1080

Unavailable

13089B

PLATE-CLUTCH,T=2.3

13089-1081

Unavailable

13091

HOLDER,CLUTCH SPRING

13091-1041

$9.30

13095

HOUSING-COMP-CLUTCH

13095-0001

$1,042.05

13106

SHAFT-CLUTCH RELEASE

13106-0002

$64.76

13168

LEVER,CLUTCH

13168-0006

$44.77

13187

PLATE-CLUTCH OPERATING

13187-0002

$95.64

46102

ROD,CLUTCH RELEASE

46102-0013

$54.62

92022

WASHER,25.3X44X1

92022-1390

$4.32

92026

SPACER,30.5X56X2

92026-0008

$7.80

92026A

SPACER,30.2X64X8.5

92026-0009

$32.89

92026B

SPACER,15X28X1

92026-1238

$6.46

92046

BEARING-NEEDLE,K40X48X25V3

92046-0001

$37.18

92046A

BEARING-NEEDLE,AXK1102

92046-1052

$10.99

92145

SPRING,CLUTCH

92145-0032

$7.77

92145A

SPRING

92145-0033

$7.75

92150

BOLT,CLUTCH OPERATING

92150-1855

$3.98

92151

BOLT,SOCKET,6X20

92151-1749

$2.25

92152

COLLAR,30X40X52.3

92152-0190

$65.16

92200

WASHER,140.1X150X1.2

92200-0015

$7.80

92200A

WASHER,25.5X42X2.6

92200-0016

$5.08

92200B

WASHER,7.7X13X1.0

92200-1107

Unavailable

92210

NUT,25MM

92210-0138

$5.08
