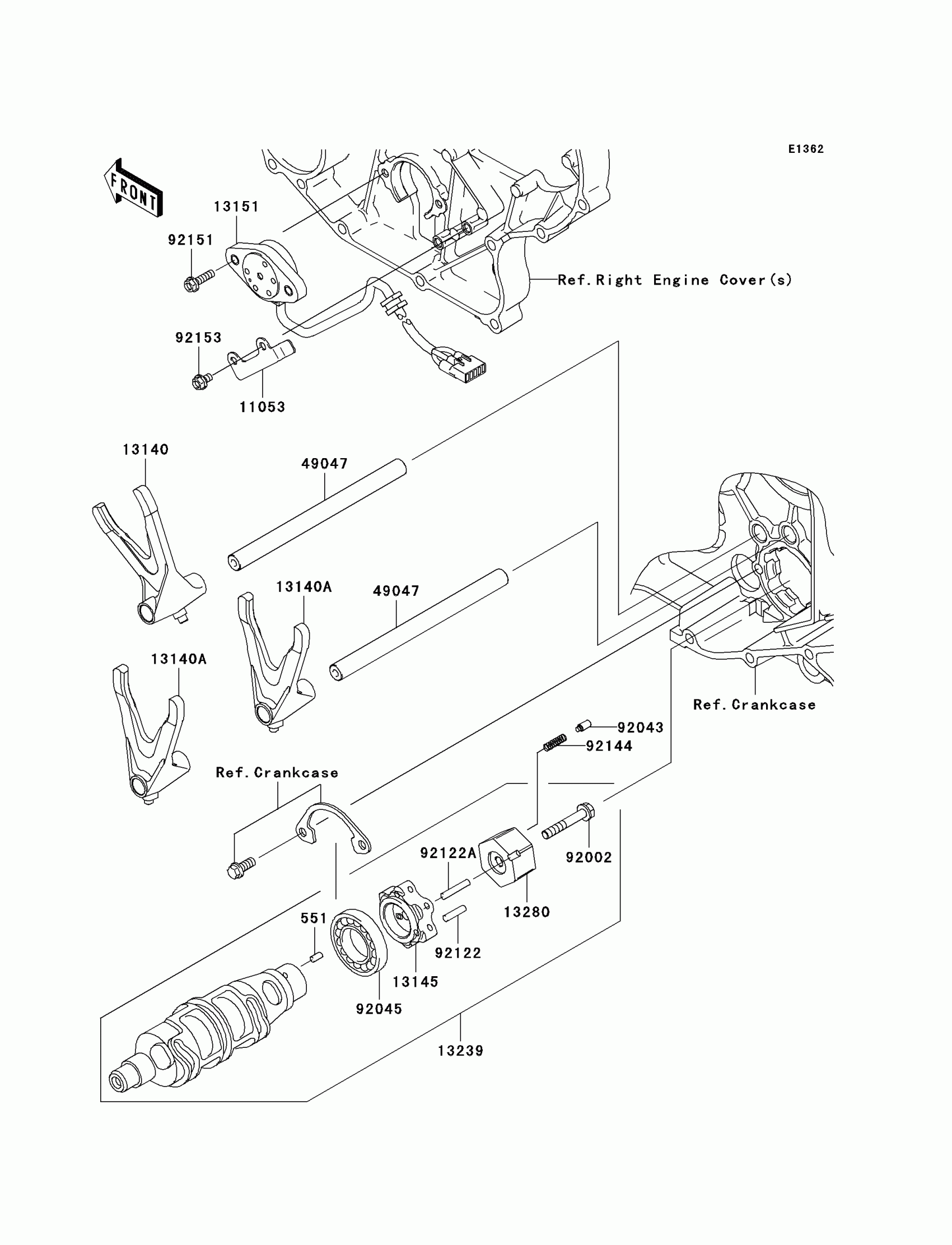

Kawasaki Vulcan 2000 Gear Change Drum/Shift Fork(s) Diagram

Description

Price

551

PIN-DOWEL,4X8

551A0408

$0.68

11053

BRACKET,SENSOR WIRE

11053-0506

$4.61

13140

FORK-SHIFT,INPUT

13140-0001

$127.76

13140A

FORK-SHIFT,OUTPUT

13140-0002

$133.84

13145

CAM-CHANGE DRUM

13145-0016

$72.45

13151

SWITCH-COMP,GEAR POSITION

13151-0013

Unavailable

13239

DRUM-ASSY-CHANGE

13239-0013

$302.05

13280

HOLDER

13280-0106

$29.88

49047

ROD-SHIFT

49047-0002

$24.24

92002

BOLT,6X38

92002-1431

$4.85

92043

92043-0085

$7.66

92045

BEARING-BALL,16005

92045-1045

$28.80

92122

ROLLER,4.5X17.8

92122-0001

$5.39

92122A

ROLLER,4.5X23.8

92122-0010

$5.31

92144

SPRING

92144-1245

$3.25

92151

BOLT

92151-1776

$1.95

92153

BOLT,5X10

92153-0687

$2.15
