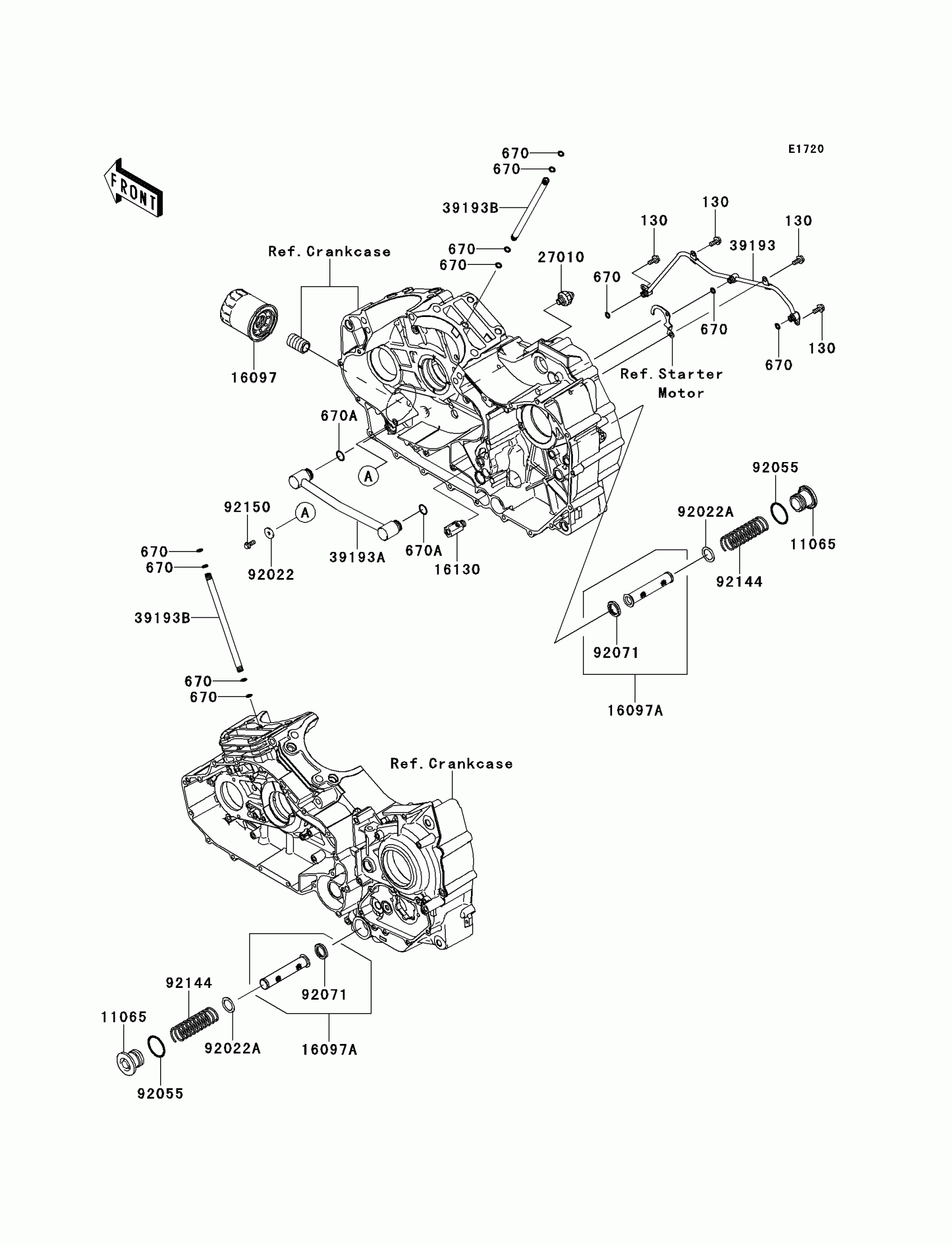

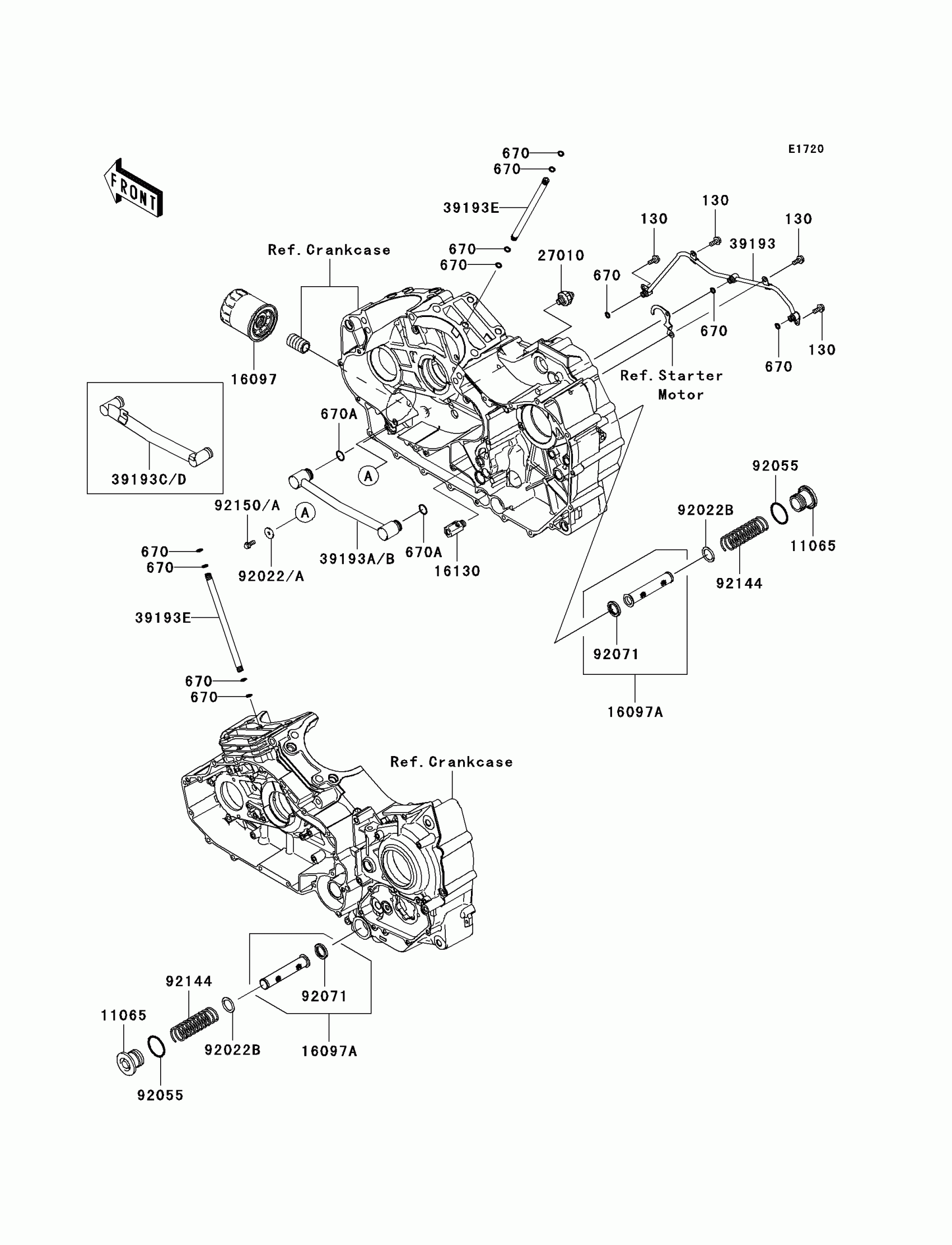

2012 Kawasaki Vulcan® 1700 Nomad™ OIL Filter Diagram

← All diagrams

Find the part on the OIL Filter diagram for your 2012 Kawasaki Vulcan® 1700 Nomad™, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Kawasaki Vulcan® 1700 Nomad™ OIL Filter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X14

130BA0614

1

$1.12

In stock

670

O RING,7MM

670D1507

1
Out of stock

670A

O RING,16MM

670D2016

1
Out of stock

11065

CAP,OIL FILTER

11065-0244

1
Out of stock

16097

FILTER-ASSY-OIL

16097-0004

1
Out of stock

16097A

FILTER-ASSY-OIL

16097-1058

1
Out of stock

16130

VALVE-ASSY-RELIEF

16130-1058

1
Out of stock

27010

SWITCH,OIL PRESSURE

27010-1313

1
Out of stock

39193

1

$70.57

In stock

39193A

1

$57.77

In stock

39193E

PIPE-OIL,CASE-HEAD

39193-1045

1

$15.00

In stock

92022

WASHER,6X19.5X2

92022-1517

1
Out of stock

92022B

WASHER,20.1X28X1

92022-1547

1
Out of stock

92055

RING-O,35.2X2.4

92055-1358

1
Out of stock

92071

GROMMET,OIL STRAINER

92071-100

1
Out of stock

92144

SPRING

92144-1106

1
Out of stock

92150

BOLT,6X14

92150-1916

1
Out of stock
