2012 Kawasaki Vulcan® 1700 Nomad™ OIL Pump Diagram

← All diagrams

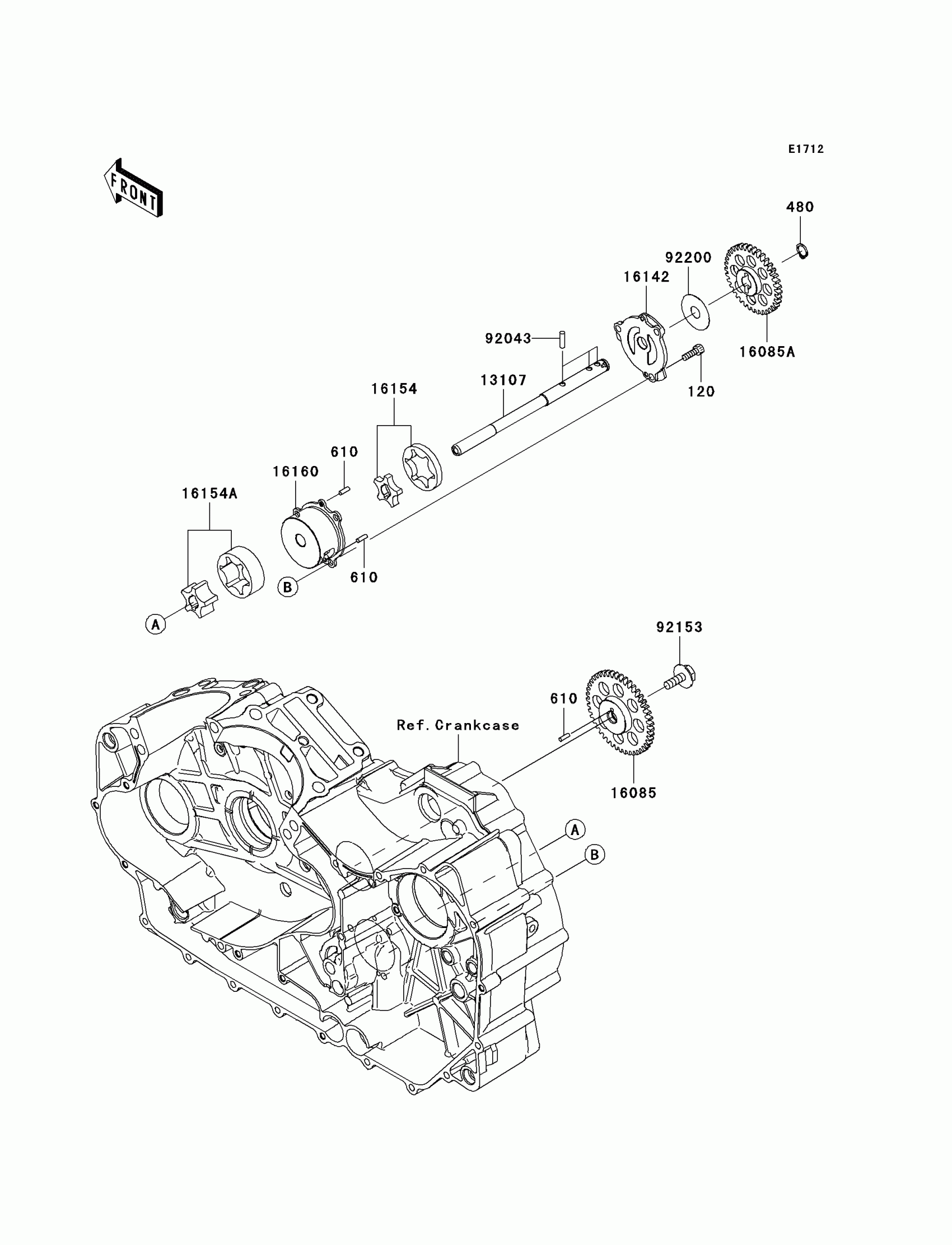

Find the part on the OIL Pump diagram for your 2012 Kawasaki Vulcan® 1700 Nomad™, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Kawasaki Vulcan® 1700 Nomad™ OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,6X18

120CA0618

1
Out of stock

480

CIRCLIP-TYPE-C,13MM

480J1300

1
Out of stock

610

ROLLER,4X12

610A0412

1
Out of stock

13107

SHAFT,OIL PUMP

13107-0212

1
Out of stock

16085

GEAR,DRIVE,45T

16085-0119

1
Out of stock

16085A

GEAR,DRIVEN,37T

16085-0120

1
Out of stock

16142

COVER-PUMP

16142-0055

1
Out of stock

16154

ROTOR-PUMP,FEED

16154-0079

1
Out of stock

16154A

ROTOR-PUMP,SCAVENGE

16154-0085

1
Out of stock

16160

BODY,OIL PUMP

16160-0157

1
Out of stock

92043

PIN,17.9X5.0

92043-1444

1
Out of stock

92153

BOLT,FLANGED,8X23

92153-0549

1
Out of stock

92200

WASHER,13.2X40X0.5

92200-0499

1
Out of stock
