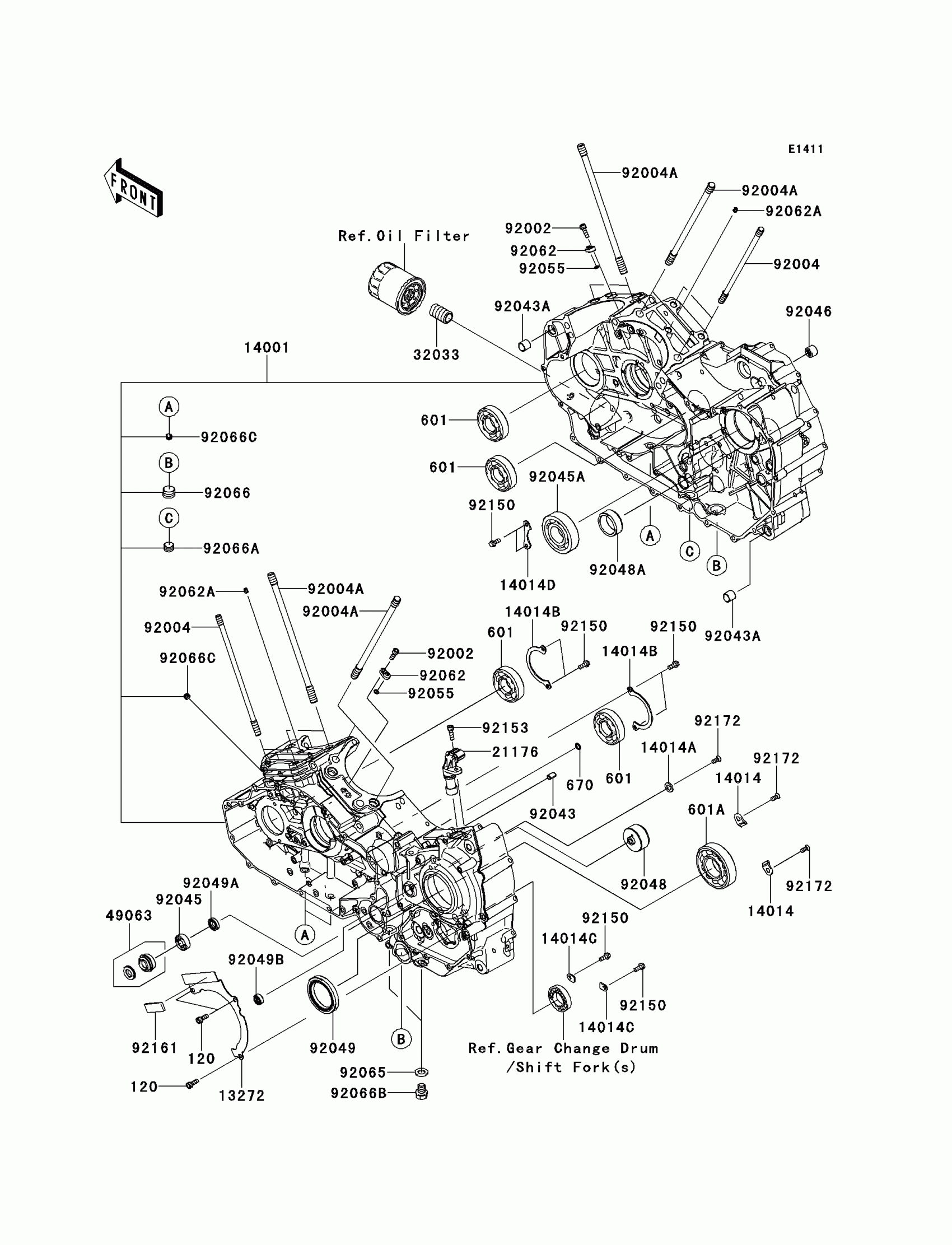

Kawasaki VULCAN® 1700 NOMAD™ Crankcase Diagram

#

Description
Price

120

BOLT-SOCKET,6X16

120CA0616

$1.77

601

BEARING-BALL,#6305

601A6305

$14.04

601A

BEARING-BALL

601A6307

$37.86

670

O RING,8MM

670D1508

$3.29

13272

PLATE,EG OUTPUT

13272-0319

$7.93

14001

SET-CRANKCASE

14001-0134

$2,027.57

14014

PLATE-POSITION

14014-0003

$4.17

14014A

PLATE-POSITION,9.5X17X2.3

14014-0019

$3.51

14014B

PLATE-POSITION,BALANCER

14014-0033

$4.92

14014C

PLATE-POSITION,CHANGE DRUM

14014-0034

$4.92

14014D

PLATE-POSITION

14014-1084

$5.63

21176

SENSOR,SPEED

21176-0042

$134.28

32033

PIPE,OIL FILTER

32033-1535

$9.85

49063

SEAL-MECHANICAL

49063-1055

$16.33

92002

BOLT,SOCKET,5X18

92002-1805

$4.17

92004

STUD,10X201

92004-0038

$18.75

92004A

STUD,12X217

92004-0039

$29.13

92043

PIN,6.2X8X14

92043-1263

$0.46

92043A

PIN,13X16X14

92043-1608

$3.81

92045

BEARING-BALL,6001JRXLLU/5K

92045-1151

$22.11

92045A

BEARING-BALL,6306SH2

92045-1190

$36.30

92046

BEARING-NEEDLE,HK1212V11

92046-1292

$15.86

92048

RACE

92048-0017

$36.12

92048A

RACE

92048-1103

$22.93

92049

SEAL-OIL,50X68X9

92049-0107

$24.78

92049A

SEAL-OIL,SC 12X22X5

92049-1228

$7.08

92049B

SEAL-OIL

92049-1566

$5.84

92055

RING-O,5.5X1.5

92055-1339

$3.85

92062

NOZZLE,OIL JET

92062-0016

$9.31

92062A

NOZZLE,6X8,YELLOW

92062-1080

$8.37

92065

GASKET,12X22X2

92065-097

$0.66

92066

PLUG,PT1/2X12.5

92066-0002

$6.85

92066A

PLUG,PT3/8X10

92066-0003

$2.66

92066B

PLUG,12X15

92066-0079

$4.55

92066C

PLUG,PT1/8X7

92066-1227

$5.15

92150

BOLT,6X14

92150-1916

$2.30

92153

BOLT,SOCKET,6X20

92153-1031

$1.81

92161

DAMPER

92161-0124

$2.38

92172

SCREW,6X14

92172-0187

$1.53
