2012 Kawasaki Vulcan® 1700 Nomad™ Crankshaft Diagram

← All diagrams

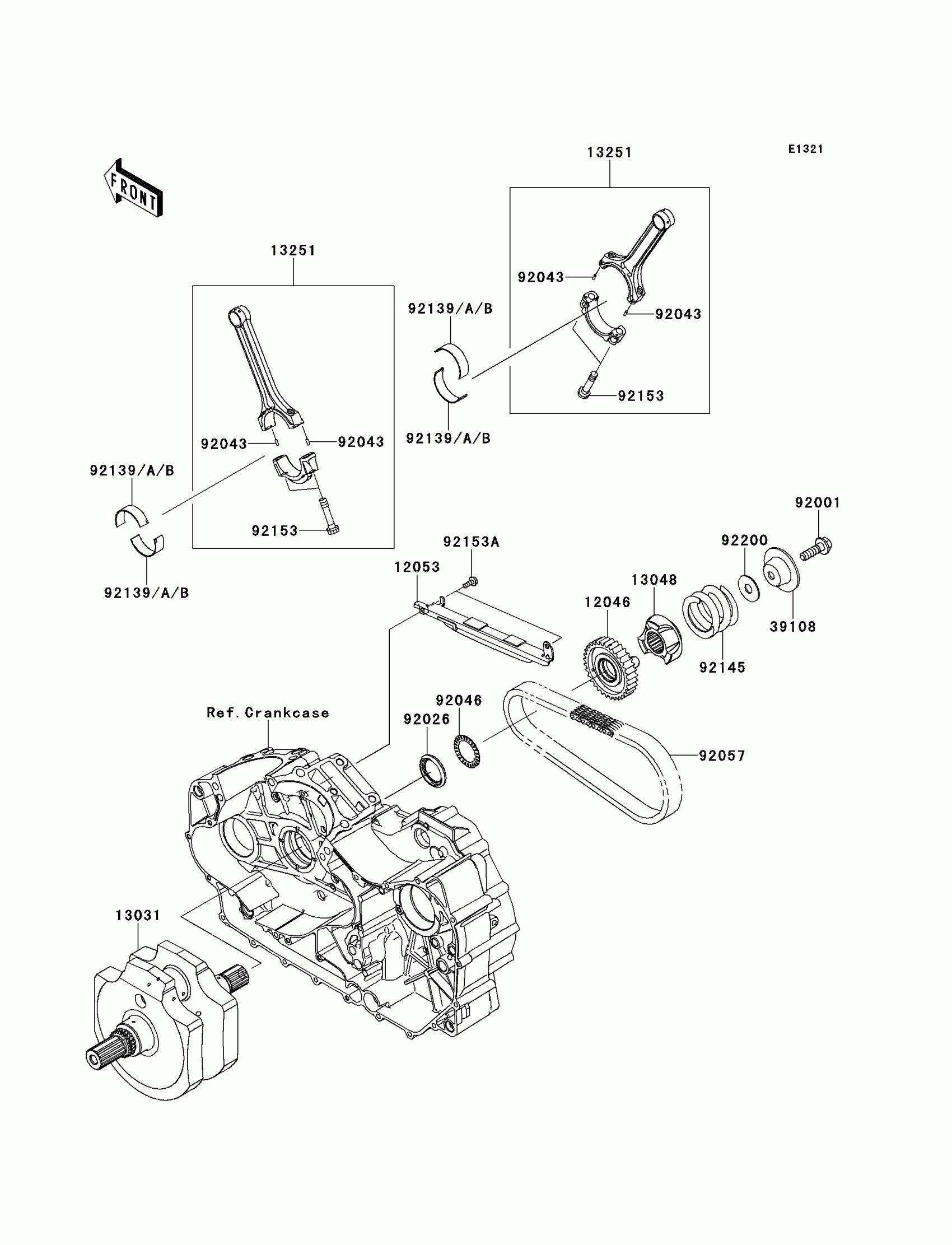

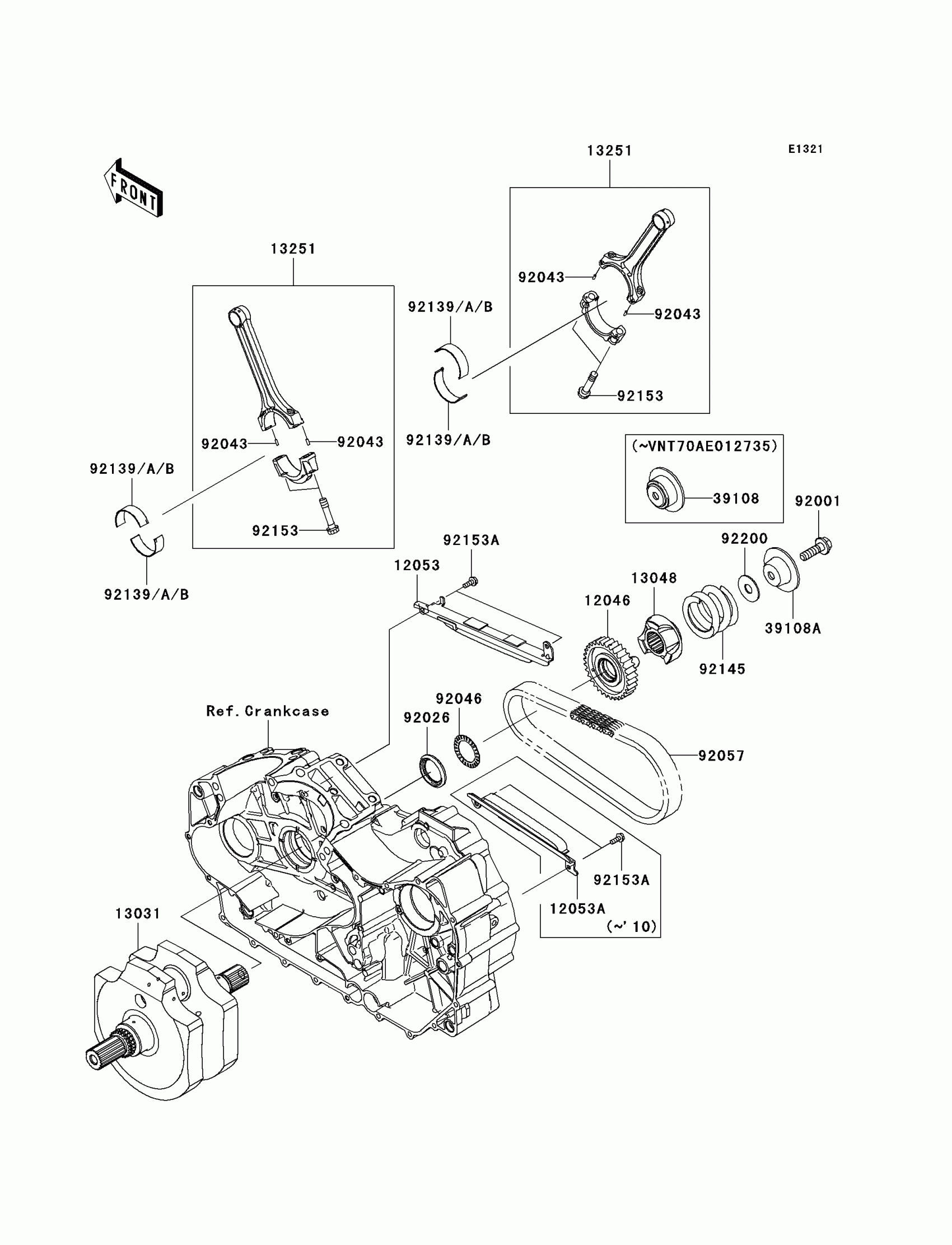

Find the part on the Crankshaft diagram for your 2012 Kawasaki Vulcan® 1700 Nomad™, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Kawasaki Vulcan® 1700 Nomad™ Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

12046

SPROCKET,PRIMARY,33T

12046-0065

1
Out of stock

12053

GUIDE-CHAIN,PRIMARY,UPP

12053-0122

1
Out of stock

13031

CRANKSHAFT-COMP

13031-0104

1
Out of stock

13048

CAM-DAMPER

13048-0017

1
Out of stock

13251

ROD-ASSY-CONNECTING

13251-0026

1
Out of stock

39108A

RETAINER-SPRING

39108-0014

1

$61.28

In stock

92001

BOLT,FLANGED,12X40

92001-1146

1
Out of stock

92026

SPACER

92026-0123

1
Out of stock

92043

PIN,3X8.5

92043-0033

1
Out of stock

92046

BEARING-NEEDLE

92046-0033

1
Out of stock

92057

CHAIN,PRIMARY,89HV303CF-92

92057-0155

1
Out of stock

92139

BUSHING,CONNECTING ROD,BLUE

92139-0225

1
Out of stock

92139A

BUSHING,CONNECTING ROD,BLACK

92139-0226

—
Out of stock

92139B

BUSHING,CONNECTING ROD,BROWN

92139-0227

—
Out of stock

92145

SPRING,58X11X46.5

92145-0592

1
Out of stock

92153

BOLT,CONNECTING ROD

92153-0314

1
Out of stock

92153A

BOLT,FLANGED,6X16

92153-0713

1
Out of stock

92200

WASHER,12X34X1.6

92200-0478

1
Out of stock
