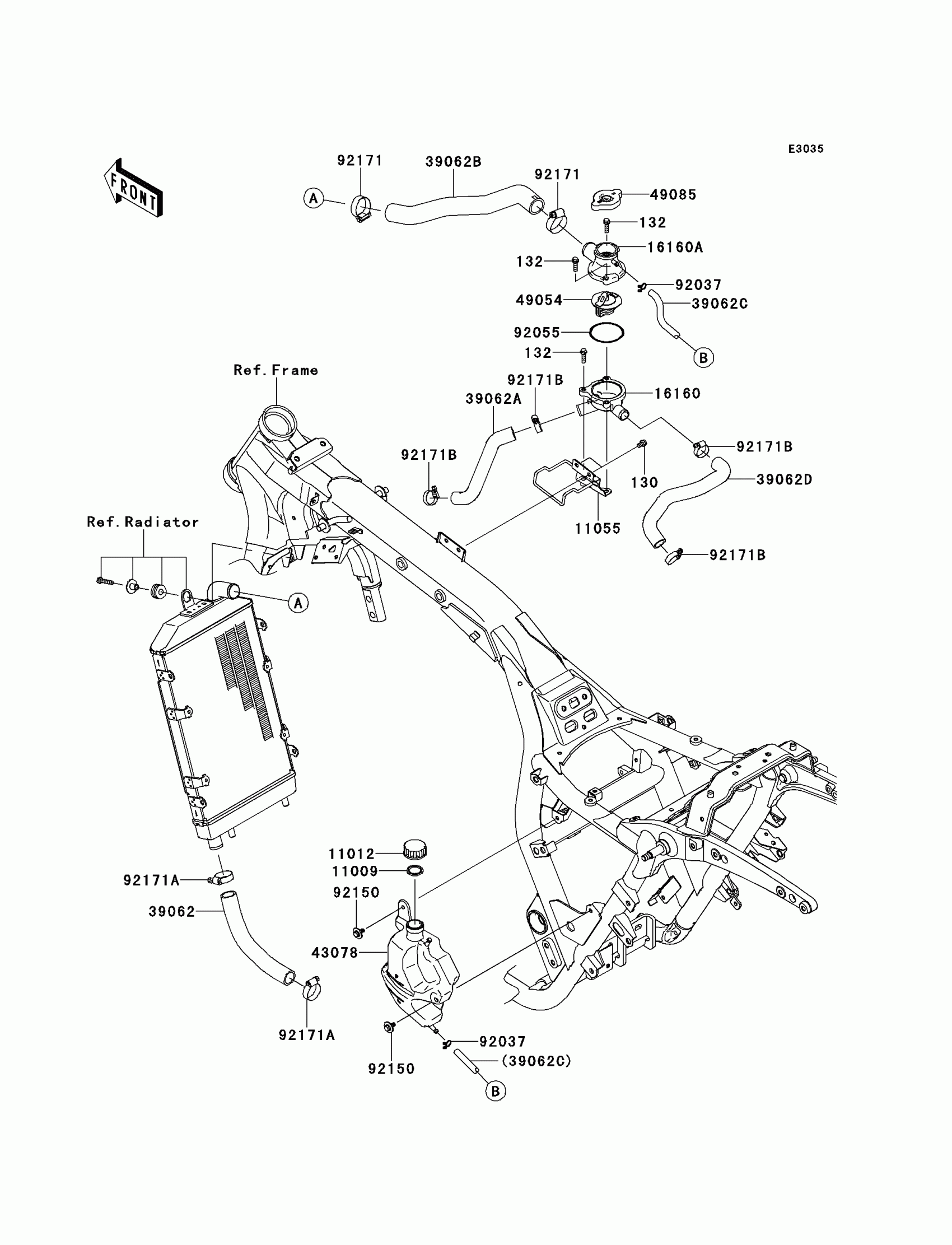

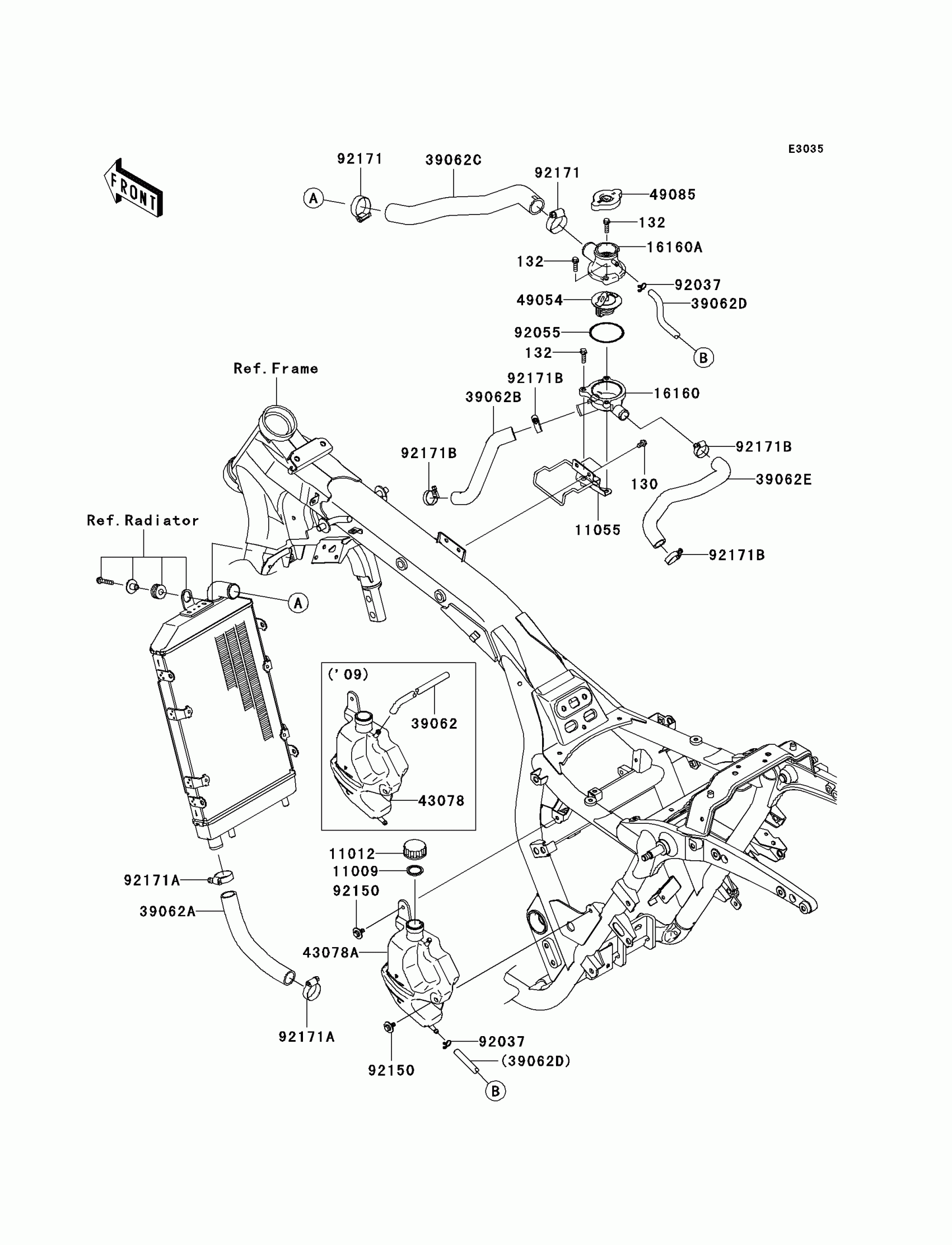

Kawasaki VULCAN® 1700 NOMAD™ Cooling Diagram

Description

Price

130

BOLT-FLANGED,6X10

130BA0610

$0.97

132

BOLT-FLANGED-SMALL,6X20

132BA0620

$1.77

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.08

11012

CAP

11012-1084

$1.25

11055

BRACKET,THERMOCASE

11055-0571

$30.73

16160

BODY,LWR

16160-0158

$61.68

16160A

BODY,UPP

16160-1152

$69.01

39062A

HOSE-COOLING,RAD-W/P IN PIPE

39062-0244

$13.50

39062B

HOSE-COOLING,FR HEAD-THERMO

39062-0245

$13.90

39062C

HOSE-COOLING,THERMO-RAD

39062-0247

$37.15

39062D

HOSE-COOLING

39062-0291

$15.34

39062E

HOSE-COOLING,RR HEAD-THERMO

39062-0315

$20.07

43078A

RESERVOIR

43078-0067

$44.23

49054

THERMOSTAT

49054-0004

$51.97

49085

CAP-ASSY-PRESSURE,P1.1

49085-1070

$44.67

92037

CLAMP,TUBE

92037-147

$5.61

92055

RING-O,53.5X2.6

92055-112

$4.97

92150

BOLT,FLANGED,6X14,WASHER

92150-1392

$3.66

92171

CLAMP

92171-0179

$6.25

92171A

CLAMP

92171-0261

$12.75

92171B

CLAMP

92171-0338

$6.37
