2013 Kawasaki Vulcan® 1700 Nomad™ Muffler Diagram

← All diagrams

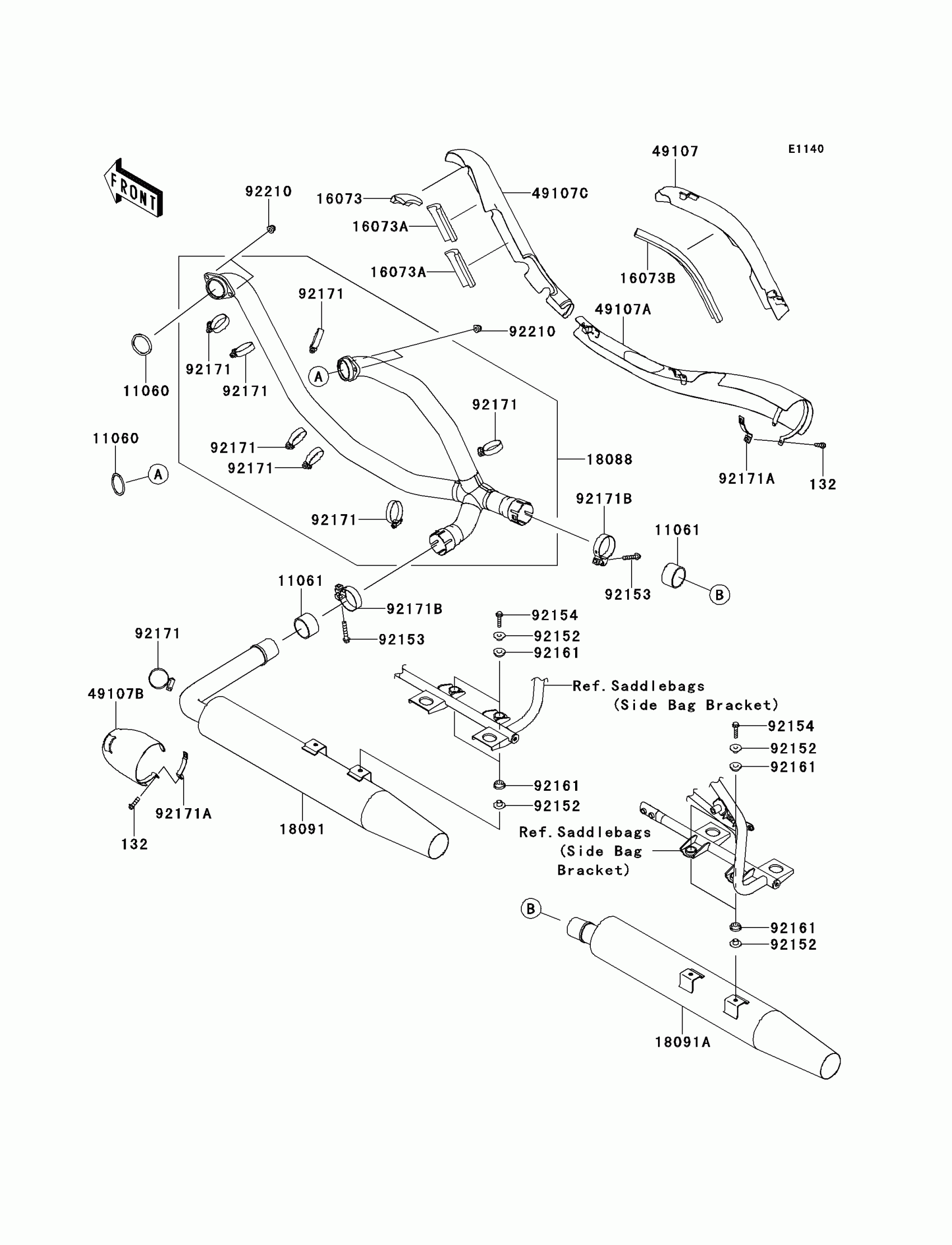

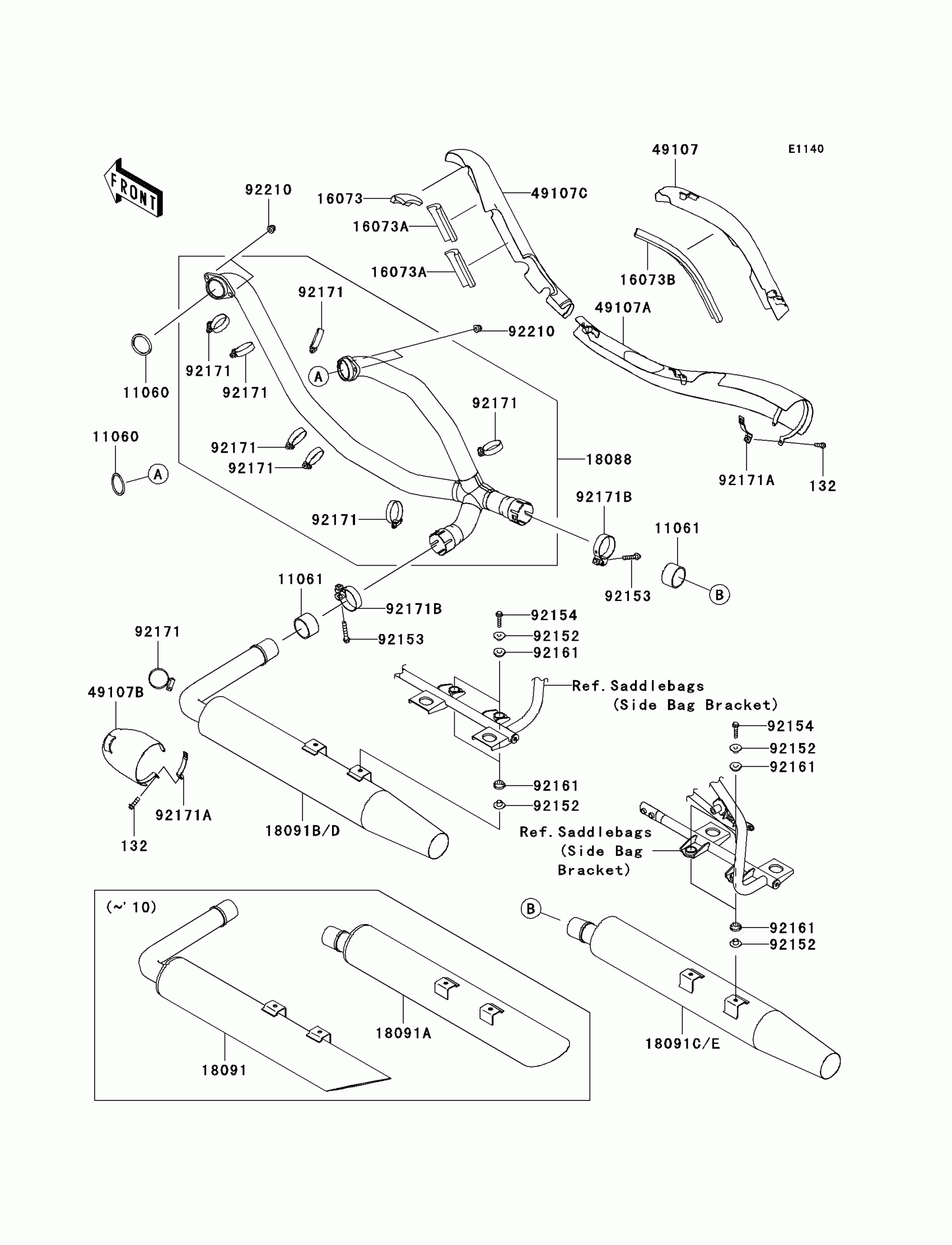

Find the part on the Muffler diagram for your 2013 Kawasaki Vulcan® 1700 Nomad™, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2013 Kawasaki Vulcan® 1700 Nomad™ Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

1

$0.94

In stock

11060

GASKET,EXHAUST PIPE

11060-1119

1
Out of stock

11061

GASKET,MUFFLER CONNECTING

11061-0240

1
Out of stock

16073

INSULATOR

16073-0125

1
Out of stock

16073A

INSULATOR

16073-0126

1
Out of stock

16073B

INSULATOR

16073-0128

1
Out of stock

18088

PIPE-EXHAUST

18088-0414

1
Out of stock

18091

BODY-COMP-MUFFLER,LH

18091-0833

1
Out of stock

18091A

BODY-COMP-MUFFLER,RH

18091-0834

1
Out of stock

49107

COVER-EXHAUST PIPE,RR

49107-0122

1
Out of stock

49107A

COVER-EXHAUST PIPE,FR-R

49107-0153

1
Out of stock

49107B

COVER-EXHAUST PIPE,LH

49107-0154

1
Out of stock

49107C

COVER-EXHAUST PIPE,FR-F

49107-0172

1
Out of stock

92152

COLLAR,8.8X12X10.6

92152-0082

1
Out of stock

92153

BOLT,8X45

92153-0702

1
Out of stock

92154

BOLT,FLANGED,8X32

92154-0136

1
Out of stock

92161

DAMPER

92161-0135

1
Out of stock

92171

CLAMP

92171-0072

1

$9.42

In stock

92171A

CLAMP

92171-0294

1

$14.76

In stock

92171B

CLAMP

92171-0358

1

$25.08

In stock

92210

NUT,CAP,8MM

92210-1132

1
Out of stock
