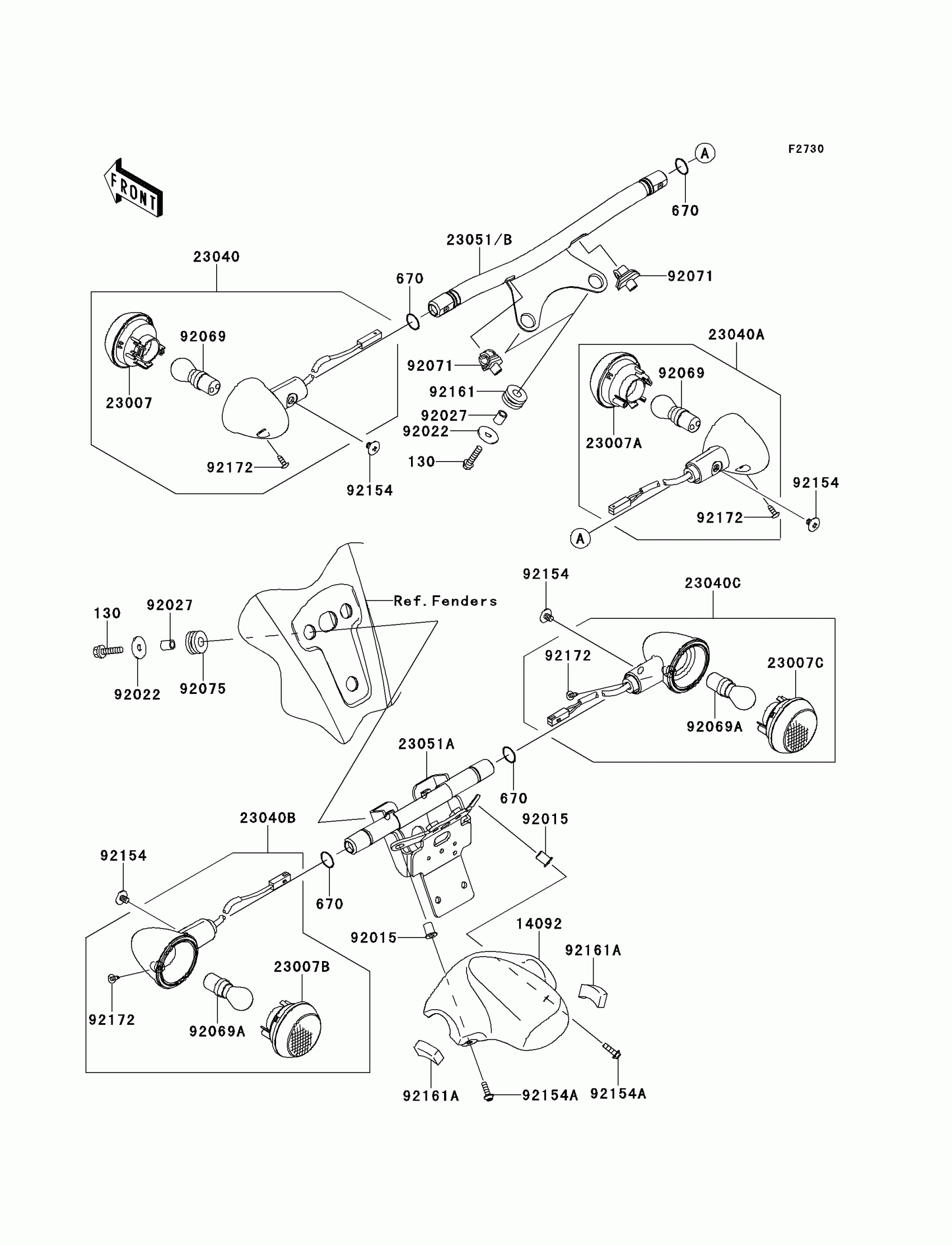

Kawasaki VULCAN® 1700 NOMAD™ ABS Turn Signals Diagram

Description

Price

130

BOLT-FLANGED,6X25

130BB0625

$1.84

670

O RING,16MM

670B2016

$1.04

14092

COVER,LICENSE LAMP

14092-0090

$57.77

23007

LENS-COMP,SIGNAL LAMP

23007-0120

$35.12

23007A

LENS-COMP,SIGNAL LAMP

23007-0125

$30.85

23007B

LENS-COMP,SIGNAL LAMP

23007-0126

$35.12

23007C

LENS-COMP,SIGNAL LAMP

23007-0127

$35.12

23040

LAMP-SIGNAL,FR,LH

23040-0083

$102.60

23040A

LAMP-SIGNAL,FR,RH

23040-0084

$102.60

23040B

LAMP-SIGNAL,RR,LH

23040-0089

$89.00

23040C

LAMP-SIGNAL,RR,RH

23040-0090

$102.60

23051A

BRACKET-SIGNAL LAMP,RR

23051-0038

$133.31

23051B

BRACKET-SIGNAL LAMP,FR

23051-0041

$187.83

92015

NUT,WELL,5MM

92015-1757

$5.58

92022

WASHER,7X24X1.6

92022-1160

$2.99

92027

COLLAR,6.8X10X12

92027-162

$4.93

92069

BULB,12V 21/5W

92069-063

$7.09

92069A

Not Available As Spare Part - Friction Washer

Unavailable

92071

GROMMET,SIGNAL LAMP

92071-0043

$4.81

92075

DAMPER,10X24X12

92075-1690

$3.81

92154

BOLT,6X8

92154-0097

$1.47

92154A

BOLT,SOCKET,5X16

92154-0209

$1.95

92161

DAMPER

92161-0163

$4.39

92161A

DAMPER

92161-0841

$4.92

92172

SCREW,TAPPING,4X12

92172-0389

$3.12
