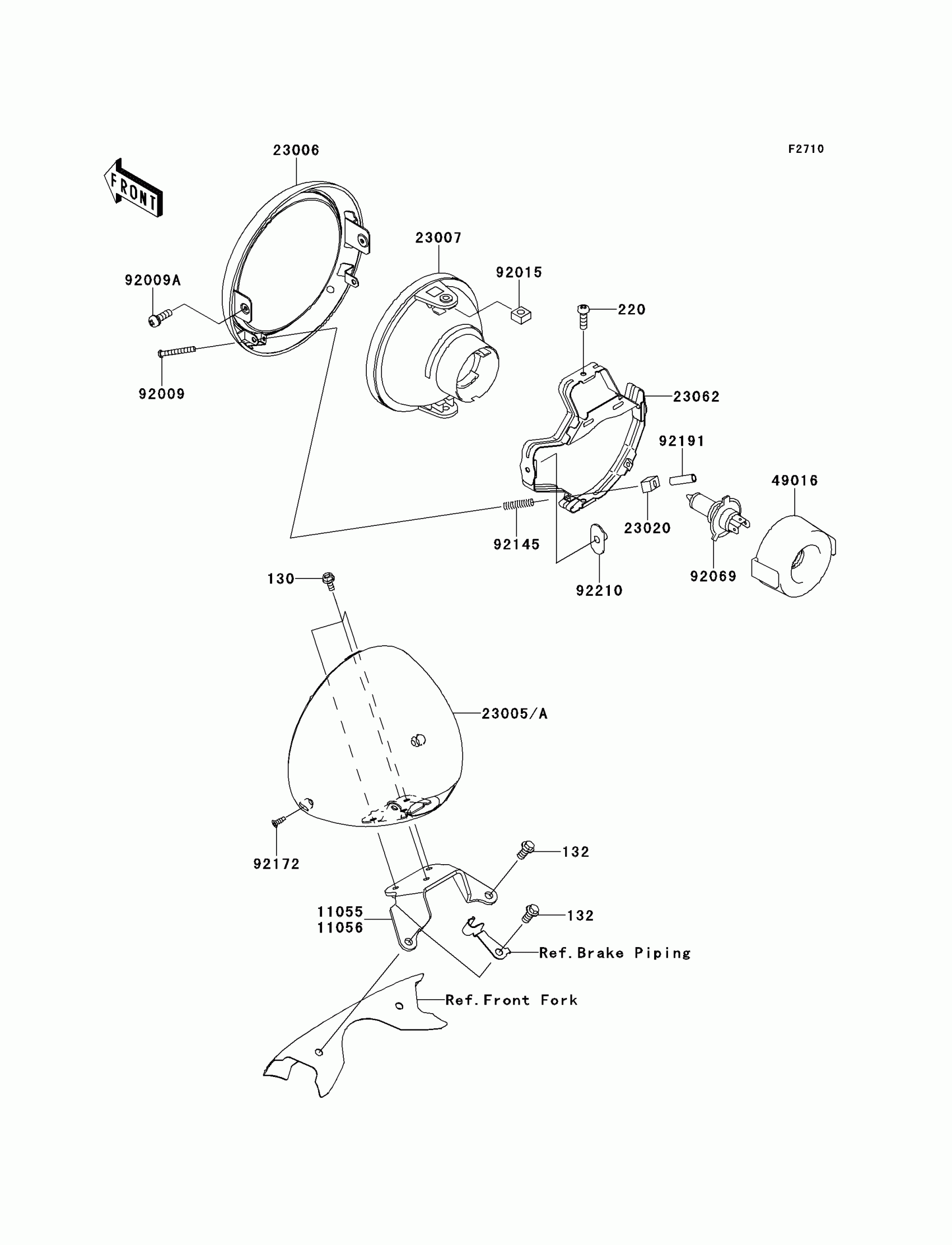

Find the part on the Headlight diagram for your 2014 Kawasaki Vulcan® 1700 Nomad™ ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2014 Kawasaki Vulcan® 1700 Nomad™ ABS Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X14

130BA0614

1

$1.12

In stock

132

1

$3.85

In stock

220

SCREW-PAN-CROS,5X16

220AA0516

1
Out of stock

11056

BRACKET,HEAD LAMP

11056-2968

1
Out of stock

23005A

BODY-COMP-HEAD LAMP

23005-0047

1
Out of stock

23006

RIM-LAMP

23006-1081

1
Out of stock

23007

LENS-COMP,HEAD LAMP

23007-1396

1
Out of stock

23020

NUT,4MM,FOCUS ADJUST

23020-018

1
Out of stock

23062

BRACKET-COMP,HEAD LAMP

23062-1132

1
Out of stock

49016

COVER-SEAL,SOCKET

49016-1203

1
Out of stock

92009

SCREW,FOCUS ADJUST,4X60

92009-1816

1
Out of stock

92009A

SCREW,5X16

92009-1879

1
Out of stock

92015

NUT,5MM

92015-1157

1
Out of stock

92069

BULB,12V 60/55W,H4

92069-1002

1
Out of stock

92145

SPRING,HEAD LAMP LENS

92145-1268

1
Out of stock

92172

SCREW,5X14

92172-0145

1
Out of stock

92191

TUBE,3.5X5.5X19

92191-1217

1
Out of stock

92210

NUT,SPECIAL,5MM

92210-1060

1
Out of stock
