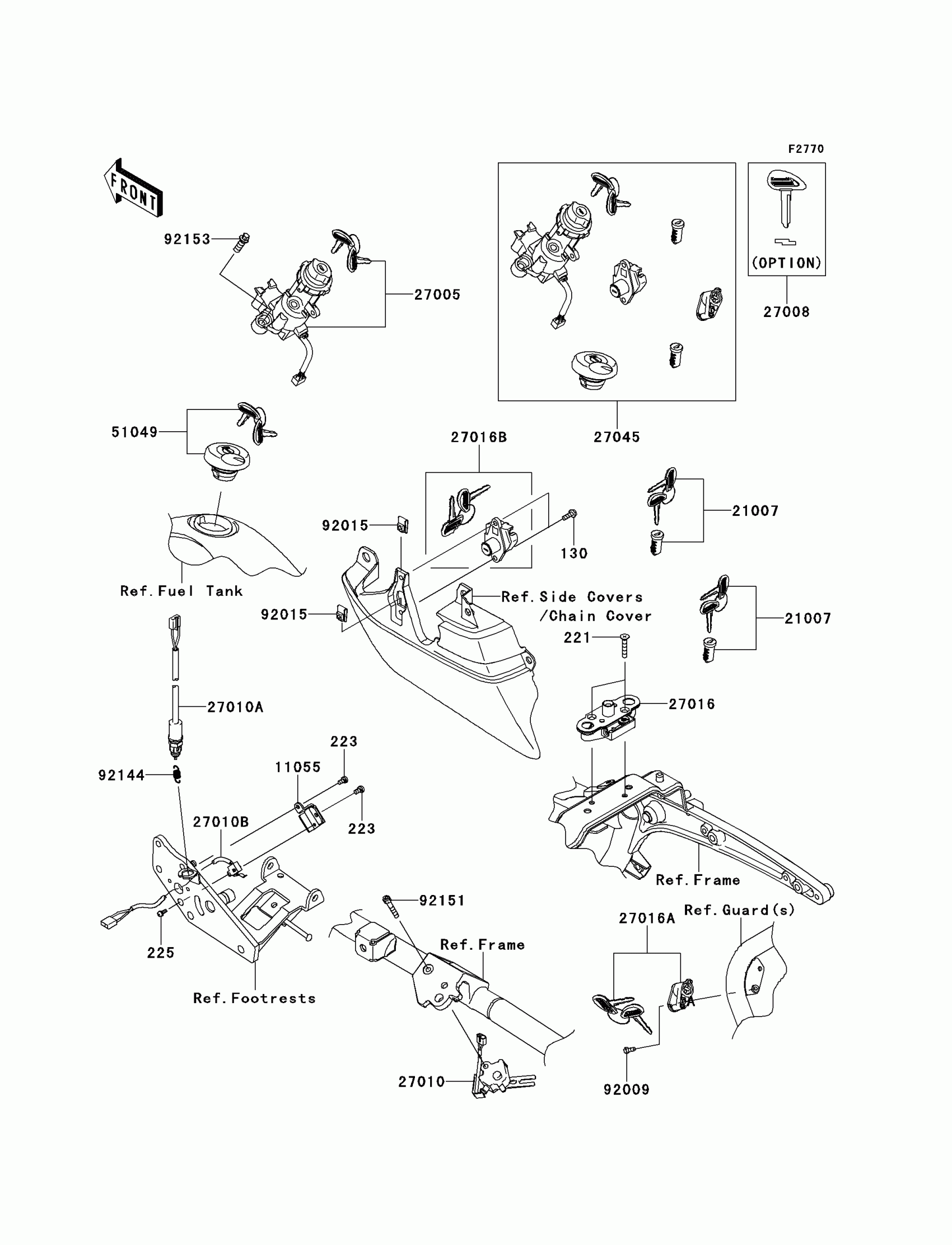

Kawasaki VULCAN® 1700 NOMAD™ ABS Ignition Switch/Locks/Reflectors Diagram

Description

Price

130

BOLT-FLANGED,5X16

130BA0516

$0.73

221

SCREW-CSK-CROS,6X30

221AA0630

$1.71

223

SCREW-PAN-WS-CROS,5X10

223AB0510

$3.14

225

SCREW-PAN-WSP-CROS,4X12

225AB0412

$2.04

11055

BRACKET,CRUISE CONTROL SWITCH

11055-0609

$11.17

21007

ROTOR,PANNIER LOCK

21007-5065

$78.78

27005

SWITCH-ASSY-IGNITION

27005-0052

Unavailable

27008

KEY-LOCK,BLANK

27008-1211

$28.56

27010

SWITCH,SIDE STAND

27010-0088

$72.23

27010A

SWITCH,REAR BRAKE

27010-0089

$36.83

27010B

SWITCH,CRUISE CONTROL

27010-0090

$47.37

27016

LOCK-ASSY,SEAT STRIKER

27016-1098

$86.38

27016A

LOCK-ASSY,HELMET

27016-5311

$69.10

27016B

LOCK-ASSY,SEAT

27016-5359

$69.17

27045

SWITCH-ASSY

27045-5404

$593.99

51049

CAP-TANK,FUEL

51049-5004

$119.69

92009

SCREW,5X12

92009-1296

$3.53

92015

NUT,5MM

92015-1710

$4.67

92144

SPRING,REAR BRAKE SWITCH

92144-1141

$4.14

92151

BOLT,SOCKET,6X35

92151-1390

$2.03

92153

BOLT,TORX,8X22

92153-1273

$4.39
