2014 Kawasaki Vulcan® 1700 Nomad™ ABS Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 2014 Kawasaki Vulcan® 1700 Nomad™ ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

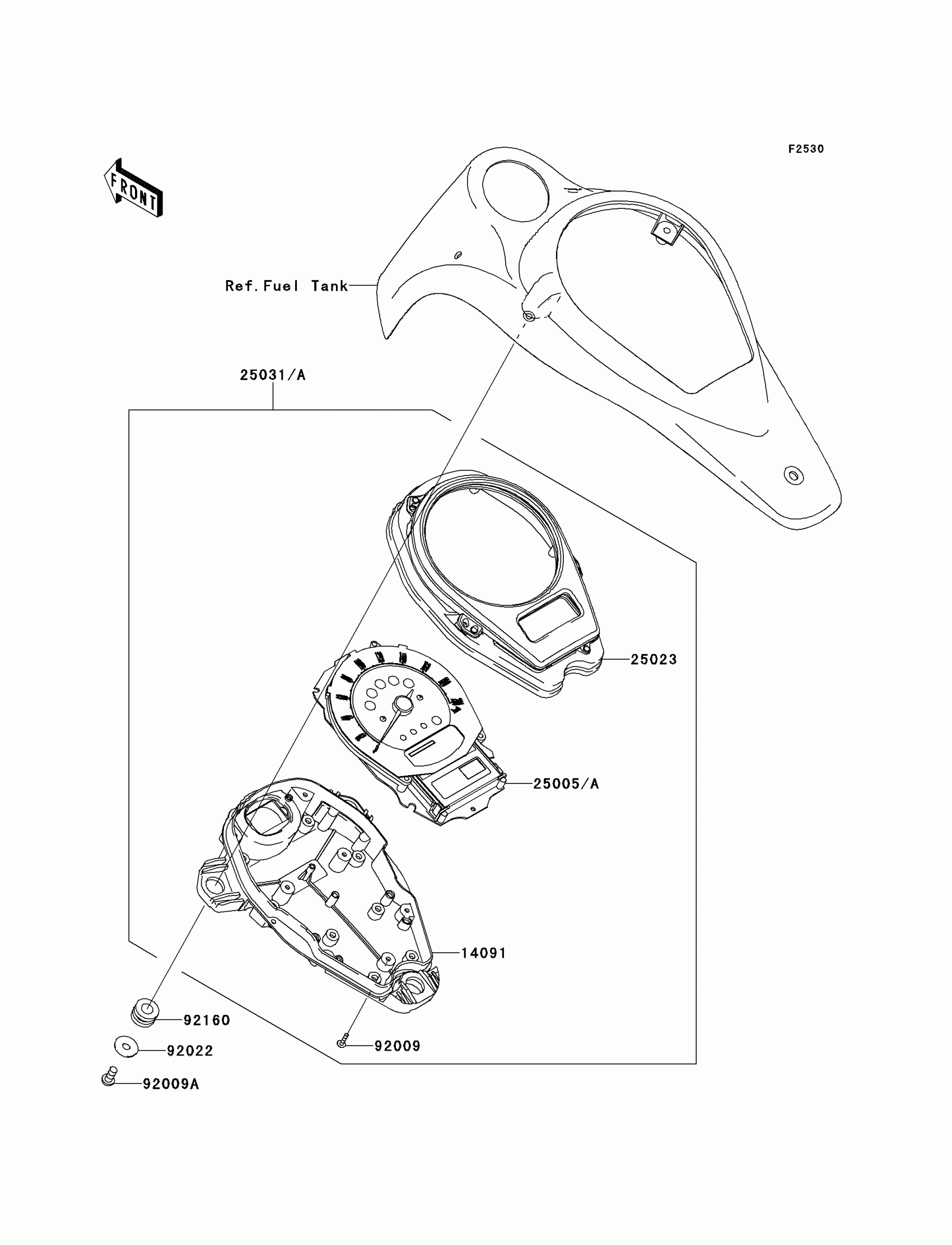

2014 Kawasaki Vulcan® 1700 Nomad™ ABS Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14091

COVER,METER,LWR

14091-1578

1
Out of stock

25023

COVER-METER CASE,UPP

25023-0038

1
Out of stock

92009

SCREW,4X18

92009-1995

1
Out of stock

92009A

SCREW,6X14

92009-3845

1
Out of stock

92022

WASHER,PLAIN,6.5X20X1

92022-165

1
Out of stock

92160

DAMPER,10X20X12

92160-1167

1
Out of stock

25005

SPEEDOMETER,MPH

25005-0070

1
Out of stock

25005A

SPEEDOMETER,KPH

25005-0071

1
Out of stock

25031

METER-ASSY,MPH

25031-0308

1
Out of stock

25031A

METER-ASSY,KPH

25031-0309

1
Out of stock
