2014 Kawasaki Vulcan® 1700 Nomad™ ABS Battery Case Diagram

← All diagrams

Find the part on the Battery Case diagram for your 2014 Kawasaki Vulcan® 1700 Nomad™ ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

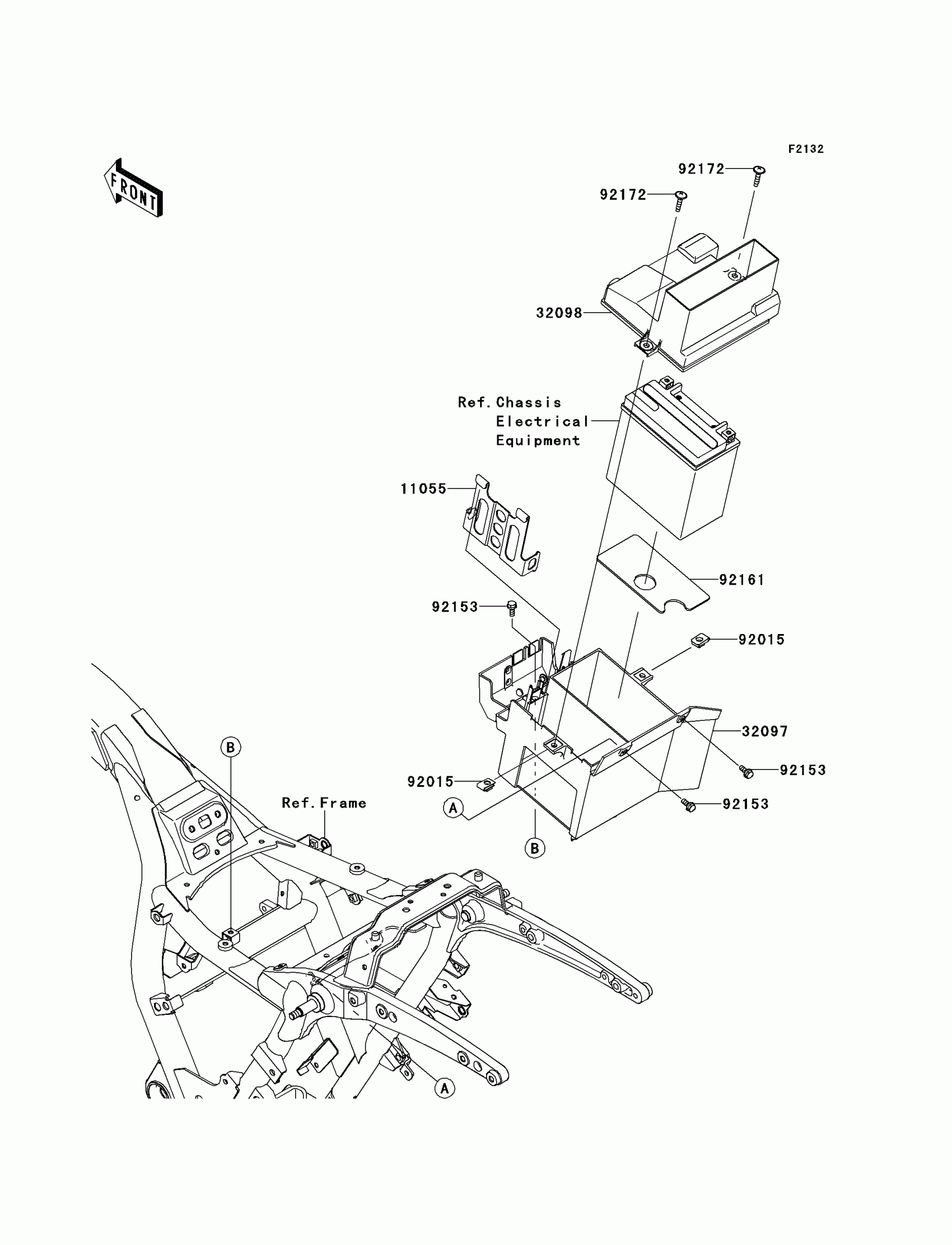

2014 Kawasaki Vulcan® 1700 Nomad™ ABS Battery Case Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11055

1

$20.08

In stock

32097

CASE-BATTERY

32097-0027

1
Out of stock

32098

CASE-TOOL

32098-0020

1
Out of stock

92015

NUT,6MM

92015-1602

1
Out of stock

92153

BOLT,6X16

92153-1215

1
Out of stock

92161

DAMPER,BATTERY

92161-1097

1
Out of stock

92172

SCREW,6X26

92172-0137

1
Out of stock
