2014 Kawasaki Vulcan® 1700 Nomad™ ABS Cowling Diagram

← All diagrams

Find the part on the Cowling diagram for your 2014 Kawasaki Vulcan® 1700 Nomad™ ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

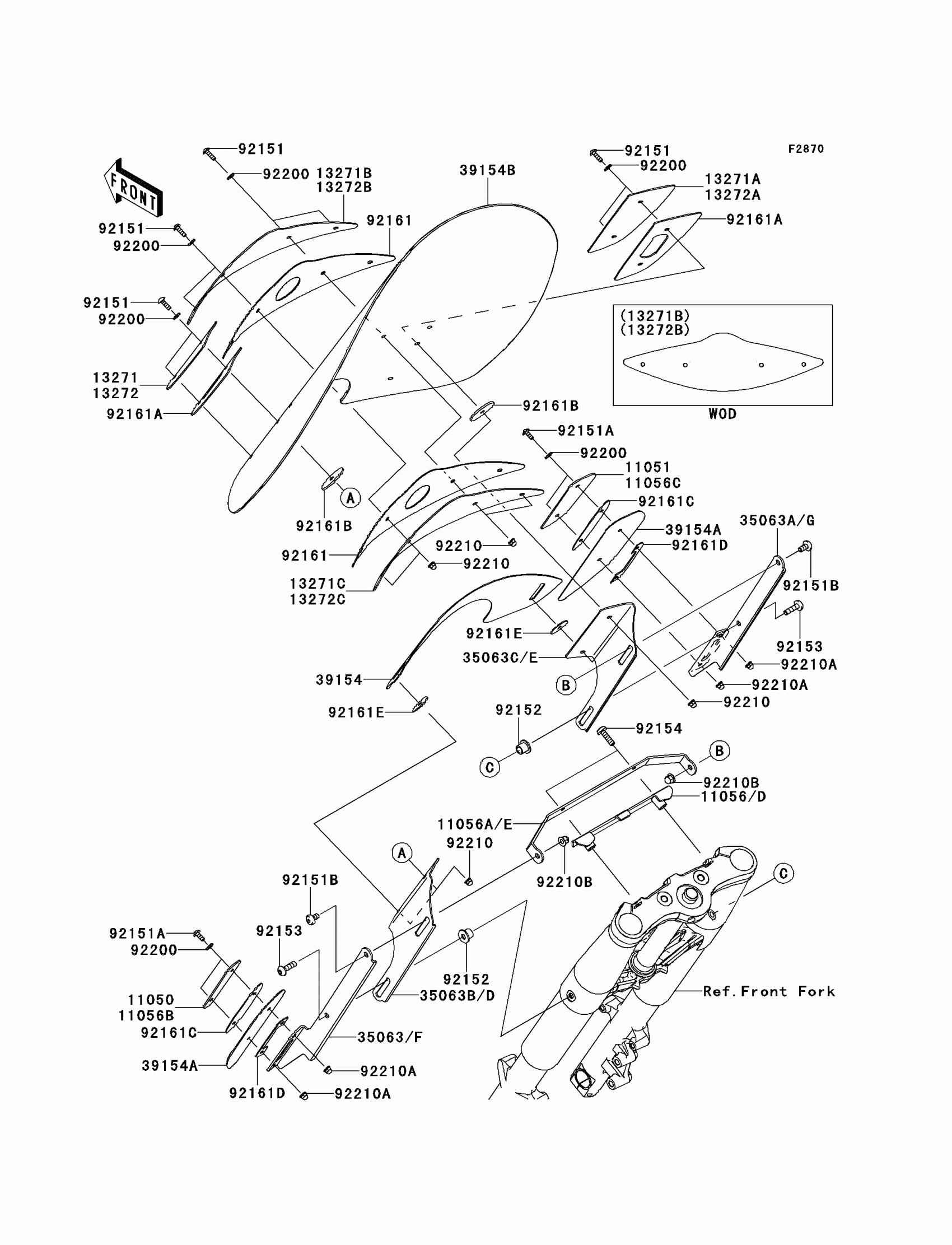

2014 Kawasaki Vulcan® 1700 Nomad™ ABS Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056B

BRACKET,DEFLECTOR,LH

11056-2963

1
Out of stock

11056C

BRACKET,DEFLECTOR,RH

11056-2964

1
Out of stock

11056D

BRACKET,UPP,BASE

11056-2965

1
Out of stock

11056E

BRACKET,UPP

11056-2966

1
Out of stock

13272

PLATE,WINDSHIELD,OUTER,LH

13272-1640

1
Out of stock

13272A

PLATE,WINDSHIELD,OUTER,RH

13272-1641

1
Out of stock

13272B

PLATE,WINDSHIELD,OUTER,CNT

13272-1642

1
Out of stock

13272C

PLATE,WINDSHIELD,INNER,CNT

13272-1643

1
Out of stock

35063D

STAY,WINDSHIELD,LH

35063-0938

1
Out of stock

35063E

STAY,WINDSHIELD,RH

35063-0939

1
Out of stock

35063F

STAY,DEFLECTOR,LH

35063-0940

1
Out of stock

35063G

STAY,DEFLECTOR,RH

35063-0941

1
Out of stock

39154

WINDSHIELD,SUB

39154-0034

1
Out of stock

39154A

WINDSHIELD,DEFLECTOR

39154-0325

1
Out of stock

39154B

WINDSHIELD,MAIN

39154-0326

1
Out of stock

92151

BOLT,SOCKET,6X20

92151-1750

1
Out of stock

92151A

BOLT,SOCKET,6X16

92151-1751

1
Out of stock

92151B

BOLT,SOCKET,8X16

92151-1752

1
Out of stock

92152

COLLAR

92152-0742

1
Out of stock

92153

BOLT,SOCKET,8X30

92153-1467

1
Out of stock

92154

BOLT,SOCKET,8X40

92154-0186

1
Out of stock

92161

DAMPER,WINDSHIELD,CNT

92161-0330

1
Out of stock

92161A

DAMPER,WINDSHIELD,LH&RH,OUTER

92161-0332

1
Out of stock

92161B

DAMPER

92161-0647

1
Out of stock

92161C

DAMPER,DEFLECTOR,OUTER

92161-0679

1
Out of stock

92161D

DAMPER,DEFLECTOR,INNER

92161-0680

1
Out of stock

92161E

DAMPER

92161-0712

1
Out of stock

92200

WASHER,6.5X14.5X1.5

92200-3775

1
Out of stock

92210

NUT,CAP,6MM

92210-0220

1
Out of stock

92210A

NUT,CAP,6MM

92210-1129

1
Out of stock

92210B

NUT,CAP,8MM

92210-1132

1
Out of stock
