2001 Kawasaki Vulcan 1500 Nomad Turn Signals Diagram

← All diagrams

Find the part on the Turn Signals diagram for your 2001 Kawasaki Vulcan 1500 Nomad, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

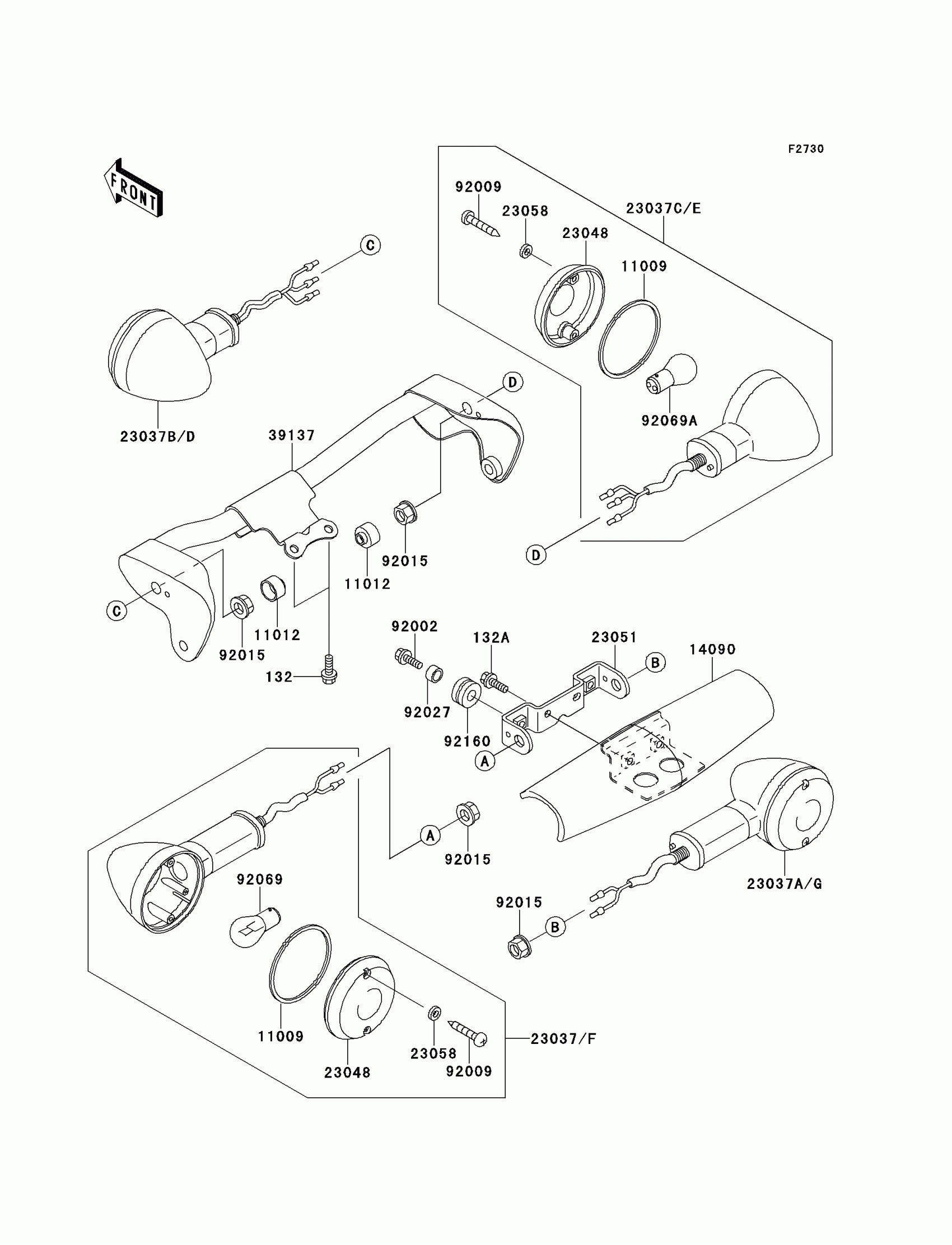

2001 Kawasaki Vulcan 1500 Nomad Turn Signals Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL,6X12

132E0612

1
Out of stock

132A

BOLT-FLANGED-SMALL

132J0614

1
Out of stock

11009

GASKET,SIGNAL LAMP

11009-1413

1
Out of stock

11012

CAP

11012-1367

1
Out of stock

14090

COVER

14090-1691

1
Out of stock

23037D

LAMP-ASSY-SIGNAL,FR,LH

23037-1377

1
Out of stock

23037E

LAMP-ASSY-SIGNAL,FR,RH

23037-1378

1
Out of stock

23037F

LAMP-ASSY-SIGNAL,RR,LH

23037-1384

1
Out of stock

23037G

LAMP-ASSY-SIGNAL,RR,RH

23037-1385

1
Out of stock

23048

LENS-SIGNAL LAMP,FR

23048-1066

1
Out of stock

23051

BRACKET-SIGNAL LAMP,RR

23051-1230

1
Out of stock

23058

WASHER,PLAIN,4MM

23058-002

1
Out of stock

39137

STAY-COMP,SIGNAL LAMP

39137-1071

1
Out of stock

92002

BOLT,UPSET-WP,6X22

92002-1262

1
Out of stock

92009

SCREW,TAPPING,4X25

92009-1637

1
Out of stock

92015

NUT,FLANGED,10MM

92015-1428

1
Out of stock

92027

COLLAR,6.8X10X12

92027-162

1
Out of stock

92069

BULB,12V 32CP(23W)

92069-055

1
Out of stock

92069A

BULB,12V 32/3CP(23/8W)

92069-060

1
Out of stock

92160

DAMPER

92160-1162

1
Out of stock
