2001 Kawasaki Vulcan 1500 Nomad Chassis Electrical Equipment Diagram

← All diagrams

Find the part on the Chassis Electrical Equipment diagram for your 2001 Kawasaki Vulcan 1500 Nomad, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

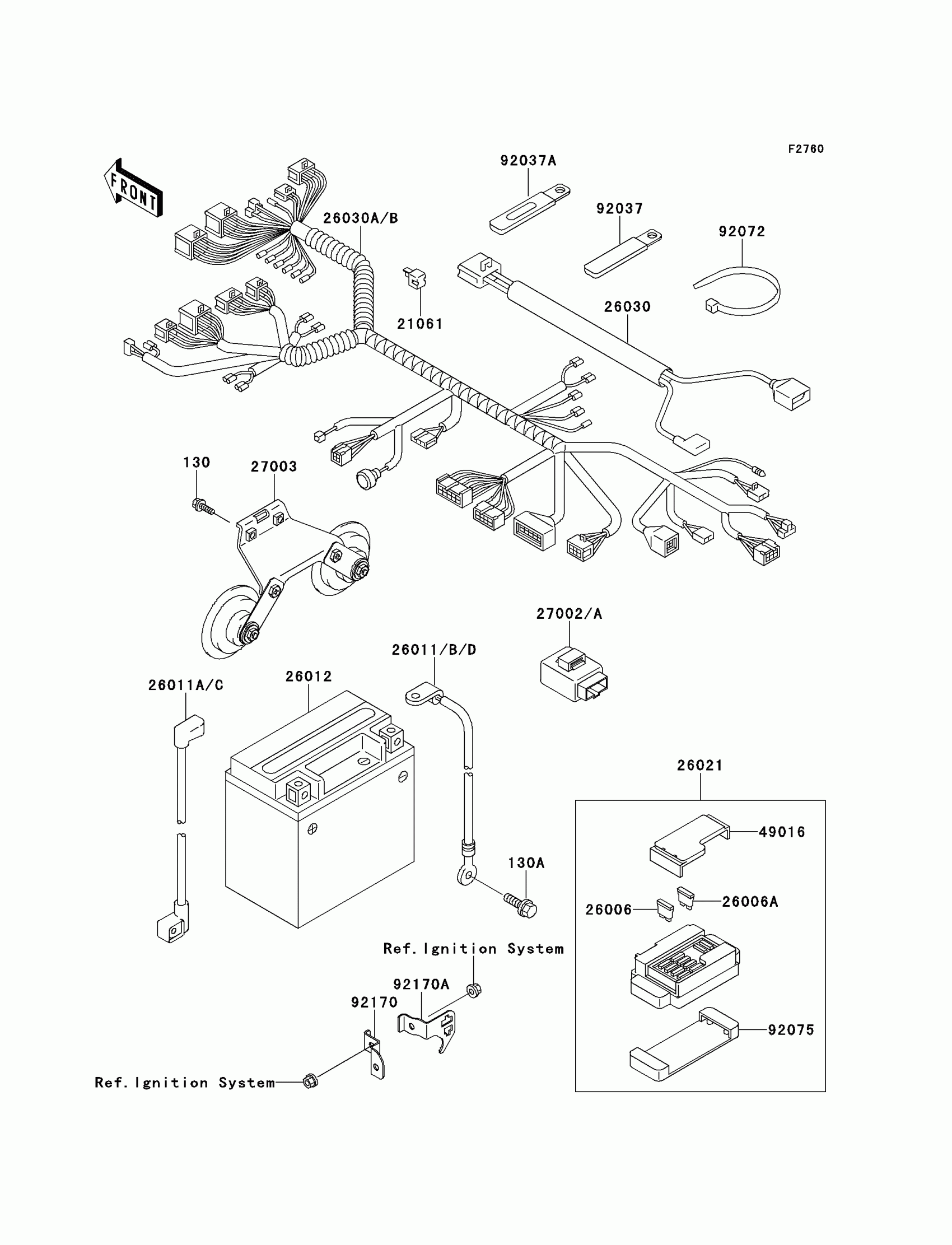

2001 Kawasaki Vulcan 1500 Nomad Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X30,BLACK

130J0630

1
Out of stock

130A

BOLT-FLANGED,6X10

130V0610

1
Out of stock

21061

RECTIFIER

21061-1003

1
Out of stock

26006

FUSE,BLADE,30A,GREEN

26006-1067

1
Out of stock

26006A

FUSE,10A-R

26006-1068

1
Out of stock

26011C

WIRE-LEAD,BATTERY(+)

26011-1770

1
Out of stock

26011D

WIRE-LEAD,BATTERY(-)

26011-1771

1
Out of stock

26012

BATTERY,MF,FTH16-BS,12V 14AH

26012-1368

1
Out of stock

26021

JUNCTION BOX

26021-1089

1
Out of stock

26030

HARNESS,SUB

26030-1450

1
Out of stock

26030B

HARNESS,MAIN

26030-1797

1
Out of stock

27002A

RELAY-ASSY,SIGNAL LAMP

27002-1111

1
Out of stock

27003

HORN

27003-1406

1
Out of stock

49016

COVER-SEAL,FUSE

49016-1177

1
Out of stock

92037

CLAMP,L=45

92037-1539

1
Out of stock

92037A

CLAMP

92037-1780

1
Out of stock

92072

BAND,L=202

92072-1195

1
Out of stock

92075

DAMPER,JUNCTION BOX

92075-1688

1
Out of stock

92170

CLAMP,IGNITION SWITCH

92170-1699

1
Out of stock

92170A

CLAMP,RR BRAKE SWITCH

92170-1700

1
Out of stock
