2001 Kawasaki Vulcan 1500 Nomad Battery Case Diagram

← All diagrams

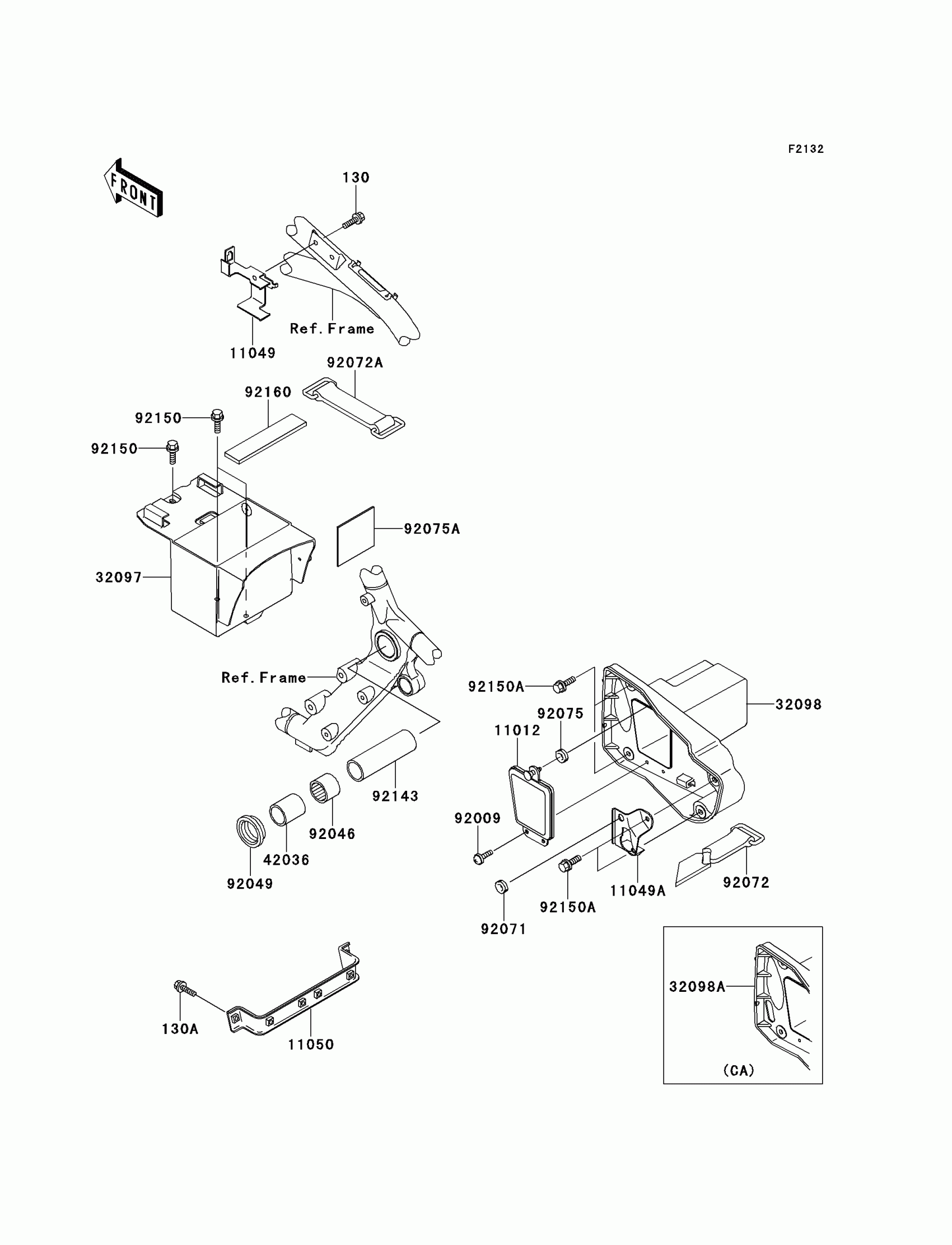

Find the part on the Battery Case diagram for your 2001 Kawasaki Vulcan 1500 Nomad, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Kawasaki Vulcan 1500 Nomad Battery Case Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED

130J0610

1
Out of stock

130A

BOLT-FLANGED,6X16,BLACK

130J0616

1
Out of stock

11012

CAP,TOOL CASE

11012-1956

1

$31.00

In stock

11049

BRACKET,FUEL PUMP

11049-1599

1

$18.56

In stock

11049A

BRACKET,LOCK

11049-1600

1

$18.81

In stock

11050

BRACKET,REGULATOR

11050-1694

1

$36.89

In stock

32097

CASE-BATTERY

32097-1161

1

$41.11

In stock

42036

SLEEVE,L=45

42036-1330

1
Out of stock

92009

SCREW,TAPPING,5X14

92009-1635

1
Out of stock

92046

BEARING-NEEDLE,BM2824

92046-1202

1
Out of stock

92049

SEAL-OIL,28X34X5.7

92049-1181

1
Out of stock

92071

GROMMET

92071-056

1

$3.39

In stock

92072A

BAND

92072-1384

1

$10.88

In stock

92075

DAMPER

92075-1629

1

$3.97

In stock

92075A

DAMPER,BATTERY

92075-1864

1

$7.95

In stock

92143

COLLAR,20.2X27X90

92143-1878

1
Out of stock

92150

BOLT,6X14

92150-1133

1

$3.57

In stock

92150A

BOLT,6X16

92150-1198

1

$3.69

In stock

92160

DAMPER

92160-1779

1

$7.46

In stock

32098

CASE-TOOL

32098-1109

1

$146.59

In stock

32098A

CASE-TOOL

32098-1124

1

$135.50

In stock

92072

BAND,L=470

92072-1331

1

$24.34

In stock
