2001 Kawasaki Vulcan 1500 Nomad Cowling Diagram

← All diagrams

Find the part on the Cowling diagram for your 2001 Kawasaki Vulcan 1500 Nomad, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

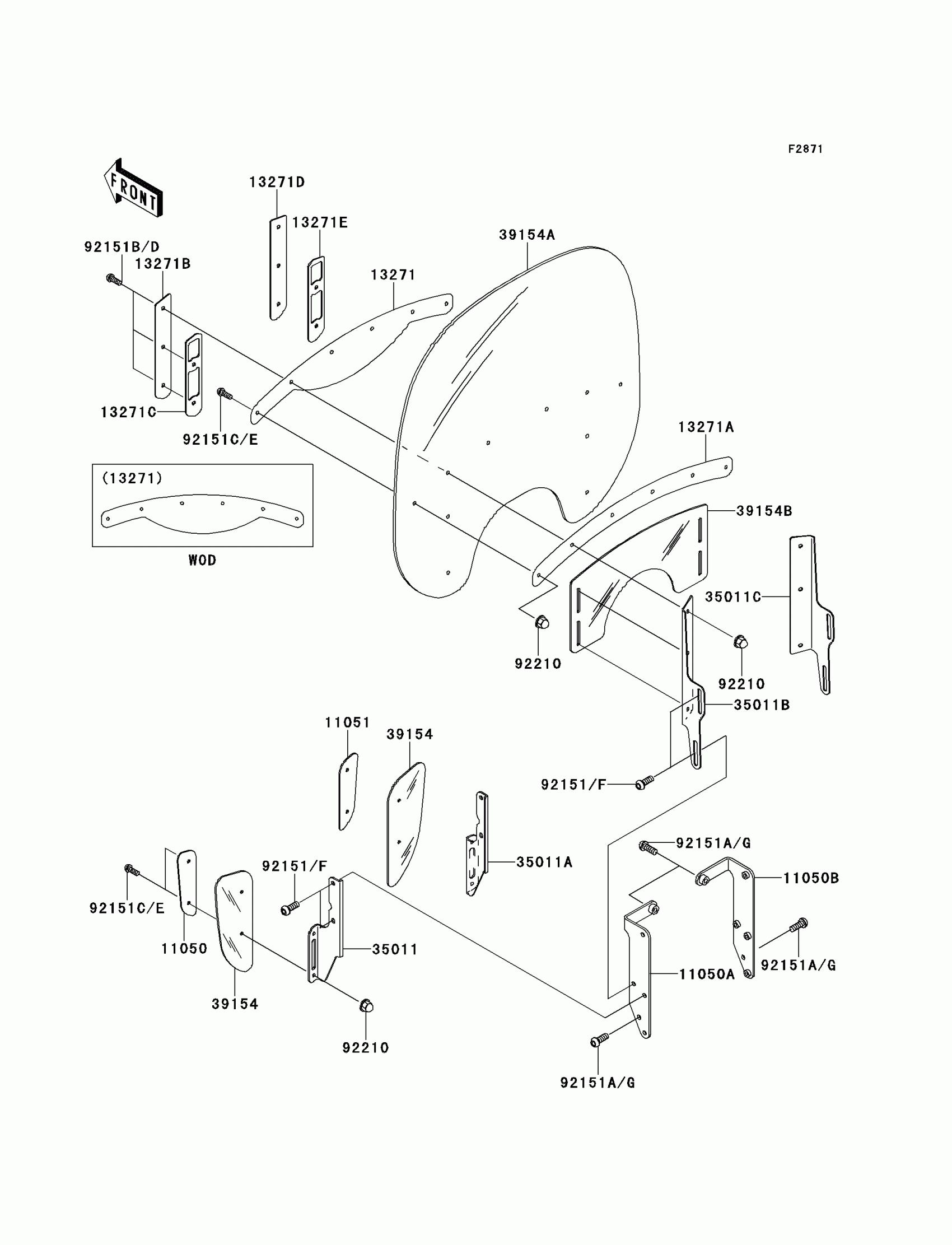

2001 Kawasaki Vulcan 1500 Nomad Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11050

BRACKET,DEFLECTOR,LH

11050-1750

1
Out of stock

11050A

BRACKET,WINDSHIELD,LH

11050-1891

1
Out of stock

11050B

BRACKET,WINDSHIELD,RH

11050-1892

1
Out of stock

11051

BRACKET,DEFLECTOR,RH

11051-1061

1
Out of stock

13271

PLATE,WINDSHIELD,CNT,OUTER

13271-1089

1
Out of stock

13271A

PLATE,WINDSHIELD,CNT,INNER

13271-1090

1
Out of stock

13271B

PLATE,WINDSHIELD,LH,OUTER

13271-1093

1
Out of stock

13271C

PLATE,WINDSHIELD,LH,INNER

13271-1094

1
Out of stock

13271D

PLATE,WINDSHIELD,RH,OUTER

13271-1095

1
Out of stock

13271E

PLATE,WINDSHIELD,RH,INNER

13271-1096

1
Out of stock

35011

STAY,DEFLECTOR,LH

35011-1916

1
Out of stock

35011A

STAY,DEFLECTOR,RH

35011-1917

1
Out of stock

35011B

STAY,WINDSHIELD,LH

35011-1944

1
Out of stock

35011C

STAY,WINDSHIELD,RH

35011-1945

1
Out of stock

39154

WINDSHIELD,DEFLECTOR

39154-1139

1
Out of stock

39154A

WINDSHIELD,MAIN

39154-1141

1
Out of stock

39154B

WINDSHIELD,SUB

39154-1142

1
Out of stock

92151D

BOLT,SOCKET,6X20

92151-1750

1
Out of stock

92151E

BOLT,SOCKET,6X16

92151-1751

1
Out of stock

92151F

BOLT,SOCKET,8X16

92151-1752

1
Out of stock

92151G

BOLT,SOCKET,8X25

92151-1753

1
Out of stock

92210

NUT,CAP,6MM

92210-1129

1
Out of stock
