2001 Kawasaki Vulcan 1500 Nomad Ignition System Diagram

← All diagrams

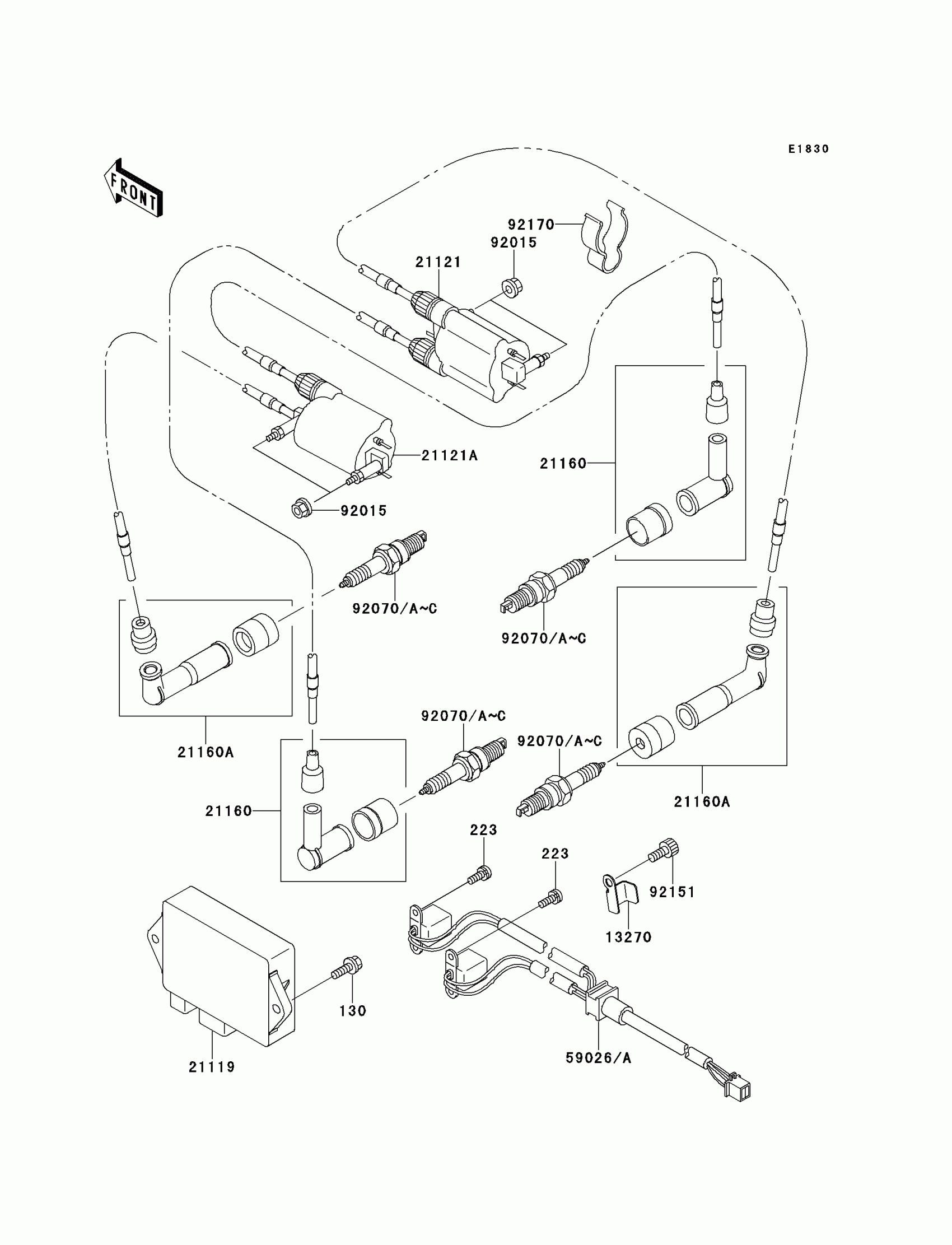

Find the part on the Ignition System diagram for your 2001 Kawasaki Vulcan 1500 Nomad, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Kawasaki Vulcan 1500 Nomad Ignition System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED

130H0620

1
Out of stock

223

SCREW-PAN-WS-CROS,5X16

223B0516

1
Out of stock

13270

PLATE

13270-1979

1
Out of stock

21119

IGNITER

21119-1515

1

$618.63

In stock

21121

COIL-IGNITION,RR

21121-1288

1
Out of stock

21121A

COIL-IGNITION,FR

21121-1289

1

$157.05

In stock

21160

CAP-ASSY-PLUG

21160-1085

1

$27.25

In stock

21160A

CAP-ASSY-PLUG

21160-1091

1

$28.66

In stock

59026A

COIL-PULSING

59026-1157

1
Out of stock

92015

NUT,CAP,6MM,BLACK

92015-1170

1
Out of stock

92070

—

$2.92

In stock

92070A

Not Available As Spare Part - Friction Washer

—
Out of stock

92070B

1

$7.39

In stock

92070C

Not Available As Spare Part - Friction Washer

1
Out of stock

92151

BOLT,6X10

92151-3704

1

$3.49

In stock

92170

CLAMP,HOSE

92170-1930

1

$9.56

In stock
