2000 Kawasaki Vulcan 1500 Nomad Ignition Switch/locks/reflectors Diagram

← All diagrams

Find the part on the Ignition Switch/locks/reflectors diagram for your 2000 Kawasaki Vulcan 1500 Nomad, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

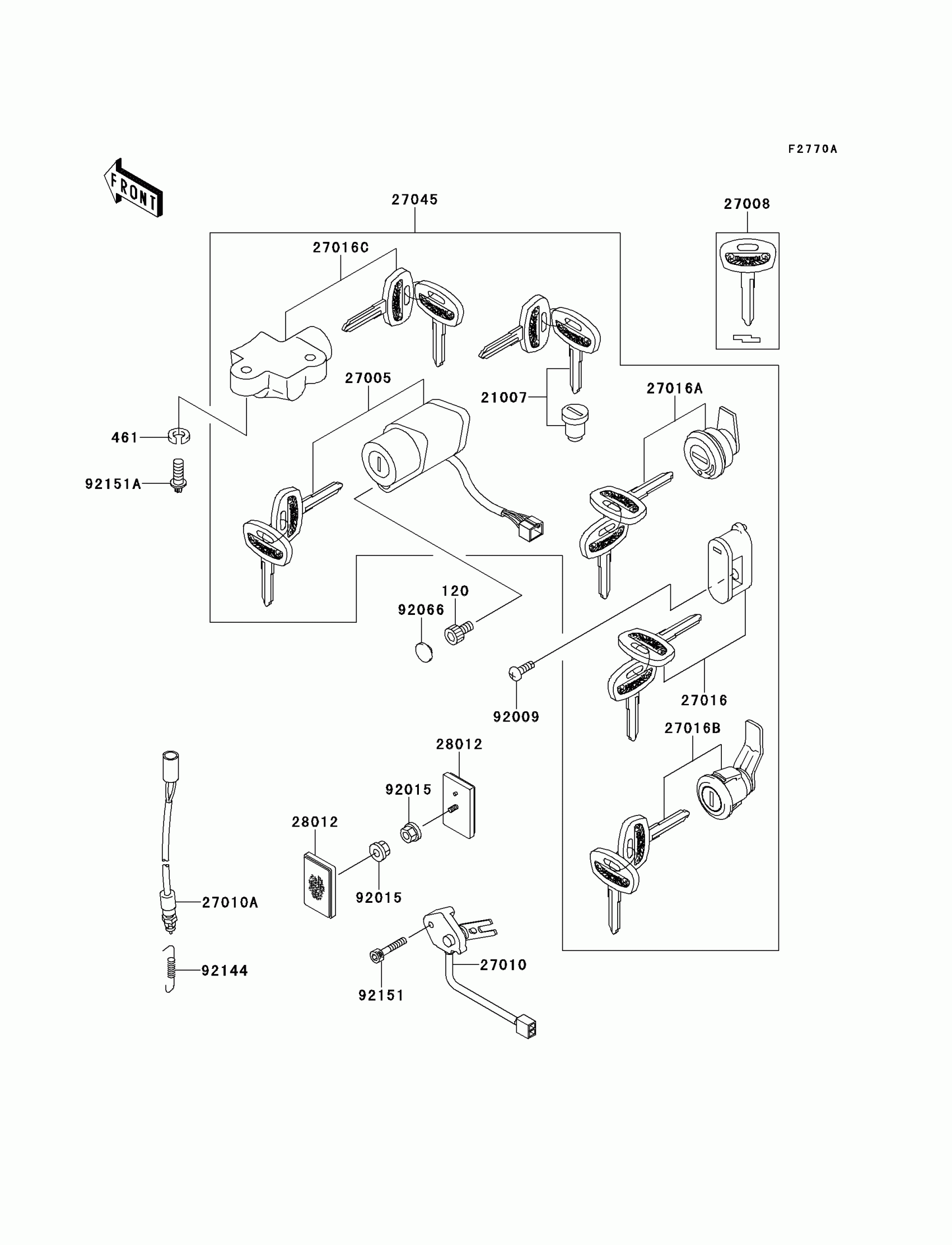

2000 Kawasaki Vulcan 1500 Nomad Ignition Switch/locks/reflectors Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET

120P0512

1
Out of stock

11012

CAP,STEERING LOCK

11012-1586

1
Out of stock

21007

ROTOR,LOCK,TANK CAP

21007-5041

1
Out of stock

27005

SWITCH-ASSY-IGNITION

27005-1215

1
Out of stock

27008

KEY-LOCK,BLANK,#A

27008-1179

1
Out of stock

27008A

KEY-LOCK,BLANK,#B

27008-1180

1
Out of stock

27010

SWITCH,SIDE STAND

27010-1359

1
Out of stock

27010A

SWITCH,REAR BRAKE

27010-1412

1
Out of stock

27016

LOCK-ASSY,HELMET

27016-5243

1
Out of stock

27016A

LOCK-ASSY,LID

27016-5244

1
Out of stock

27016B

LOCK-ASSY,SIDE BAG

27016-5245

1
Out of stock

27016C

LOCK-ASSY,STEERING

27016-5246

1
Out of stock

27045

SWITCH-ASSY

27045-5064

1
Out of stock

28012

REFLECTOR-REFLEX,FR

28012-1009

1
Out of stock

92008

SCREW,3.51MM

92008-007

1
Out of stock

92009

SCREW,5X12

92009-1296

1
Out of stock

92015

NUT,FLANGED,5MM

92015-1656

1
Out of stock

92066

PLUG

92066-1435

1
Out of stock

92097

WASHER,WAVE

92097-003

1
Out of stock

92144

SPRING,REAR BRAKE SWITCH

92144-1141

1
Out of stock

92144A

SPRING,STEERING LOCK

92144-1222

1
Out of stock

92151

BOLT,SOCKET,6X35

92151-1390

1
Out of stock
