1997 Kawasaki Vulcan 1500 Classic Radiator Diagram

← All diagrams

Find the part on the Radiator diagram for your 1997 Kawasaki Vulcan 1500 Classic, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

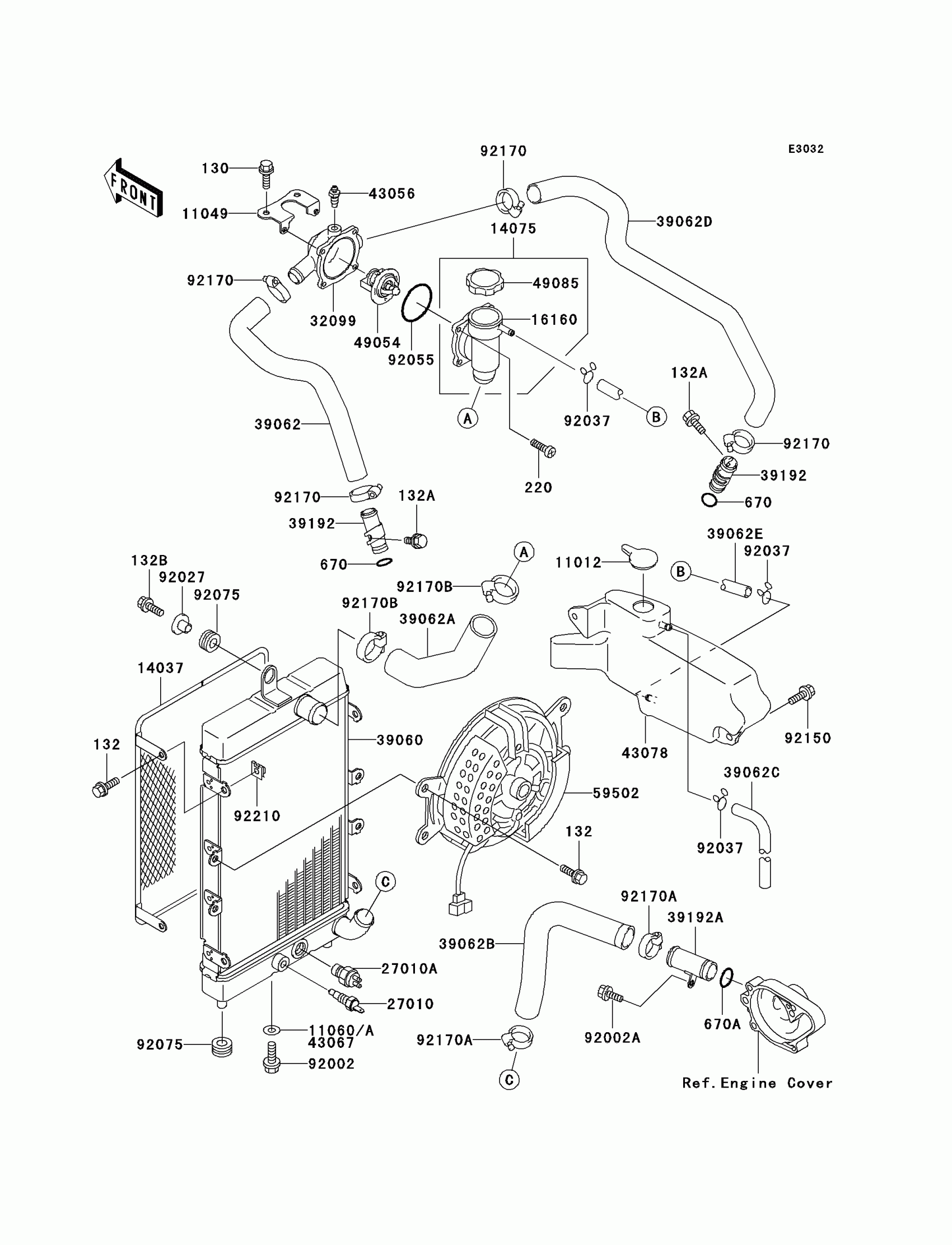

1997 Kawasaki Vulcan 1500 Classic Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X12

130J0612

1
Out of stock

132

BOLT-FLANGED-SMALL,6X10

132J0610

1
Out of stock

11012

CAP

11012-1585

1

$7.73

In stock

11049

BRACKET,THERMOSTAT CASE

11049-1541

1
Out of stock

11060

GASKET,DRAIN PLUG

11060-1767

1

$2.53

In stock

14037

SCREEN,RADIATOR

14037-1226

1
Out of stock

14075

CAP-ASSY

14075-1068

1

$174.32

In stock

16160

BODY,THERMOSTAT,UPP

16160-1116

1

$174.32

In stock

27010

SWITCH,WARNING

27010-1305

1

$85.57

In stock

27010A

SWITCH,FAN

27010-1364

1

$143.52

In stock

32099

CASE,THERMOSTAT

32099-1093

1
Out of stock

39060

RADIATOR

39060-1146

1
Out of stock

39062

HOSE-COOLING,HEAD,FR-THERMO

39062-1681

1
Out of stock

39062A

1

$36.36

In stock

39062B

1

$27.60

In stock

39062C

1

$21.07

In stock

39062D

HOSE-COOLING,HEAD RR-THERMO

39062-1777

1
Out of stock

39062E

1

$17.31

In stock

39192

PIPE-WATER

39192-1094

1

$22.69

In stock

39192A

PIPE-WATER

39192-1096

1

$28.75

In stock

43056

BREATHER

43056-003

1

$22.74

In stock

43078

RESERVOIR

43078-1153

1
Out of stock

49054

THERMOSTAT

49054-1067

1
Out of stock

49085

CAP-ASSY-PRESSURE

49085-1067

1

$48.74

In stock

59502

FAN-ASSY,RADIATOR

59502-1115

1

$688.76

In stock

92002

BOLT,FLANGED,10X10

92002-1311

1

$5.59

In stock

92002A

BOLT,6X12

92002-1569

1
Out of stock

92027

COLLAR,L=13.1,BLACK

92027-1450

1

$4.93

In stock

92037

CLAMP,TUBE

92037-147

1

$5.84

In stock

92055

RING-O,53.5X2.6

92055-112

1

$5.25

In stock

92075

DAMPER,10X24X12

92075-1690

1

$3.97

In stock

92150

1

$3.81

In stock

92170

CLAMP,COOLING HOSE

92170-1032

1

$24.03

In stock

92170A

CLAMP,COOLING HOSE

92170-1034

1

$19.44

In stock

92170B

CLAMP,COOLING HOSE

92170-1284

1

$6.51

In stock

92210

NUT

92210-1125

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X12

132J0612

1
Out of stock

132B

BOLT-FLANGED-SMALL,6X25

132J0625

1
Out of stock

220

SCREW-PAN-CROS,5X14

220D0514

1
Out of stock

670

O RING,14MM

670B2014

1

$1.08

In stock

670A

O RING,18MM

670B2018

1

$1.25

In stock
