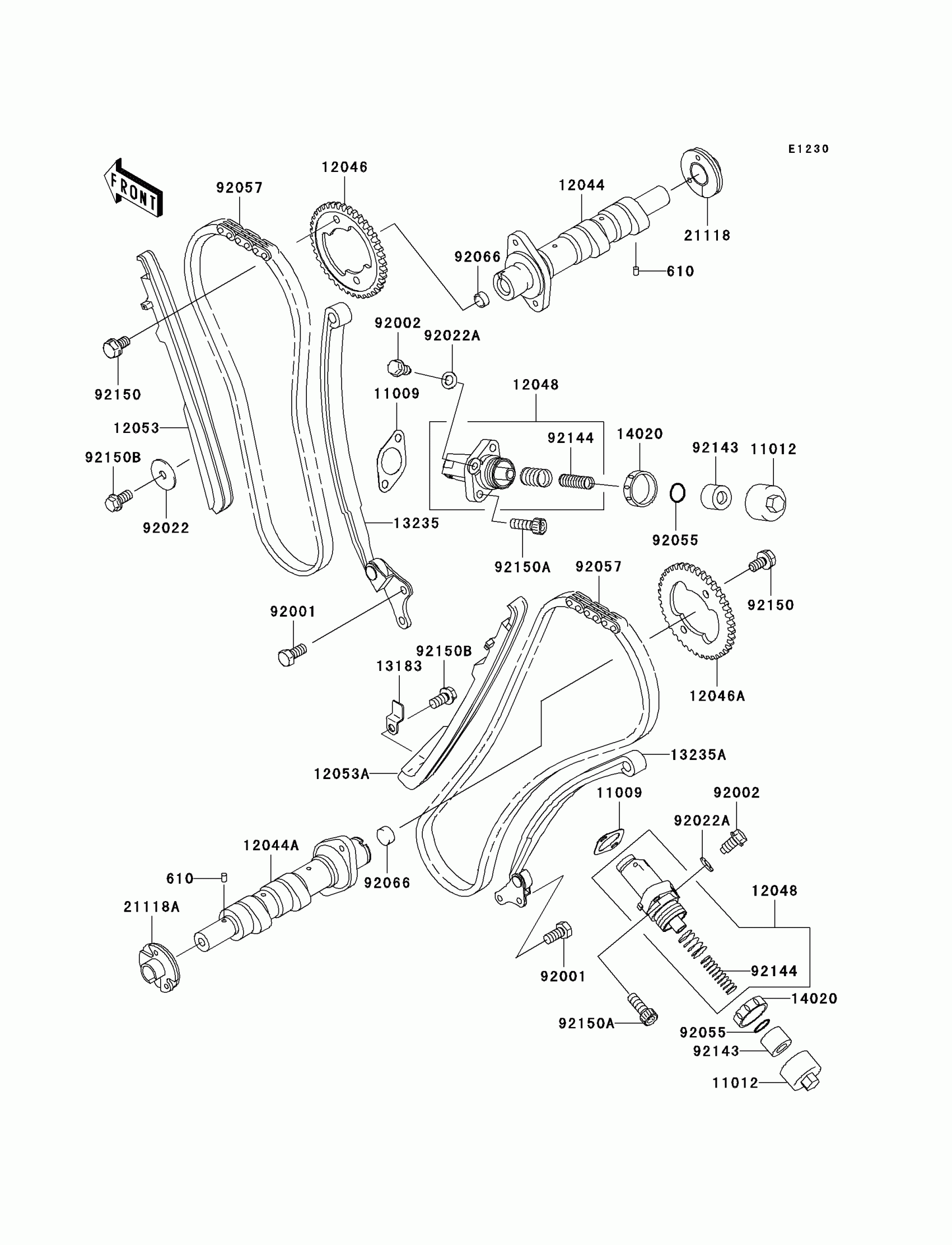

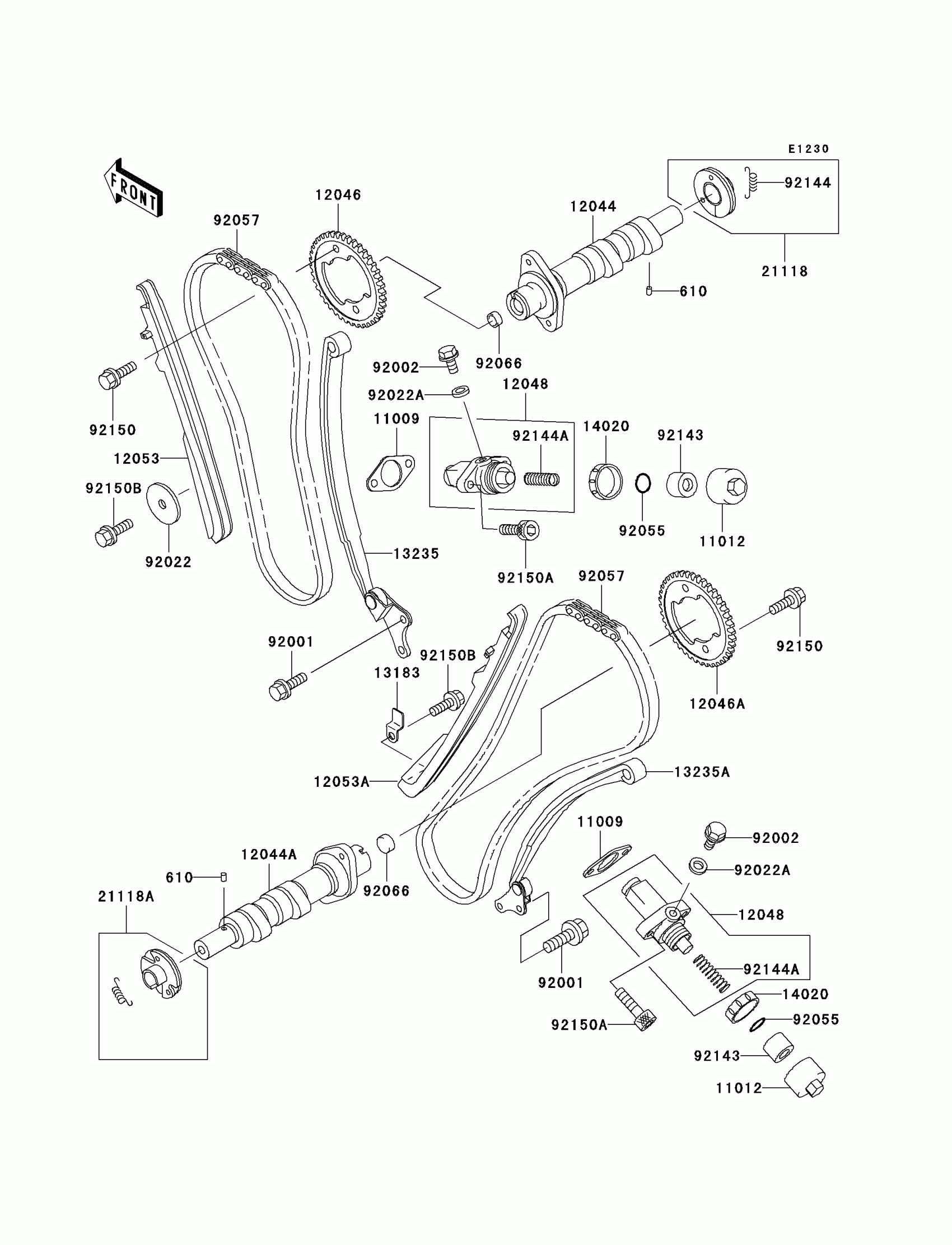

Kawasaki Vulcan 1500 Classic Camshaft(s)/Tensioner Diagram

Description

Price

610

ROLLER,4X6

610A0406

$3.29

11009

GASKET,TENSIONER

11009-1858

$3.52

11012

CAP,TENSIONER

11012-1959

$40.68

12044

CAMSHAFT-VALVE,FR

12044-1394

$499.98

12044A

CAMSHAFT-VALVE,RR

12044-1395

$473.36

12046

SPROCKET,CAMSHAFT,FR,46T

12046-1175

$60.29

12046A

SPROCKET,CAMSHAFT,RR,46T

12046-1176

$60.29

12048

TENSIONER-ASSY

12048-1160

$132.74

12053

GUIDE-CHAIN,FR,TENSIONER

12053-1219

$56.73

12053A

GUIDE-CHAIN,RR,TENSIONER

12053-1221

$56.73

13183

PLATE

13183-1096

$5.24

13235

GUIDE-COMP,FR

13235-1070

$98.24

13235A

GUIDE-COMP,RR

13235-1071

Unavailable

14020

RETAINER,TENSIONER

14020-1054

$18.34

21118

DECOMPRESSOR,FR

21118-1061

$175.53

21118A

DECOMPRESSOR,RR

21118-1083

$171.59

92001

BOLT,6X16

92001-1457

$4.42

92002

BOLT,FLANGED,6X9.5

92002-1356

$5.64

92022

WASHER,7X27X1.6

92022-227

$3.57

92022A

WASHER,6.2X11X1

92022-304

$2.76

92055

RING-O,23.3X1.9

92055-1555

$1.96

92057

CHAIN,CAM,92RH2010

92057-1422

$102.29

92066

PLUG

92066-1198

$4.14

92143

COLLAR,TENSIONER

92143-1836

$16.42

92144

SPRING,DECOMPRESSOR

92144-1209

$5.61

92144A

SPRING,TENSIONER

92144-1921

$8.07

92150

BOLT,FLANGED,6X11

92150-1725

$4.42

92150A

BOLT,SOCKET,6X20

92150-1795

$4.92

92150B

BOLT,6X12

92150-1868

$2.66
