1997 Kawasaki Vulcan 1500 Classic Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 1997 Kawasaki Vulcan 1500 Classic, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

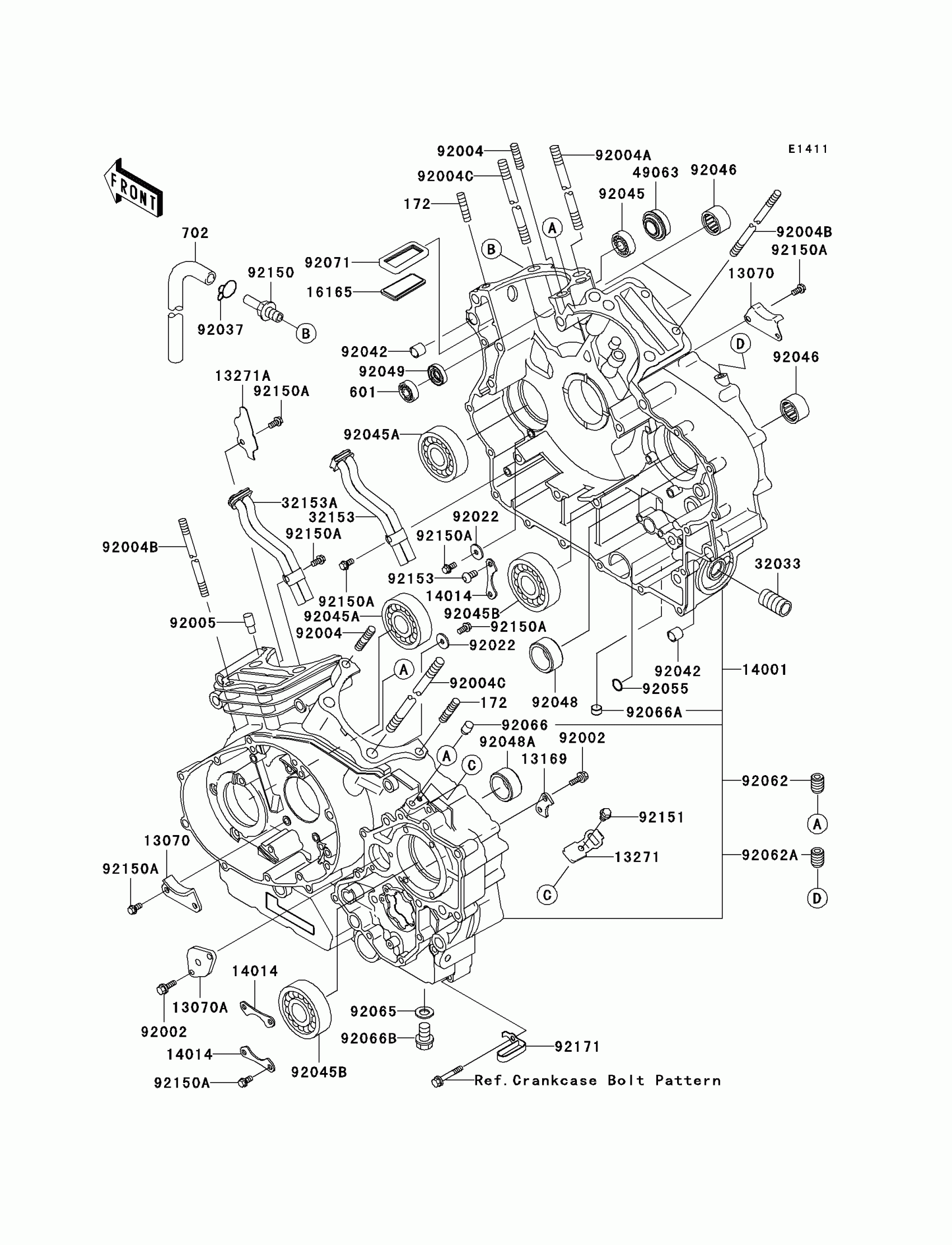

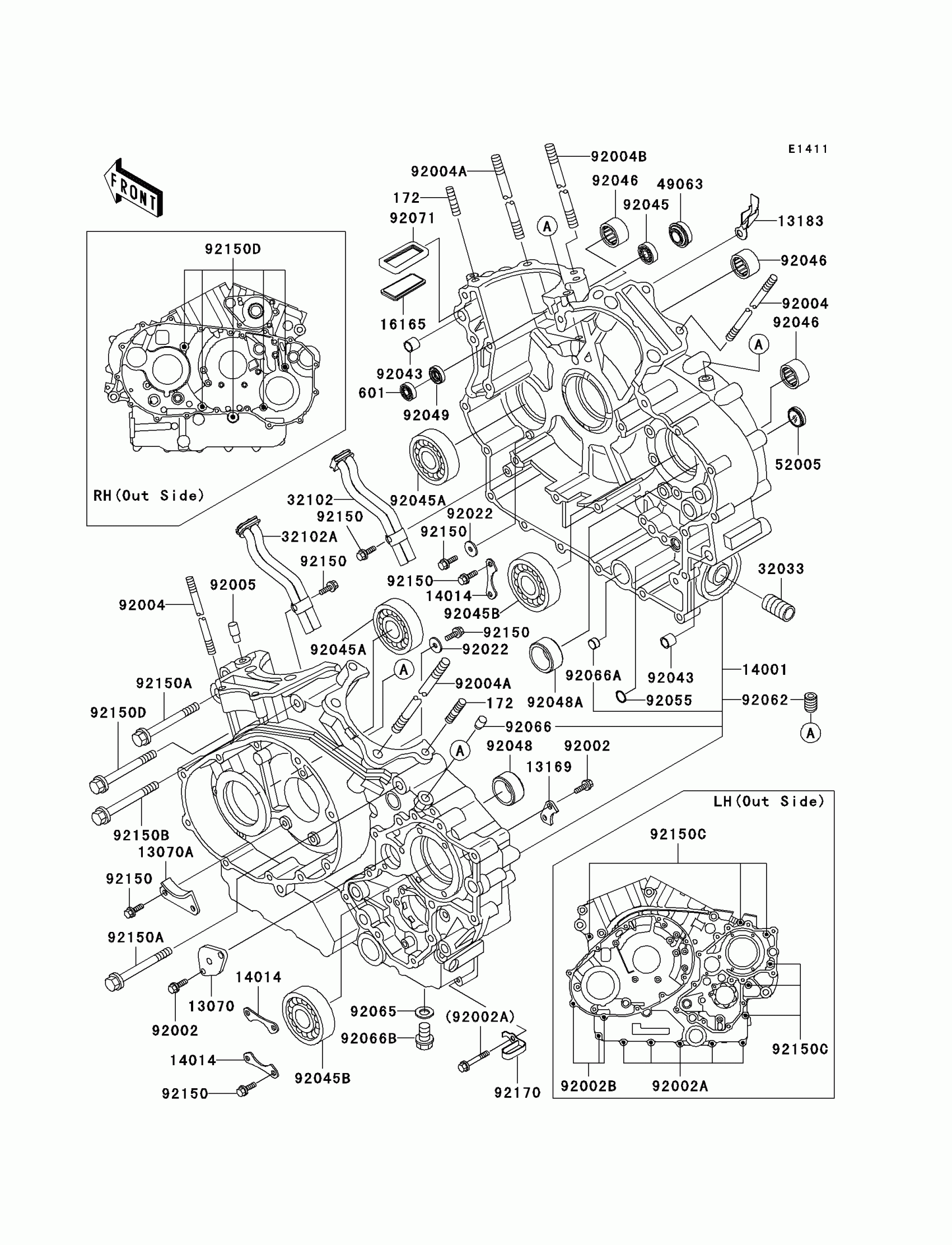

1997 Kawasaki Vulcan 1500 Classic Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13070

GUIDE,PUSH ROD

13070-1167

1

$24.37

In stock

13070A

GUIDE,CAM CHAIN

13070-1168

1

$4.98

In stock

13169

1

$4.90

In stock

13183

PLATE

13183-1145

1
Out of stock

14001

SET-CRANKCASE

14001-5351

1
Out of stock

14014

PLATE-POSITION

14014-1084

1
Out of stock

16165

SEPARATOR

16165-1058

1

$31.98

In stock

32033

PIPE,OIL FILTER

32033-1535

1

$10.27

In stock

32102

PIPE

32102-1407

1
Out of stock

32102A

PIPE

32102-1708

1

$45.94

In stock

49063

SEAL-MECHANICAL

49063-1052

1

$44.44

In stock

52005

GAUGE,OIL LEVEL

52005-1009

1

$14.45

In stock

92002

BOLT,6X16

92002-1439

1

$3.72

In stock

92002A

BOLT,FLANGED-SMALL,6X40

92002-1566

1
Out of stock

92002B

BOLT,FLANGED,6X80

92002-1568

1
Out of stock

92004

STUD,8X231

92004-1174

1
Out of stock

92004A

STUD,12X250

92004-1225

1
Out of stock

92004B

STUD,12X250

92004-1240

1
Out of stock

92005

FITTING

92005-1155

1
Out of stock

92022

WASHER,6X19.5X2

92022-1517

1

$1.90

In stock

92043

PIN,11X14X12.3

92043-1266

1

$1.00

In stock

92045

1

$24.30

In stock

92045A

BEARING-BALL,63/28

92045-1189

1

$48.89

In stock

92045B

1

$37.16

In stock

92046

BEARING-NEEDLE,HK1212

92046-1163

1
Out of stock

92048

RACE

92048-1069

1
Out of stock

92048A

RACE

92048-1070

1
Out of stock

92049

SEAL-OIL,SC 12X22X5

92049-1228

1
Out of stock

92055

RING-O,13.2X2.4

92055-1373

1

$3.74

In stock

92062

NOZZLE,6X8,GREEN

92062-1078

1

$4.17

In stock

92065

GASKET,12X22X2

92065-097

1

$0.76

In stock

92066

PLUG,OIL LINE,7.2X8

92066-1012

1

$5.66

In stock

92066A

PLUG

92066-1110

1

$5.66

In stock

92066B

1

$4.88

In stock

92071

GROMMET,SEPARATOR

92071-1153

1

$8.83

In stock

92150

BOLT,6X12

92150-1868

1

$2.66

In stock

92150A

BOLT,10X105

92150-1993

1

$11.86

In stock

92150B

BOLT,10X115

92150-1994

1

$13.00

In stock

92150C

BOLT,6X70

92150-1995

1
Out of stock

92150D

BOLT,8X90

92150-1996

1

$5.00

In stock

172

BOLT-STUD,8X25

172G0825

1

$2.56

In stock

601

BEARING-BALL

601A6001

1

$9.26

In stock

92170

CLAMP

92170-1691

1
Out of stock
